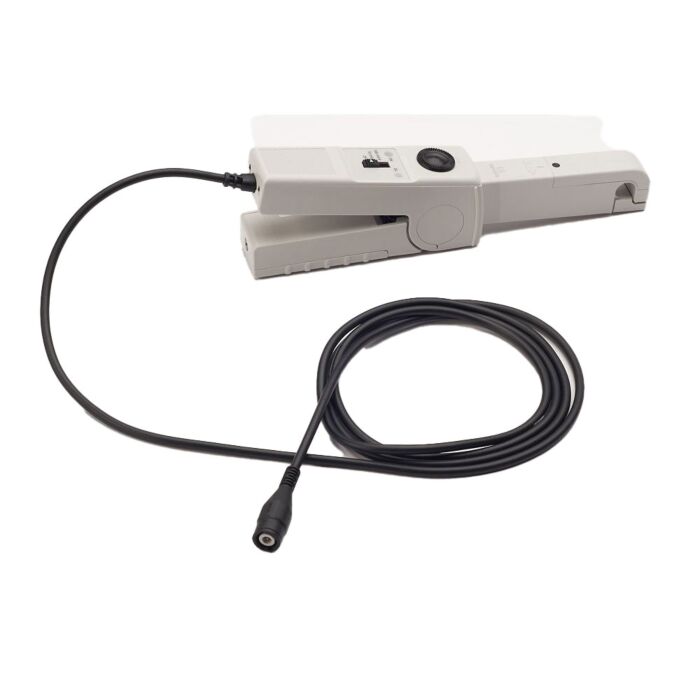

Keysight / Agilent 1146A for Rent, Current Probe, 100 kHz, 100A, AC/DC
Current Probe, 100 kHz, 100A, AC/DC

Order #: 1146A-RENT3

Mfg #: 1146A

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Keysight / Agilent 1146A for Rent, Current Probe, 100 kHz, 100A, AC/DC

Current Probe, 100 kHz, 100A, AC/DC

Order #: 1146A-RENT3

Mfg #: 1146A

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price

Product Highlights

This AC/DC current probe provides accurate display and measurement of currents from 100 mA to 100 A rms, dc to 100 kHz, without breaking the circuit. The Keysight 1146A uses Hall-effect technology to measure ac and dc signals. It is compatible with all Keysight oscilloscopes and any scope with 0.2 to 0.5 V/div sensitivity, a minimum input impedance of 1 MΩ and a BNC input.

Compatible with the 1000, 3000, 5000, 6000, 7000, 8000, 9000, 80000 (with E2697A) and 90000 (with E2697A) Series oscilloscopes.

Features

  • Frequency range: DC to 100 kHz (-3dB with current derating)
  • Current range:
    • 100 mV/A: 100 mA to 10 A peak
    • 10 mV/A: 1 to 100 A peak
  • AC current accuracy:
    • 100 mV/A (50 mV to 10 A peak) - 3% of reading ≥50 mA
    • 10 mV/A (500 mA to 40 A peak) - 4% of reading ≥50 mA
    • 10 mV/A (40 A to 100 A peak) - 15% max at 100 A
  • Working voltage: 600 V max
  • Battery: 9 V alkaline
