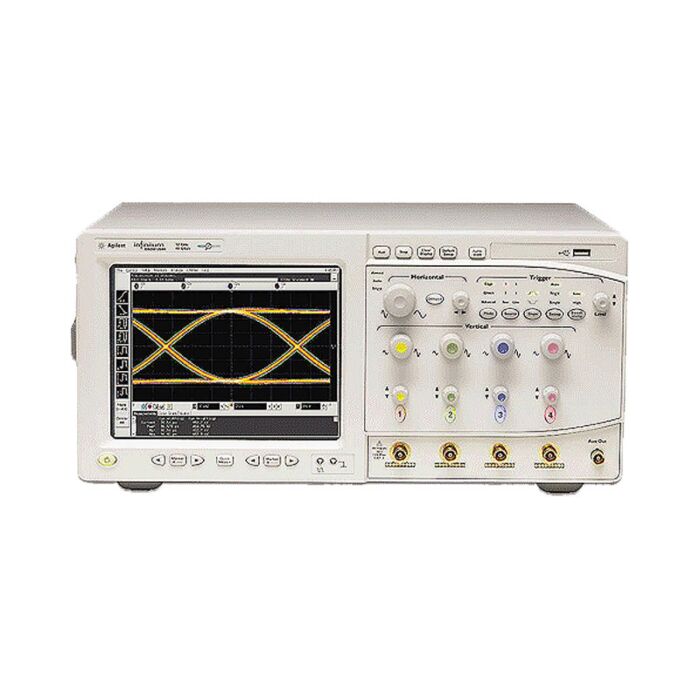

Rent Keysight Agilent DSO80304B Infiniium Digital Oscilloscope, 3GHz, 20/40GSa/s, 4 channel

Product Highlights

3-GHz Bandwidth, upgradeable to 13 GHz

• 4 analog channels
• Up to 40 GSa/s sample rate
• Standard 512 kpts memory with optional 2 Mpts memory (64 Mpts at 4 GSa/s)
• XGA display with 256 levels of intensity grading

Industry Leading Signal Integrity

• Noise floor: 161 uV @5 mV/div
• Trigger jitter < 1 ps (rms)
• Lowest hardware vertical sensitivity: 5 mV/div
• Industry's only noise reduction option (opt 005)

Largest Selection of Application Solutions

• Complete set of jitter analysis
• Complete set of customization packages including User Defined Functions, link to MatLab®
• Compliance solutions for many serial standards like USB 2.0, Ethernet families, DDR2 and more Compliance solutions

InfiniiMax Probing Solutions (1.5 GHz - 12 GHz)

• Industry's lowest noise floor probing system
• Highest signal fidelity InfiniiMax II probing system
• Interchangeable probe heads
• Industry's only RoHS compliance solder-in probing solution

Superior signal integrity and probing for your application". Keysight Technologies' Infiniium 80000B Series and InfiniiMax II probing system will lead to improved measurements and increased design margins. The signal integrity advantages of Keysight's Infiniium 80000B Series Scopes and InfiniiMax Probing System include the industry's lowest noise floor, lowest jitter measurement floor, lowest trigger jitter, flattest combined frequency response of scope and probe and more. Superior signal integrity maximizes engineer's design margins by not wasting any measurement accuracy due to the poor noise, jitter or frequency response of the scope or probing system.

• 3 GHz bandwidth real-time oscilloscope with up to 40 GSa/s sample rate
• Up to 2 Mpts MegaZoom deep memory at 40 GSa/s sample rates and 64 Mpts MegaZoom deep memory at 4 GSa/s, after-purchase memory upgrade available - Standard with DSA80000B
• System bandwidth of 3 GHz with InfiniiMax 1131A probing system
• Industry's lowest noise floor: 161 uV @ 5 mV/div
• Trigger jitter less than 500 fs rms
• Industry's largest sets of software applications
• XGA touch screen display with 256 level intensity grading
• Fully upgradeable bandwidth
• Unrivaled InfiniiMax probing accessories support browsing, solder-in, socketed, and SMA use models
