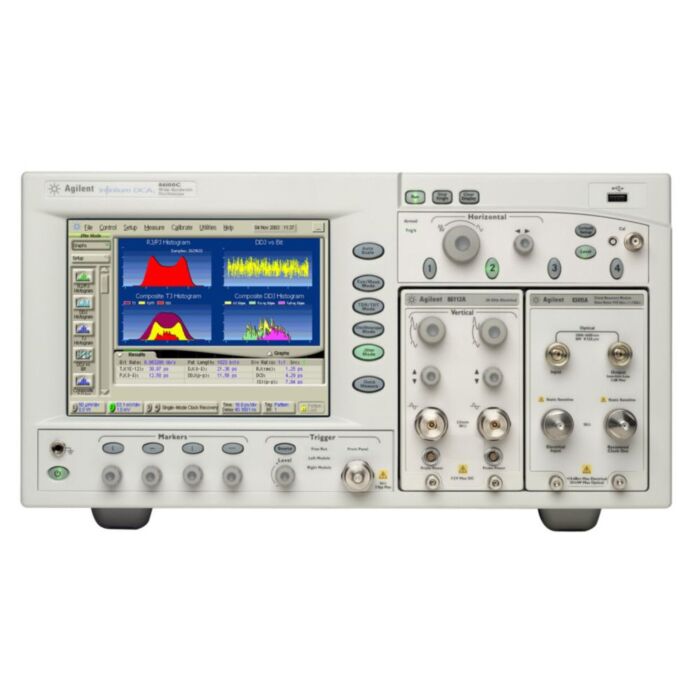

Keysight 86100C for Rent, Infiniium DCA-J Wideband Oscilloscope Mainframe

Product Highlights

86100C Digital Communications Analyzer modes:

• Oscilloscope with bandwidth in excess of 80 GHz, ensuring the most accurate waveform measurements
• Eye diagram analyzer for both optical and electrical transmitter compliance testing to >40 Gb/s
• Jitter and interference analyzer, measuring subcomponent jitter
• Time domain reflectometry/transmission (TDR/TDT) for high precision impedance analysis including S-parameters

Key features

• User configurable: mainframe with slots for two modules (4 optical or electrical channels)
• Trigger bandwidth up to > 13 GHz (option 001)
• Clock recovery with adjustable loop bandwidth (see 83496B)
• Integration with MATLAB signal filtering and measurement automation software available

Backward compatible with:

• All modules from the 54750A High-Bandwidth Digitizing Oscilloscope family
• All modules from the 83480A Digital Communications Analyzer family
• All modules from the 86100A/B Digital Communications Analyzer

Description

The most comprehensive multi-function analyzer for high-speed electrical and optical signals

The 86100C Infiniium DCA-J combines extremely high accuracy and repeatability with outstanding ease of use to simplify characterizing signals from 50 MHz to 80 GHz. Digital designers can combine the mainframe and modules into four key instruments with industry leading signal integrity performance, including:

• A full-function oscilloscope with bandwidth in excess of 80 GHz, ensuring the most accurate waveform measurements
• A digital communications analyzer with automated eye diagram analysis for transmitter compliance testing
• The industry's most accurate jitter and interference analyzer, measuring subcomponent jitter sources with one-button ease of use
• A full-function time domain reflectometer (TDR/TDT) for high precision impedance and S-parameter analysis

Advanced Analysis Features:

Advanced Jitter Analysis

• Decomposition of jitter into Total Jitter (TJ), Random Jitter (RJ), Deterministic Jitter (DJ), Periodic Jitter (PJ), Data Dependent Jitter (DDJ), Duty Cycle Distortion (DCD), and Jitter induced by Intersymbol Interference (ISI)
• Jitter frequency spectrum
• Isolation and analysis of Sub-Rate Jitter (SRJ), that is, periodic jitter that is at an integer sub-rate of the bitrate
• Jitter spectrum/phase noise for both clock or data signals (requires 83496B Clock Recovery)
• Decomposition of interference into Total Interference (TI), Random Noise (RN), Deterministic Interference, Periodic Interference (PI), and Inter-symbol Interference (ISI)

Advanced Amplitude Analysis

• Tabular and graphical results for both one and zero levels
• Interference frequency spectrum
• Q-factor (isolated from deterministic interference)
• Relative Intensity Noise (RIN 1 Level, RIN OMA)

Advanced Waveform Analysis

• Accurately capture long waveforms (up to 2²³ bits) with or without averaging
• Samples/waveform limited only by size of hard disk or memory stick
• Oscilloscope measurements on equalized waveforms with built-in Linear Feedforward Equalization (LFE) tool
• MATLAB^® interface allows instant processing of oscilloscope data:
  • Observe and characterize the output waveforms of any LFE, Decision Feedback Equalizer (DFE) or other algorithm
  • Calculate and display figures of merit or penalty using proprietary or published scripts, such as Transmitter Waveform Dispersion Penalty (TWDP)

Advanced TDR Analysis (Frequency-Domain S-Parameters)

• On-board S-parameters for differential or single-ended characterization
• One port or two port devices (single-ended or differential)
• Measure to current and new standards

Application Solutions

• HDMI Connectivity Solutions
• SATA Connectivity Solutions
