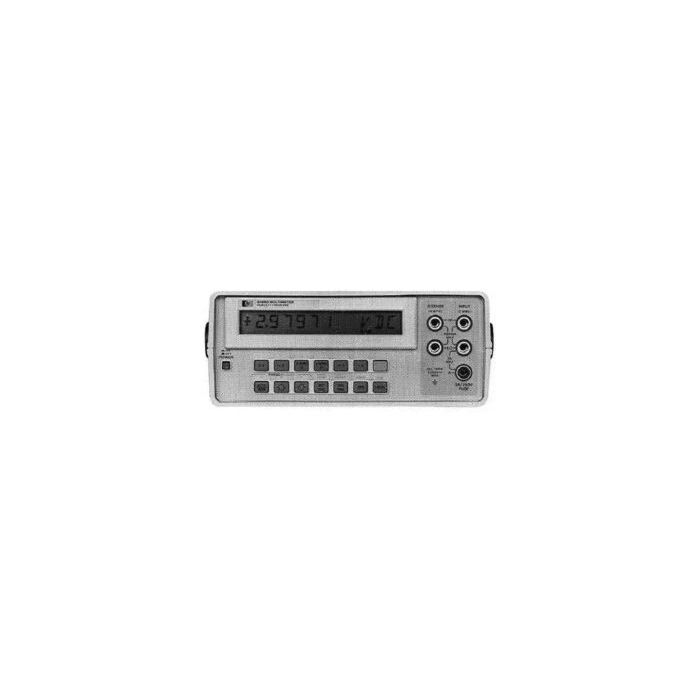

Keysight 3468A for Rent, Autoranging Digital Multimeter, 5.5 Digit, DC Volts

Keysight 3468A Highlights

The 3468A measures DC and AC volts, DC and AC current, and 2-wire and 4-wire ohms. Features: dc and true rms ac voltage measurements are provided from 0. 3 V full scale range with 1 µv sensitivity up to 300 V. Bandwidth of the true rms ac converter is from 20 Hz to 100 kHz on all ranges and up to 300 kHz on the 30 V range.

• Measurements: DCV, ACV (TRMS), DCA, ACA (TRMS), Resistance (2‑wire, 4‑wire)
• DC voltage
  • DCV range: 0.3 V to 300 V
  • Accuracy: 0.0035% (5½ digit mode, 3 V range, 24 hours)
  • Minimum input voltage: Hi to Lo, 301 Vrms or 450 Vpeak
• Resistance range: 300 Ω to 30 MΩ
• AC voltage
  • Range: 0.3 V to 300 V
  • Input impedance: 1 MΩ ±1% shunted by <60 pF
  • Minimum input voltage: Hi to Lo, 301 Vrms or 450 Vpeak
  • Crest factor: >4:1 at full scale
  • Common mode rejection: >70 dB, dc to 60 Hz, with 1 kΩ imbalance in Lo lead
• DC current
  • Range: 3 A
  • Maximum input: 3 A from <250 V source, fuse protected
  • Maximum burden at full scale: 1 V
• AC current
  • Range: 0.3 A to 3 A
  • Maximum input: 3 A from <250 V source, fuse protected
  • Maximum burden at full scale: 1 V
  • Crest factor: >4:1 at full scale
