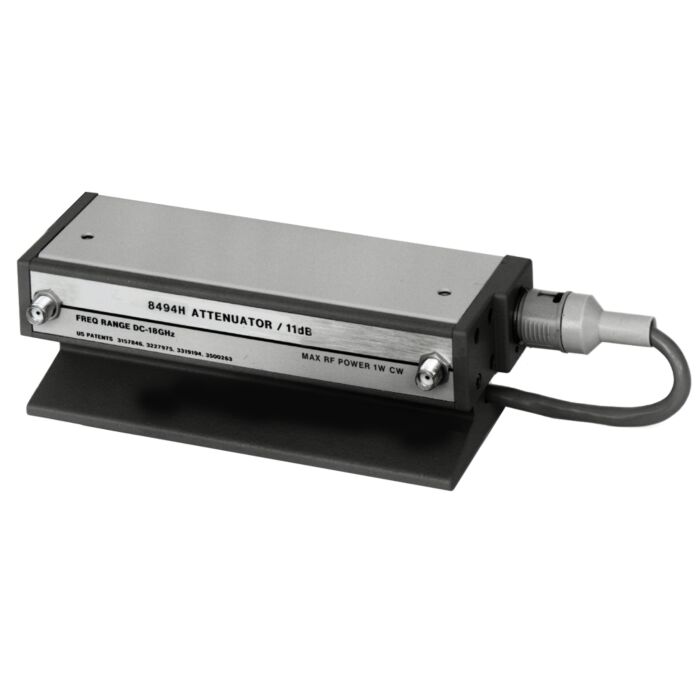

Keysight 8494H Programmable Attenuator, 18GHz, 11dB, 1dB Steps
Programmable Attenuator,18GHz 11dB,1dB Steps
Order #: 8494H
Mfg #: 8494H
$4,125.00
Keysight 8494H Programmable Attenuator, 18GHz, 11dB, 1dB Steps
Programmable Attenuator,18GHz 11dB,1dB Steps
Order #: 8494H
Mfg #: 8494H
$4,125.00
Availability: Ships in 3-4 weeks
This item is available as RENTAL at
Call for price
Shop now
Product Highlights
- Frequency range: dc to 18 GHz
- Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz
- Maximum SWR: 1.5 to 8 GHz, 1.6 to 12.4 GHz, 1.9 to 18 GHz
- Repeatability life: 0.03 dB max 5 million cycles per section, typical
- 5 million cycles per section
- Maximum RF input power: 1 W (average), 100 W (peak)
- Connector type: choice of Type-N female, SMA female, APC-7
- Programming connector: 12-pin Viking, optional 14-pin DIP
