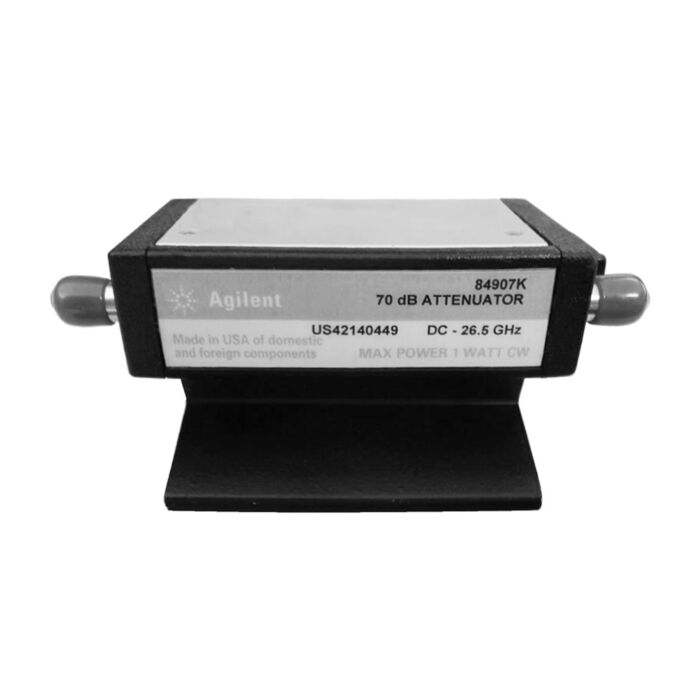

Keysight 84907K Programmable Step Attenuator, 26.5GHz, 70dB, 10dB Steps
Programmable Step Attenuator 26.5GHz,70dB,10dB Steps
Order #: 84907K
Mfg #: 84907K
$5,776.00
Keysight 84907K Programmable Step Attenuator, 26.5GHz, 70dB, 10dB Steps
Programmable Step Attenuator 26.5GHz,70dB,10dB Steps
Order #: 84907K
Mfg #: 84907K
$5,776.00
Availability: Ships in 4-6 weeks
Product Highlights
- Frequency range: dc to 26.5 GHz
- Attenuation range: 0 to 70 dB, 10 dB steps
- Insertion loss at 0 dB: 0.6 dB + 0.03 dB/GHz
- Maximum SWR: 1.25 to 12.4 GHz, 1.5 to 26.5 GHz
- Repeatability life: 0.03 dB maximum, 5 million cycles per section
- Maximum RF input power: 1 W (average), 100 W (peak)
- Connector type: choice of 3.5 mm female, 3.5 mm male/female
- Programming connector: 10-pin sockets
