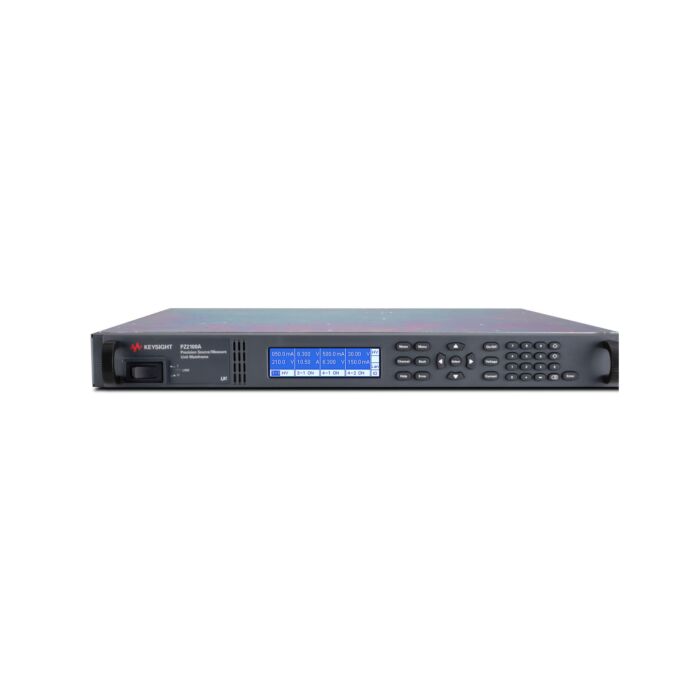

Keysight PZ2100A Precision Source/Measure Unit Mainframe, 4 slots, 1U

Product Highlights

The Keysight PZ2100A is the precision source / measure unit (SMU) mainframe that uncompromisingly and densely integrates 20 SMU channels into valuable 1U height, full width, rack space with flexible module options at their best performance. It supports a variety of resources such as the Keysight PZ2110A Precision SMU, PZ2120/21A High-Speed SMUs, and PZ2130/31A High Channel Density SMUs with multiple functions such as pulser and digitizer, as well as precise voltage / current sourcing and measuring to adapt to a wide range of application requirements. The PZ2100A has 4 slots and allows any mixed module configuration for flexible scalability.

• 20x higher channel density than conventional SMUs - 20 Ch in 1U rack height, full width
• Flexible scalability with 5 SMU module options having pulse / digitizer in one resource
• Single box solution with <100 ns synchronization accuracy supporting 20 channels at max.
• Basic and advanced control software on PathWave for excellent operation and user experience
• User-friendly graphical user interface collectively managing 20 channels at max.
