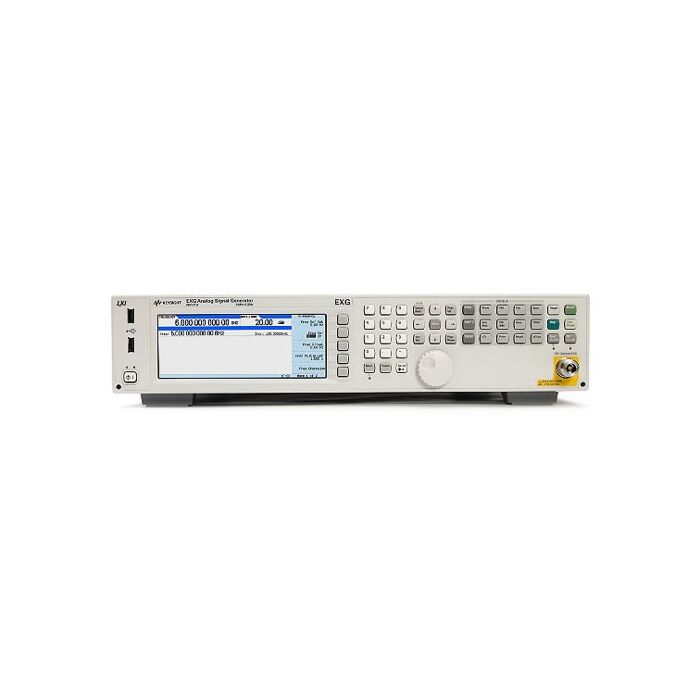

Keysight N5171B-501 Frequency Range, 9kHz to 1GHz

Product Highlights

• Achieve faster throughput and greater uptime with the cost-effective performance optimized for manufacturing test
• Perform basic parametric testing of components and functional verification of receivers with industry-leading output power
• Thoroughly verify receiver performance by simulating complex analog modulation scenarios with multi-function generator capability
• Minimize downtime and expenses with self-maintenance solutions and low-cost repairs
• Frequency: 9 kHz to 6 GHz
• Output Power @1 GHz: -144 dBm to +26 dBm
• Phase Noise @1 GHz: (20 kHz offset) -122 dBc/Hz
• Frequency Switching: ≤ 800 µs
• Harmonics @1 GHz: <-35 dBc
• IQ Modulation BW Internal/External: n/av
• Non-Harmonics @1 GHz: -72 dBc
• Sweep Mode: List, Step
Baseband Generator Mode: n/a
• Software-General Purpose: AM, FM, PM, Pulse, Pulse Train Generator
• Software-Cellular/Wireless Connectivity: n/a
• Software-Audio/Video Broadcasting: n/a
• Software-Detection/Positioning/Tracking/Navigation: n/a
• Waveform Playback Memory: n/a
• Frequency Modulation-Maximum Deviation @1 GHz: 10 MHz
• Frequency Modulation-Rate @100 kHz Deviation: DC to 7 MHz
• Phase Modulation-Maximum Deviation in Normal Mode: 1.25 rad to 20 rad
• Phase Modulation-Maximum Deviation in High-BW Mode: 0.125 to 2 rad
• Amplitude Modulation-Maximum Depth: 100%
• Amplitude Modulation-Rate : 0 to 50 kHz
• Applications Available: Yes
• Analog: Yes
