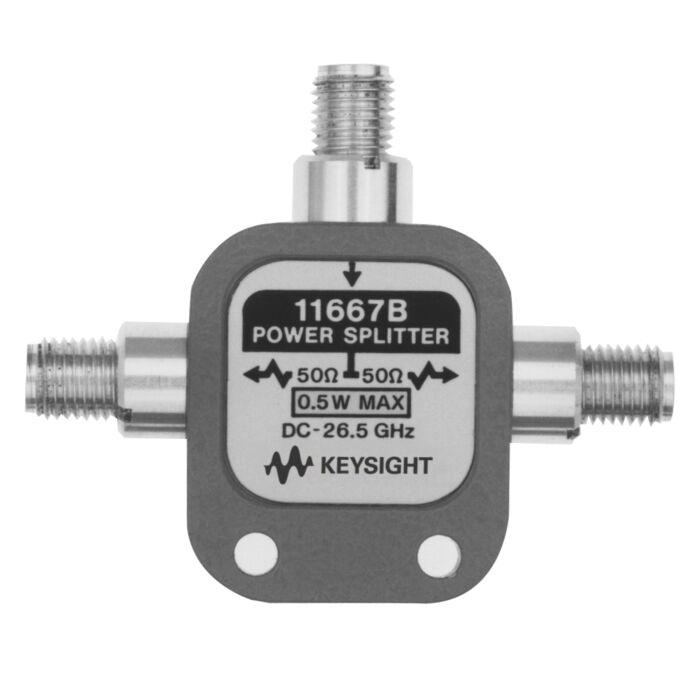

Keysight 11667B Power Splitter, DC to 26.5GHz, 3.5mm Female Connectors
Power Splitter,DC to 26.5GHz 3.5mm Female Connectors
Order #: 11667B
Mfg #: 11667B
$3,214.00
Keysight 11667B Power Splitter, DC to 26.5GHz, 3.5mm Female Connectors
Power Splitter,DC to 26.5GHz 3.5mm Female Connectors
Order #: 11667B
Mfg #: 11667B
$3,214.00
Availability: Ships in 3-4 weeks
This item is available as RENTAL at
Call for price
Shop now
Product Highlights
- Equivalent output SWR: 1.22
- Maximum input power: 0.5 W
- Insertion loss: 7 dB
- Tracking between two ports: 0.25 dB to 18 GHz, 0.40 to 26.5 GHz
- The Agilent 11667B power splitter is recommended when making wideband ratio measurements using an Agilent 8757 scalar network analyzer. This two-resistor type power splitter provides excellent output SWR at the auxilliary arm when used for source leveling or ratio measurement applications. The tracking between output arms over a frequency range from dc to 26.5 GHz allows wideband measurements to be made with a minimum of uncertainty.
