Order #: N6762A
Mfg #: N6762A
Keysight N6762A Precision DC Power Module, 100 with 50V/3A
Order #: N6762A
Mfg #: N6762A
Product Highlights
- Output Ratings
- Voltage: 50 V
- Current (derated 1% per °C above 40°C): 3 A
- Power: 100 W
- Programming Accuracy (at 23°C ±5°C after 30 minute warm-up. Applies from min. to max. program)
- Voltage high range: 0.016% + 6 mV
- Voltage low range (= 5.5 V): 0.016% + 1.5 mV
- Current high range: 0.04% + 200 µA
- Current low range (= 100 mA, @ 0 - 7 V): 0.04% + 15 µA
- Ripple & Noise from 20 Hz to 20 MHz
- CV peak-to-peak: 4.5 mV
- CV rms: 350 µV
- (PARD) CC rms: 2 mA
- Current Measurement Accuracy (at 23°C ±5°C):
- Current high range (= 3 A): 0.04% + 160 µA
- Current low range (= 100 mA, @ 0 - 7 V): 0.03% + 15 µA
- Current low range (= 100 mA, @ 0 - 50 V): 0.03% + 55 µA
- Option 2UA microamp range (= 200 uA): 0.5% + 100 nA
- Guide to Agilent Power Supplies
- Application Notes:
The Keysight N6762A is a 100 W precision DC power module that provides low noise, and precise control and measurements in the milliampere and microampere region with the ability to simultaneously digitize voltage and current, and capture those measurements in an oscilloscope-like data buffer. For leakage current or sleep-mode current measurements, add option 2UA for measurement capability down to 1 μA.
This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 500 W.
- Keysight N6700C Lo-Profile Modular Power System Mainframe, 400W, GPIB, LAN, USB, LXLo-Profile Modular Power System Mainframe,400W,GPIB,LAN,USB,LX
Order #: N6700C
Mfg #: N6700C
Availability:In stock$4,816.00 - Keysight N6701C Lo-Profile Modular Power System Mainframe, 600W, GPIB, LAN, USB, LXLo-Profile Modular Power System Mainframe,600W,GPIB,LAN,USB,LX
Order #: N6701C
Mfg #: N6701C
Availability:In stock$5,460.00 - Keysight N6702C Lo-Profile Modular Power System Mainframe, 1200W, GPIB, LAN, USB, LXLo-Profile Modular Power System Mainframe1200W,GPIB,LAN,USB,LX
Order #: N6702C
Mfg #: N6702C
Availability:In stock$7,179.00 - Keysight N6705C DC Power Analyzer Mainframe 600 W, 4 SlotsDC Power Analyzer Mainframe
Order #: N6705C
Mfg #: N6705C

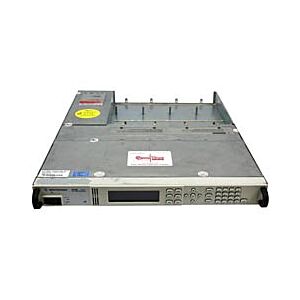

Availability:In stock$13,532.00 - Used Keysight / Agilent N6700B DC Modular Power Supply (MPS) Mainframe, 400W, 4-Slot400W, 4-Slot DC Modular Power Supply (MPS) Mainframe
Order #: N6700B-USED
Mfg #: N6700B

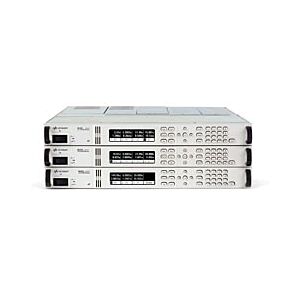

Availability:In stock$2,653.35 - Keysight N6701A for Rent, Power System Mainframe
Power System Mainframe
Order #: N6701A-RENT2
Mfg #: N6701A

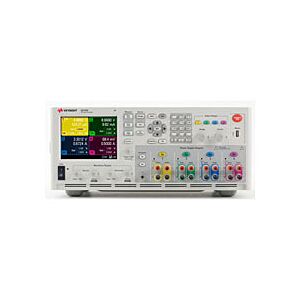

Availability: Call for AvailabilityCall for price - Keysight N6705B for Rent, DC Power Analyzer Mainframe for N6700 Modules
DC Power Analyzer Mainframe for N6700 Modules
Order #: N6705B-RENT2
Mfg #: N6705B-RENT2

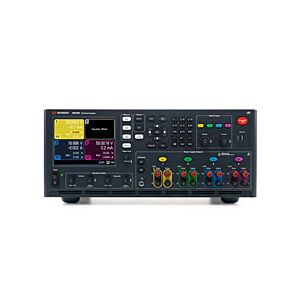

Availability:In stockCall for price - Used Keysight / Agilent N6705C DC Power Analyzer MainframeDC Power Analyzer Mainframe
Order #: N6705C-USED
Mfg #: N6705C

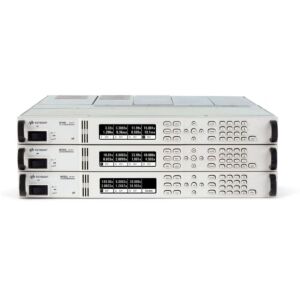

Availability:In stock$9,840.67 - Used Keysight / Agilent N6701A Power System MainframePower System Mainframe
Order #: N6701A-USED
Mfg #: N6701A

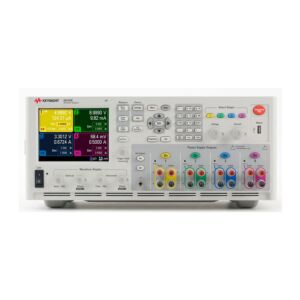

Availability: Ships in 1-2 weeksCall for price - Used Keysight N6705B DC Power Analyzer Mainframe for N6700 ModulesDC Power Analyzer Mainframe for N6700 Modules
Order #: N6705B-USED
Mfg #: N6705B-USED

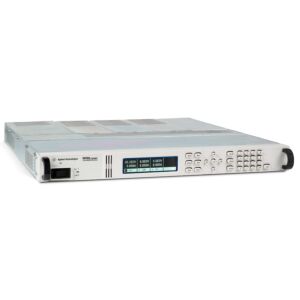

Availability: Call for AvailabilityCall for price - Used Keysight N6702A Low-Profile Modular Power System Mainframe, 1200WLow-Profile Modular Power System Mainframe,1200W
Order #: N6702A-USED
Mfg #: N6702A-USED

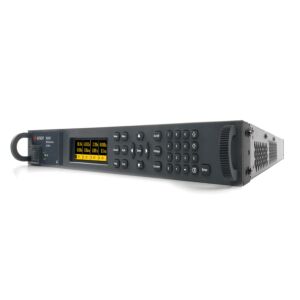

Availability: Call for Availability$1,722.35 - Used Keysight N6700C Lo-Profile Modular Power System Mainframe, 400W, GPIB, LAN, USB, LXLo-Profile Modular Power System Mainframe,400W,GPIB,LAN,USB,LX
