Keysight DSOX3WAVEGEN WaveGen Built-in Function & Arbitrary Generator Upgrade for the 3000X Series

Product Highlights

An industry first, the 3000 X-Series offers an integrated 20-MHz built-in function and arbitrary waveform generator. These capabilities are available on 3000 X-Series only with DSOX3WAVEGEN option installed. This option can be purchased with the scope or can be purchased later with an on-bench upgrade.

• 10 bits, 100 MSa/s, 8 kpts, DDS technology

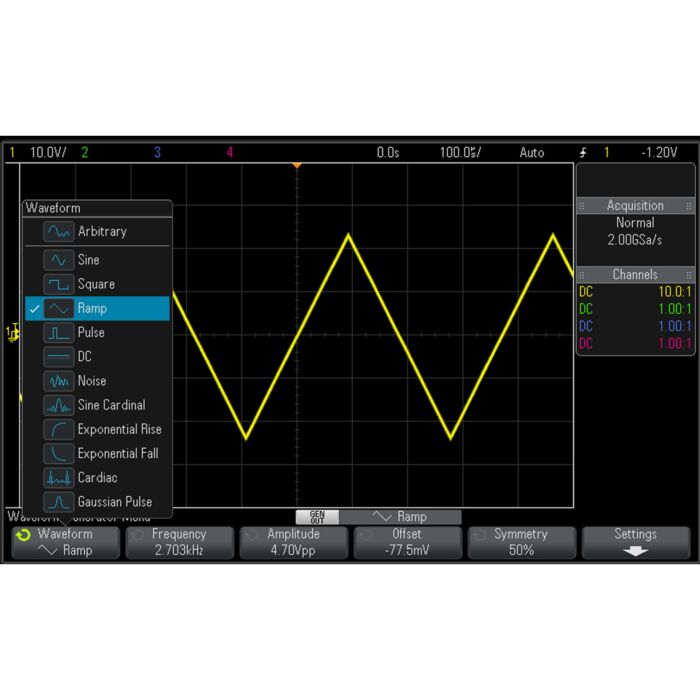

Waveforms include:

• Sine wave, square wave (with variable duty cycle), ramp, pulse (with variable pulse width), DC, noise
• Sine cardinal, exponential rise, exponential fall, cardiac, gaussian
• Arbitrary waveform generation
• Store scope waveforms directly into WaveGen AWG memory with one button press
• Create/edit AWG waveforms using built-in editor
• Add noise and glitches
• Change amplitude, frequency, and offset
• Quickly test the margins of your designs using real-world signals
• Internal memory and USB thumb drive save/recall
• Existing customers who have previously purchased DSOX3WAVEGEN will receive AWG capability after upgrading their scope to version 2.0
