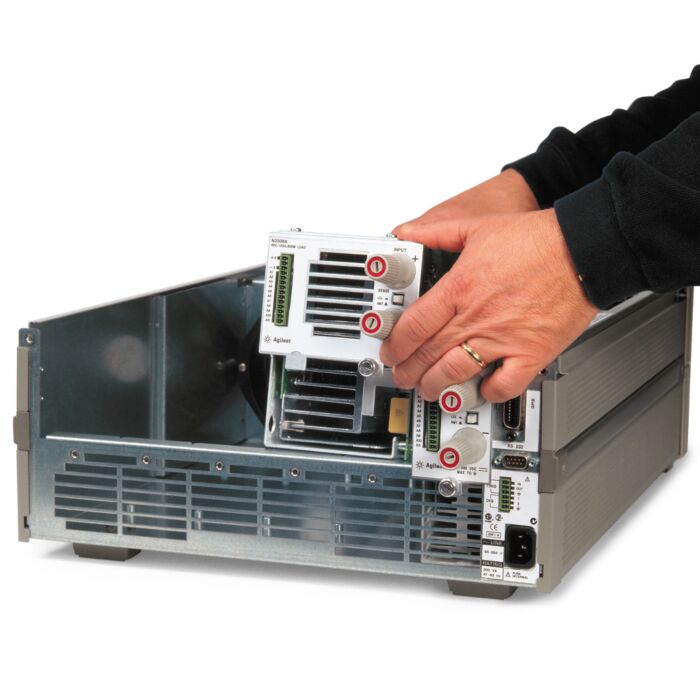

Keysight N3307A DC Electronic Load Module, 250W 150V, 30A/N330X Mainframes, 1Slot

Product Highlights

• Current: 0 - 30 A
• Voltage: 0 - 150 V
• Maximum Power: 250 W
• Low Range/High Range: 3 A/30 A
• Regulation: 10 mA
• Low Range Accuracy: 0.1% + 7.5 mA
• High Range Accuracy: 0.1% + 15 mA
• Low Range/High Range: 15 V/150 V
• Regulation: 10 mV
• Low Range Accuracy: 0.1% + 10 mV
• High Range Accuracy: 0.1% + 20 mV
• Range 1 (I >10% of current rating): 0.067-10 ohm
• Range 2 (I >1% of current rating): 9-100 ohm
• Range 3 (I >0.1% of current rating): 90-1000 ohm
• Range 4 (I >0.01% of current rating): 900-2500 ohm
