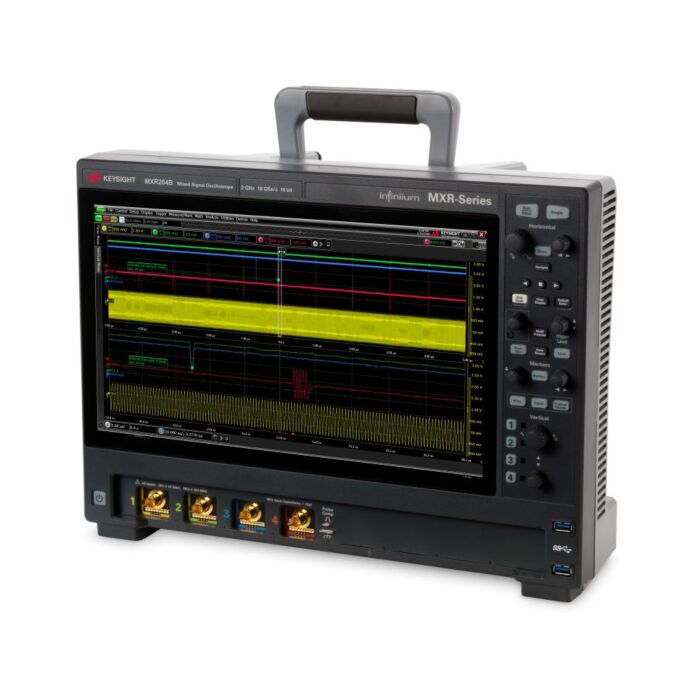

Keysight MXR204B Infiniium MXR B-Series Oscilloscope, 2GHz, 4 Channels
Infiniium MXR B-Series Oscilloscope 2 GHz,4 Channels
Order #: MXR204B
Mfg #: MXR204B
$61,095.00
Keysight MXR204B Infiniium MXR B-Series Oscilloscope, 2GHz, 4 Channels
Infiniium MXR B-Series Oscilloscope 2 GHz,4 Channels
Order #: MXR204B
Mfg #: MXR204B
$61,095.00
Availability: Call for availability
Product Highlights
2 GHz on all 4 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable to 6 GHz and 8 channels
Features
- Up to 2 GHz bandwidth on all 4 channels all the time
- Up to 70% faster jitter analysis (compared to MXR A)
- 65% faster power integrity analysis (compared to MXR A)
- 45% faster FFTs (compared to MXR A)
- 15% faster USB 2.0 compliance testing (compared to MXR A)
- New standard features InfiniiScan and Wave Gen
- Maximum memory is a flexible 1.6 G points
- Capabilities are extended with 8-in-1 instrument integration
- Upgradeable in every possible way — including bandwidth and channel upgrades
What's included:
- One N2873A 500-MHz passive probe per channel
- Probe accessory pouch
- Localized power cord
- Front panel hard cover
- BNC calibration cable
- Keyboard and mouse
- Keysight I/O libraries suite, user guide, and programmer's guide ship on oscilloscope drive
- Service guide available on Keysight.com
