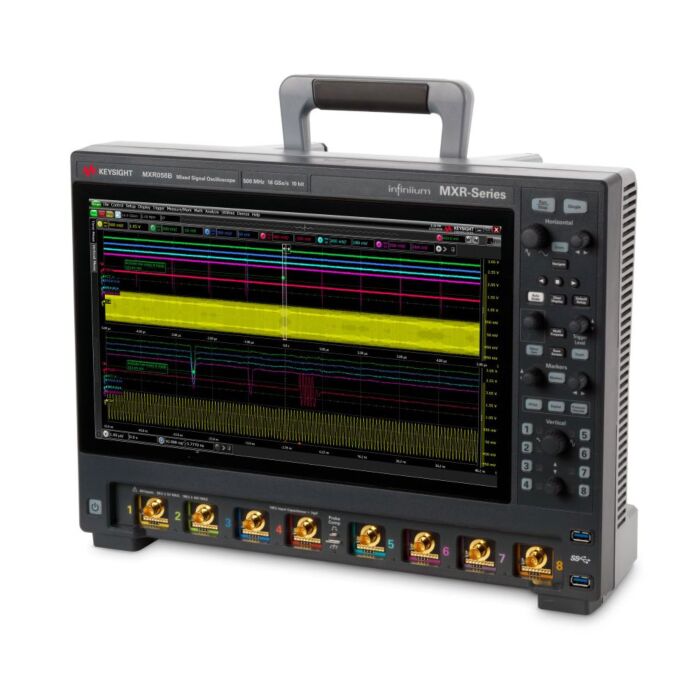

Keysight MXR058B Infiniium MXR B-Series Oscilloscope, 500MHz, 8 Channels
Infiniium MXR B-Series Oscilloscope 500 MHz,8 Channels
Order #: MXR058B
Mfg #: MXR058B
$61,806.00
Keysight MXR058B Infiniium MXR B-Series Oscilloscope, 500MHz, 8 Channels
Infiniium MXR B-Series Oscilloscope 500 MHz,8 Channels
Order #: MXR058B
Mfg #: MXR058B
$61,806.00
Availability: Ships in 4-6 weeks
Product Highlights
500 MHz on all 8 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable to 6 GHz
Features
- Up to 500 MHz bandwidth on all 8 channels all the time
- Up to 70% faster jitter analysis (compared to MXR A)
- 65% faster power integrity analysis (compared to MXR A)
- 45% faster FFTs (compared to MXR A)
- 15% faster USB 2.0 compliance testing (compared to MXR A)
- New standard features InfiniiScan and Wave Gen
- Maximum memory is a flexible 1.6 G points
- Capabilities are extended with 8-in-1 instrument integration
- Upgradeable in every possible way — including bandwidth and channel upgrades
What's included:
- One N2873A 500-MHz passive probe per channel
- Probe accessory pouch
- Localized power cord
- Front panel hard cover
- BNC calibration cable
- Keyboard and mouse
- Keysight I/O libraries suite, user guide, and programmer's guide ship on oscilloscope drive
- Service guide available on Keysight.com
