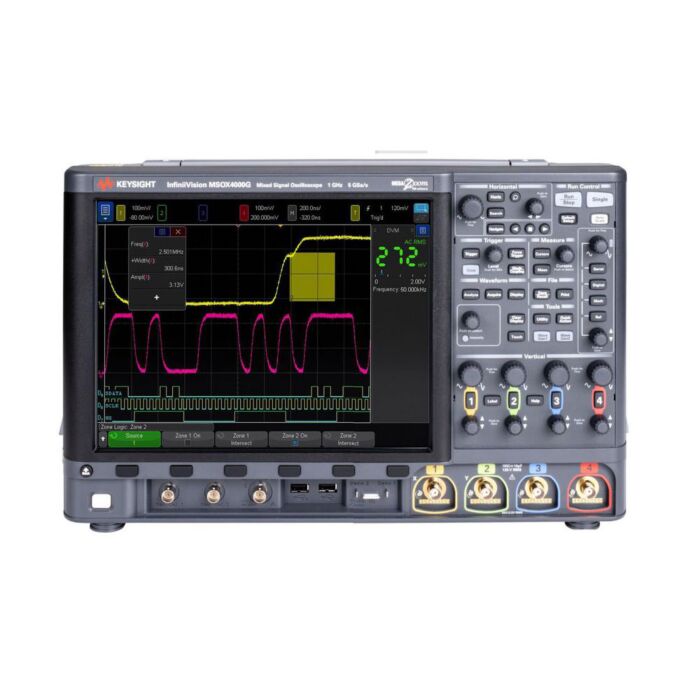

Keysight MSOX4032G InfiniiVision Oscilloscope, 2+16 Channel, 350 MHz, with Wavegen

Product Highlights

With the industry's only uncompromised waveform update rate of 1,000,000 waveforms/second, users can have confidence that they will catch even the rarest of glitches in user design. It shares a common foundation of industry-leading features, such as the fastest uncompromised waveform update rate and the world's easiest triggering capability, zone trigger. The newest InfiniiVision 4000G X-series goes a step further by incorporating more advanced features as part of its standard configuration: dual waveform generators, mask testing, frequency response analysis, histograms, and hardware-based serial decoding capabilities. It ensures optimal testing efficiency with easy setup and navigation. Safety standards are CAN/CSA-C22.2 No. 61010-1-12, UPD1: 2015, UPD2: 2016, AMD1: 2018, CAN/CSA-C22.2 No. 61010-2-030:18, UL Std. No. 61010-1 3rd Ed. (2018); UL Std. No. 61010-2-030-2nd Ed. (2018).

Features

• 200MHz bandwidth (-3dB), 200MHz all-channel real-time bandwidth, ≤ 1.75ns calculated rise time
• 2 + 16 input channels, 5GSa/s half channel maximum sample rate
• 4Mpts maximum memory depth
• 12.1" high-definition capacitive touch display, 1 million waveforms per second waveform update rate
• Dimension (W x H x D) is 17.874inch x 10.826inch x 6.141inch
• Built-in help and zone trigger functions simplify the analysis process even further
• Large touchscreen with easy-to-use interface and built-in help, zone trigger
• 7 instruments integrated in 1, general debug to industry-specific analysis
• License upgradeable, extensive probe and accessories portfolio
• 5-digit frequency counter, standard color grade, histogram, and enhanced FFT
