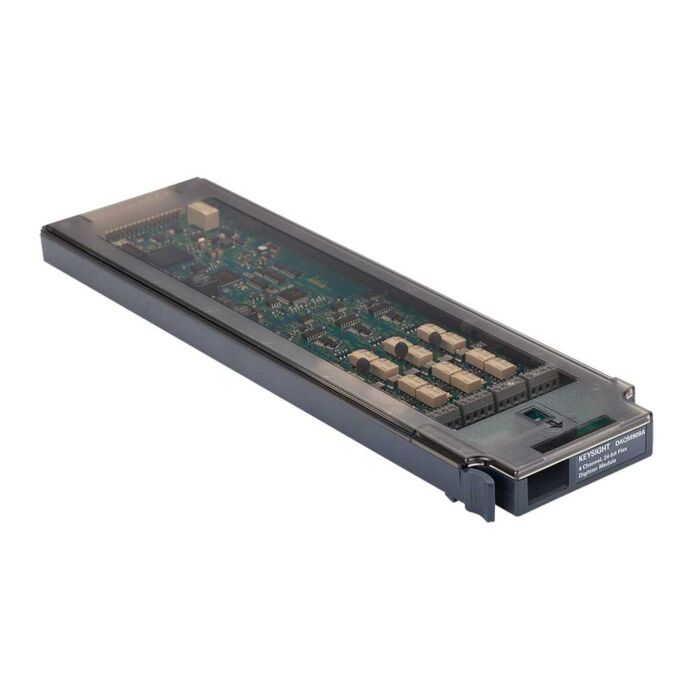

Keysight DAQM909A Digitizer Module, 4 Channel, 800k Samples/s, 24-bit
Digitizer Module, 4 Channel, 800k Samples/s, 24-bit

Order #: DAQM909A

Mfg #: DAQM909A

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,841.00

Keysight DAQM909A Digitizer Module, 4 Channel, 800k Samples/s, 24-bit

Digitizer Module, 4 Channel, 800k Samples/s, 24-bit

Order #: DAQM909A

Mfg #: DAQM909A

$2,841.00
Availability: Ships in 4-6 weeks

Product Highlights

The DAQM909A is a four-channel digitizer module capable of providing four simultaneously-sampled channels with sampling rate as high as 800k samples per second with a maximum resolution of 24 bits. The input channels of the DAQM909A can be configured as a differential input or a single-ended input and each of the channels can provide up to 4mA of constant current to power up an external IEPE transducer.

When three DAQM909A modules are inserted within the same instrument, all 12 channels can be synchronized to provide simultaneous sampling.

4-Channel 24-bit Digitizer

  • Simultaneous sampling
  • Up to 800 kSa/s at 24-bit
  • Time/frequency domain measurement with Benchvue DAQ
