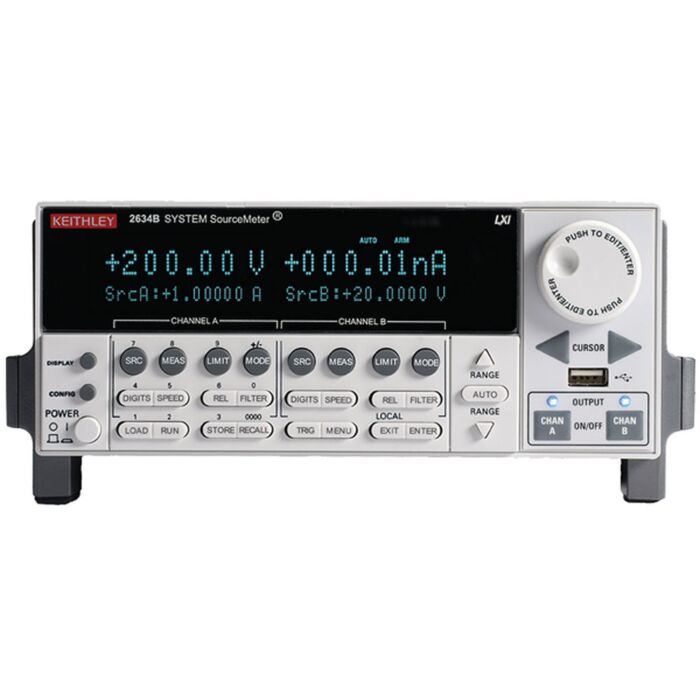

Keithley 2634B System Sourcemeter Dual Channel 200V, low current

Product Highlights

The 2634B is built from Keithley's 3rd generation SMU technology and combines the capabilities of a Precision Power Supply, true Current Source, 6-1/2 digit DMM, Arbitrary Waveform Generator, Pulse Generator, and Electronic Load - all into one tightly integrated instrument.

For automated system applications, the 2634B's Test Script Processor (TSP) runs complete test programs from inside the instrument for industry-best throughput. Because the 2634B has fully-isolated channels that do not require a mainframe, it can be easily re-configured and redeployed as your test applications evolve.

The Series 2600B are the only SMU instruments to feature built-in, Java-based test software that enables true plug and play I/V characterization through any browser, on any computer, from anywhere in the world. This unique capability boosts productivity across a wide range of applications such as R&D, education, QA/FA, and more. Simply connect the 2634B to the Internet via the supplied LAN cable, open a browser, type in the 2634B's I.P. address, and begin testing. Resulting data can be downloaded to a spreadsheet such as Excel for further analysis and formatting, or for inclusion in other documents or presentations.

• Dual Channel
• 6-1/2 digits display
• 30 - 40 Watts per channel
• Current Max / Min: 10A pulse / 0.1fA
• Voltage Max / Min: 200V / 100nV
• GPIB, LAN (LXI), RS-232, USB interfaces
• 2400 SCPI Emulation
• Free software drivers and development/debug tools
• Optional ACS-Basic semiconductor component characterization software
• Benchtop Version
