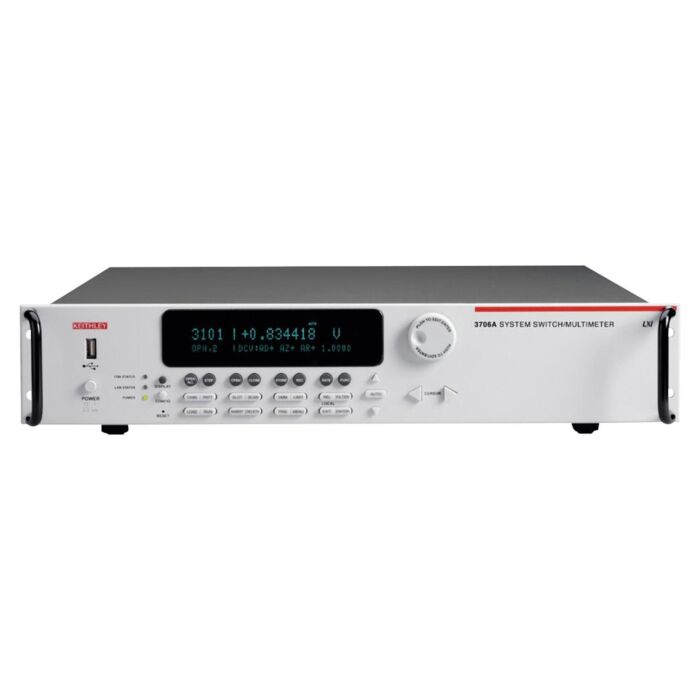

Keithley 3706A System Switch/Multimeter
Order #: 3706A
Mfg #: 3706A
Product Highlights
To provide users with greater versatility when designing test systems, the Series 3700A mainframes are equipped mwith many standard features. For example, easy connectivity is supported with three remote interfaces: LXI/Ethernet, General Purpose Interface Bus (GPIB), and Universal Serial Bus (USB). Fourteen digital I/O lines are also included, which are programmable and can be used to control external devices such as component handlers or other instruments. Additionally, system control can be greatly enhanced by using our Test Script Processor (TSP) technology. This technology provides “smart” instruments with the ability to perform distributed processing and control at the instrument level versus a central PC.
- Six-slot system switch mainframe with optional high performance multimeter
- Multi-processor architecture optimized for high throughput scanning and pattern switching applications
- Remote PC control via Ethernet, USB, and GPIB interfaces
- Up to 576 two-wire or 720 one-wire multiplexer channels in one mainframe
- Up to 2,688 one-pole matrix crosspoints in one mainframe
- Embedded Test Script Processor (TSP) offering unparalleled system automation, throughput, and flexibility
- TSP-Link Technology master/slave connection provides easy system expansion and seamless connection to Series 2600 and 2600B SourceMeter SMU instruments
- Capable of over 14,000 readings per second to memory with optional high performance multimeter
- LXI interface with embedded Web browser interface for test setup, maintenance, and basic application control
Each Unit Includes
- Test Script Builder Software Suite CD
- Ethernet Crossover Cable (CA-180-3A)
- Series 3700A Product CD (includes LabVIEW®, IVI C, and IVI.COM drivers)
- Keithley KPCI-488LPA Low Profile IEEE-488 Interface BoardLow Profile IEEE-488 Interface Board
Order #: KPCI-488LPA
Mfg #: KPCI-488LPA
Availability: Ships in 3-4 weeks$1,321.60 - Keithley KUSB-488B IEEE-488.2 USB to GPIB InterfaceIEEE-488.2 USB-TO-GPIB INTERFAC
Order #: KUSB-488B
Mfg #: KUSB-488B
Availability: Ships in 3-4 weeks$1,414.00 - Tektronix CA-126-1A Cable Assembly DB25 Male To DB25 Female, 5'Cable Assembly DB25 Male To DB25 Female, 5 feet
Order #: CA-126-1A
Mfg #: CA-126-1A
Availability: Ships in 3-4 weeks$320.60 - Keithley 7007-1 Shielded GPIB Cable, 1MShielded GPIB Cable, 1M
Order #: 7007-1
Mfg #: 7007-1
Availability: Ships in 3-4 weeks$289.80 - Keithley 3706A-5Y-EW 5 Year KeithleyCare Extended Warranty5 Year KeithleyCare Extended Warranty
Order #: 3706A-5Y-EW
Mfg #: 3706A-5Y-EW
Availability: Ships in 3-4 weeks$1,806.00 - Keithley 3720 Dual 1X30 Multiplex Card (Auto CJC with 3720-ST)Dual 1X30 Multiplex Card (Auto CJC with 3720-ST)
Order #: 3720
Mfg #: 3720

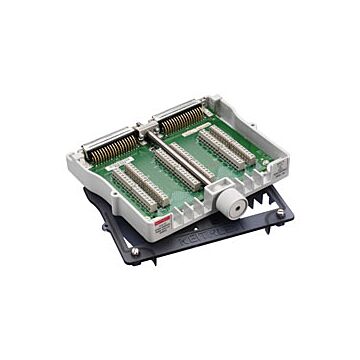

Availability:In stock$2,842.00 - Keithley 3721-ST Screw Terminal Panel With CJC Sensor for 3721 CardScrew Terminal Panel With CJC Sensor for 3721 Card
Order #: 3721-ST
Mfg #: 3721-ST

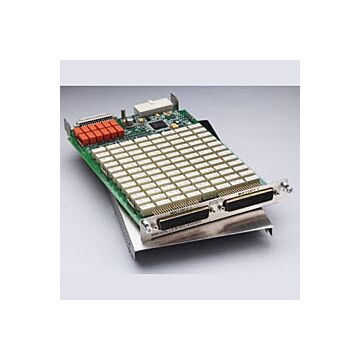

Availability: Ships in 3-4 weeks$751.80 - Keithley 3722 Multiplex Card, Dual 1X48 High DensityMultiplex Card, Dual 1X48 High Density
Order #: 3722
Mfg #: 3722
Availability: Call for availability$3,878.00 - Keithley 3723 Multiplex Card, Dual 1X30 High Speed Reed RelayMultiplex Card, Dual 1X30 High Speed Reed Relay
Order #: 3723
Mfg #: 3723
Availability: Call for availability$3,472.00 - Keithley 3724 Dual 1X30 FET Card (Auto CJC Required, also order 3724-ST)Dual 1X30 FET Card (Auto CJC Required, also order 3724-ST)
Order #: 3724
Mfg #: 3724

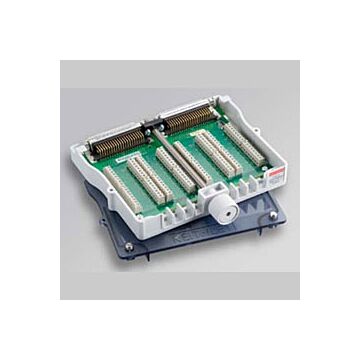

Availability: Call for availability$4,032.00 - Keithley 3724-ST Screw Terminal Panel With CJC Sensor for 3724 CardScrew Terminal Panel With CJC Sensor for 3724 Card
Order #: 3724-ST
Mfg #: 3724-ST
Availability: Ships in 3-4 weeks$954.80 - Keithley 3730 Matrix Card, 6 X 16, High DensityMatrix Card, 6 X 16 High Densit
Order #: 3730
Mfg #: 3730
Availability: Call for availability$3,878.00 - Keithley 3732 Matrix Card, Quad 4X28 Reed RelayMatrix Card, Quad 4X28 Reed Relay
Order #: 3732
Mfg #: 3732
Availability: Call for availability$13,426.00 - Keithley 3740 Switch Card, 28 Independent Form C, 4 High Current Form ASwitch Card, 28 Independent Form C, 4 High Current Form A
Order #: 3740
Mfg #: 3740
Availability:In stock$2,478.00 - Keithley 3760 Multiplexer Card, 10-Channel, High CurrentMultiplexer Card, 10-Channel High Current
Order #: 3760
Mfg #: 3760
Availability: Call for availability$2,912.00 - Keithley 3761 Multiplexer Card, 10 Channel, Low CurrentMultiplexer Card, 10-Channel Low Current
Order #: 3761
Mfg #: 3761
Availability: Call for availability$5,390.00 - Keithley 3762 Multiplexer Card, 10 Channel, High VoltageMultiplexer Card, 10-Channel High Voltage
Order #: 3762
Mfg #: 3762
Availability: Call for availability$3,374.00
Features | Benefits |
---|---|
Four configuration options available | Allows buying the minimum functionality the application requires: with or without DMM, with or without front panel display and keypad. |
Embedded Test Script Processor (TSP®) | Avoids communication delays between the PC controller and instrument by embedding test scripts in the instrument itself, improving test throughput dramatically. |
TSP-Link® master/slave connection | Offers easy system expansion between mainframes; also allows connecting to other TSP-Link enabled instruments such as Series 2600B SourceMeter SMU instruments. |
Optional 7½-digit DMM is connected to the mainframe’s analog backplane | Ensures a high quality signal path from each card channel to the multimeter. |
Built-in Web interface | Offers a quick and easy method to control and analyze measurement results. |
Optional DMM capable of >14,000 readings/second to memory at 3½ digits | Supports high throughput component testing. |
Front panel USB 2.0 device port | Simplifies transfer of readings, system configurations, and test scripts by allowing them to be saved to memory sticks. |
Built-in LXI/Ethernet, GPIB, and USB interfaces | Supports easy connectivity with other equipment in the test system. |
Fourteen programmable digital I/O lines | Allows easy control of external devices like component handlers or other instruments. |
