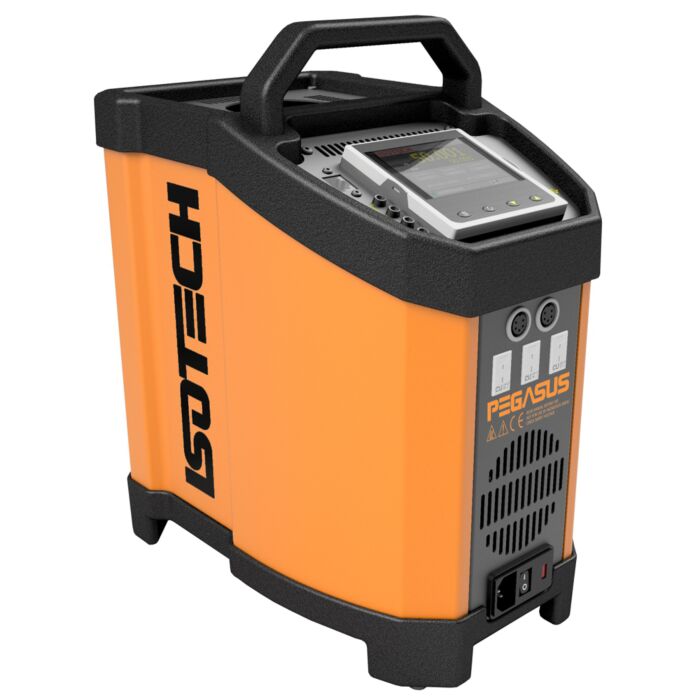

Isotech PEGASUS 4853 BASIC
Dry Block Oven,150 to 1200C
Order #: PEGASUS 4853 BASIC
Mfg #: PEGASUS 4853 BASIC
$10,479.00
Isotech PEGASUS 4853 BASIC
Dry Block Oven,150 to 1200C
Order #: PEGASUS 4853 BASIC
Mfg #: PEGASUS 4853 BASIC
$10,479.00
The Pegasus range offers extreme high temperature calibration in an easy to use portable package - ideal for the calibration of high temperature thermocouples. It has been designed for fast heating and finds applications in the glass, electrical power, automotive and material processing industries.
Availability: Ships in 3-4 weeks
Product Highlights
- 150 °C to 1200°C Dry Block
- High Temperature Thermocouple Calibration Furnace
- Custom Furnace Design with Optimised Profile
- Calibrate Whole Measurement Loop
- Stability ±0.1°C @ 150°C ±0.2°C @ 1200°C
- Display Resolution 0.1°C from 150°C to 999.9°C then 1°C: 0.01°C Over PC Interface
- Blackbody Source ±0.3°C
- Cools from 1200°C to 800°C in 50 minutes*
- 1200°C to 200°C in 180 minutes*
- * substantially reduced by the cooling adaptor
- Heating Rate 25°C / minute
- Calibration Volume 33.5mm diameter by 130mm deep
- Standard Insert 4 x 8mm Pockets all 80mm deep + 50mm top insulator
- Indicator Units °C, °F, K
- Power 115Vac or 230Vac (50/60 Hz) 800 Watts
- Dimensions 384H (including handle) x 212W x 312D mm
- Weight 13kg
