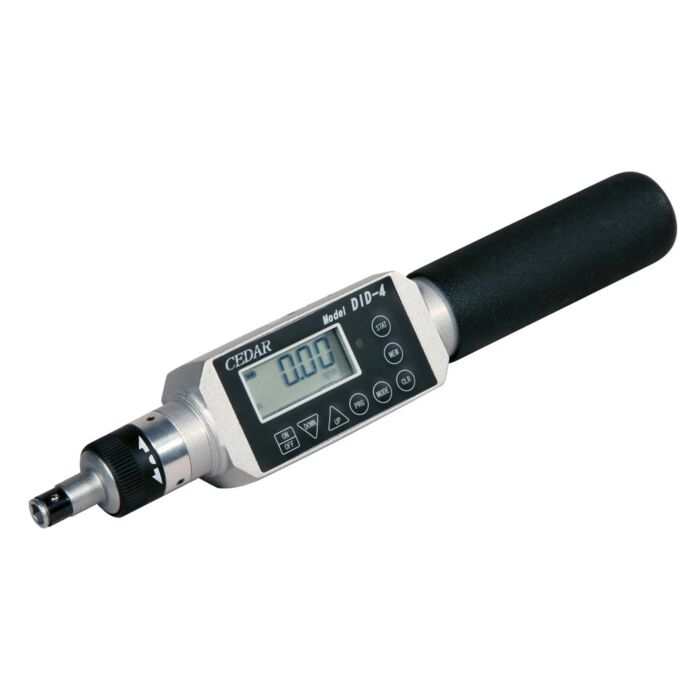

Imada DID-4A

Product highlights

• Programmable High/Low setpoints with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing
• Peak, Real Time, Peak Down or Continuous Output modes (selectable)
• Accuracy ± 0.5% F.S., ±1 LSD
• Selectable units: ozf-in, lbf-in, kgf-cm, N-cm, N-m
• USB virtual COM_port sends peak and continuous data
• 800 data memory for recall with statistics
• Programmable screw tightening counter
• Light weight, yet ruggedly constructed
• Programmable Auto Zero resets unit to zero
• Runs on internal NiCad batteries Auto shut-off after 10 min. of non-use
• ozf-in: 2.0~560.0
• lbf-in: 0.20~35.00
• kgf-cm: 0.020~5.000
• N-cm: 2.0~400.0
• N-m: 0.020~4.000

Each Unit Includes

• 1/4" female hex adapter
• 2-1/4" Phillips tips
• AC charger
• carrying case
• calibration certificate traceable to NIST
