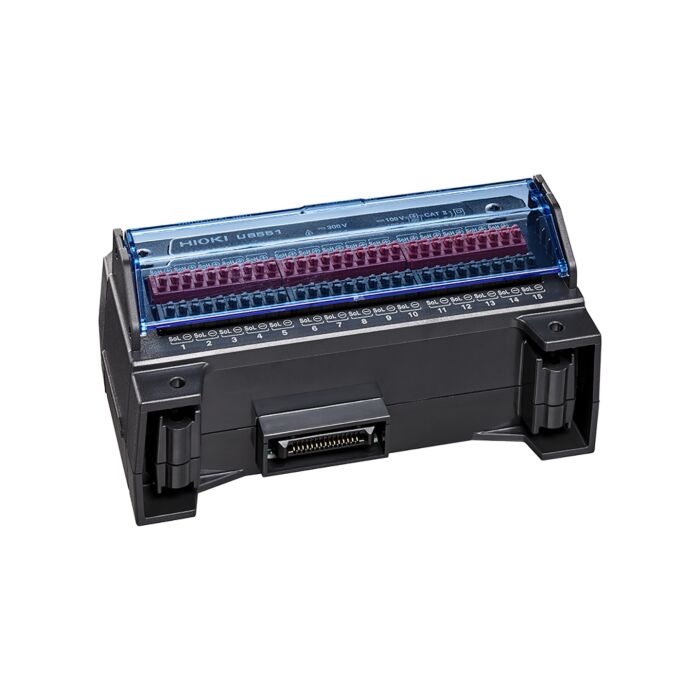

Hioki U8551 Universal Unit (15-Channels)

Universal Unit(15-Channels)

Order #: U8551

Mfg #: U8551

New

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Availability:

This item is no longer available. Please contact Transcat Customer Service for assistance with alternative product suggestions to meet your exact needs.

Choose Your Options:

New Purchase Calibration

None

Calibration without Data + $156.00

Accredited Calibration with Data + $210.00

Accredited Calibration with Data & Uncertainties + $252.00

Add Calibration

Product Overview

Product Highlights

UNIVERSAL UNIT U8551

Voltage and Temperature Measurement with 10 ms Sampling

CAN/CAN FD input and output switchable
Max. sampling 10 ms (up to 50 ch)
Up to 500 ch measurement (at 100 ms)

Used With

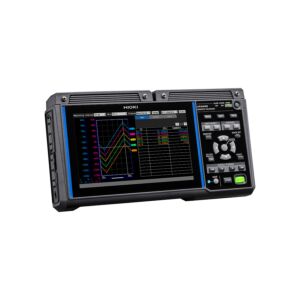

Hioki LR8450 Memory HiLogger, PMI
Memory HiLogger,PMI

Order #: LR8450

Mfg #: LR8450

Availability: Ships in 3-4 weeks

$3,465.00

Qty

Specifications

Connectable instruments	Memory HiLogger LR8450 (Designed for use with plug-in units only) Memory HiLogger LR8450-01 (Wireless LAN model)
Operating temperature and humidity	-10°C to 50°C, 80% RH or less (no condensation)
Storage temperature and humidity	-20°C to 60°C, 80% RH or less (no condensation)
Vibration resistance	JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
Included accessories	Instruction manual x 1, mounting screw x 2
Input terminals	D-sub 9 pin MALE x 2
Operation mode	Supports switching between receive mode and measured value output mode
Receive mode	No. of measurement channels: Max. 500 channels (max. 500 signals)
Measured values output mode	Convert LR8450 measured values and output them as CAN frames.
Measurement and output target	CAN, CAN FD, CAN FD (non-ISO)
