HD Electric DVM

Product Highlights

• Perform voltmeter and phasing operations for virtually all overhead & underground applications
• Take measurements on secondary voltages starting at 5 Volts
• Take measurements on primary voltages up to 80 Kilovolts
• Take measurements on elbow test points with Test Point Feature
• Peak voltage reading can be held using the new Peak Hold Feature
• Perform underground cable fault testing with Cable Fault Tester
• Test the voltmeter before and after use with Voltmeter Proof Tester
• Digital Meter - reads in kilovolts, 3.5 digits with decimal point
• Voltage Range - 5V-40kV, 5V-80kV with add-on resistors
• Use on Secondary Voltages - starting at 5V
• Auto-Ranging - no range selector switch
• Accuracy - highly accurate, within 1% of reading +/- 3 counts
• Backlit Display - for easy reading in bright or dark conditions
• Peak Hold Mode - conveniently keeps the peak voltage reading on the display
• Measures AC and DC Voltages
• Measure Voltage on Elbow Test Points - meter displays system voltage
• Underground Cable Testing - test underground cables for faults
• Auto-Shutoff - prevents battery drain
• Coiled Connecting Cord - 3.5’ retracted, 12’ extended
• Phase Accurate Technology - makes all voltage readings, whether line-to-line or line-to-ground, accurate and repeatable to within 1%
• Battery - powered by a standard 9V alkaline battery in an easy to change battery case (no tools required)
• Made in the USA

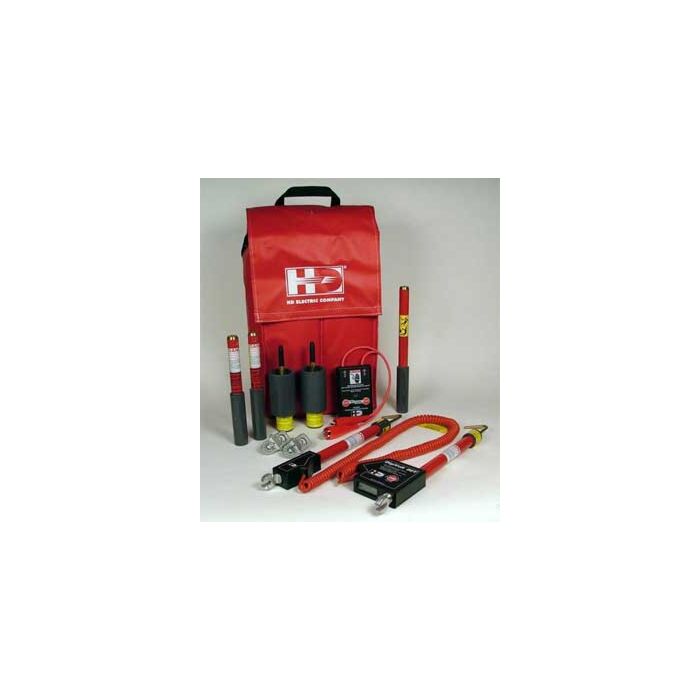

Each Unit Includes

• Dual stick phasing voltmeter with overhead hook probes for use up to 40kV
• Add-on resistor sticks for measurements up to 80kV
• Underground bushing probes
• Cable fault tester
• Voltmeter proof tester
• Shotgun hotstick adapters
• Soft-sided, multi-functional carrying bag with built-in bucket hooks
