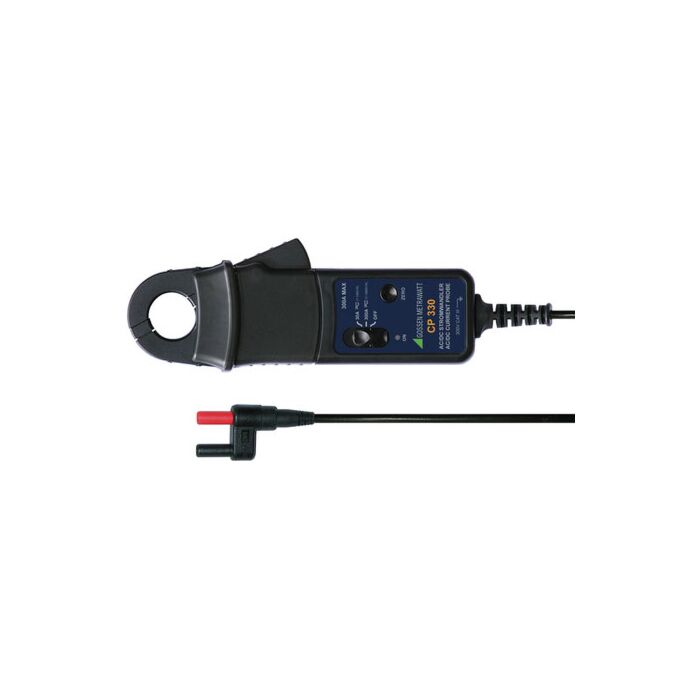

Gossen Metrawatt CP330
Clip-on-current transformer 0.5 -30 / 5 - 300 A DC, 10 mV

Order #: CP330

Mfg #: Z202B

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $1,018.95 Regular Price $1,018.96

Gossen Metrawatt CP330

Clip-on-current transformer 0.5 -30 / 5 - 300 A DC, 10 mV

Order #: CP330

Mfg #: Z202B

Special Price $1,018.95 Regular Price $1,018.96
he CP30/330 and CP1100/1800 AC / DC current probes have been designed for reliable and accurate, contactless measurement of AC, DC and complex waveform currents. Using advanced Hall Effect technology they can measure currents accurately.
Availability: Ships in 3-4 weeks

Product Highlights

Using advanced Hall Effect technology they can measure currents accurately.

  • AC and DC current measurement for TRMS multimeters High accuracy of 1%
  • 50 mA / 100 mA resolution
  • Auto Power Off for saving batteries
  • High bandwith DC.. 20 kHz
  • The transformation ratio can be set directly in the METRAHIT multimeters
  • Simple autozeroing via push button
  • Type CP30 CP330 CP1100 CP1800
  • Measuring range 0 ... 30 A (1) 0 ...30 / 300 A 0...100 / 1000 A 0...125 / 1800 A
  • Resolution 1 mA 50 mA/ 100mA 100 mA/ 500mA 100 mA/ 500mA
  • Overload capacity 500 A (60s) 600 A (60s) 2000 A (60s) 2000 A (60s)
  • Temperature coefficient /°C ±0,01% of rdg. ±0,1 % of rdg. ±0,1 % of rdg. ±0,1 % of rdg.
  • Transformation ratio 100 mV/A 10 mV/A,1mV/A 10 mV/A,1mV/A 10 mV/A,1mV/A
  • Overall DC accuracy ±1% of rdg.
  • ±2mA ±1% of rdg.
  • ±50/100 mA ±1% of rdg.
  • ±100/500 mA ±1% of rdg.
  • ±100/500 mA
  • Frequency range DC... 20 kHz
  • (-1 dB) DC... 20 kHz
  • (-3 dB) DC... 20 kHz
  • (-1 dB) DC... 20 kHz
  • (-1 dB)
  • Clamp opening 25 mm 25 mm 32 mm 32 mm
  • Article nummer Z201B Z202B Z203B Z204A
  • 1) DC or ACpk
  • Operating voltage 300 V ACRMS or DC
