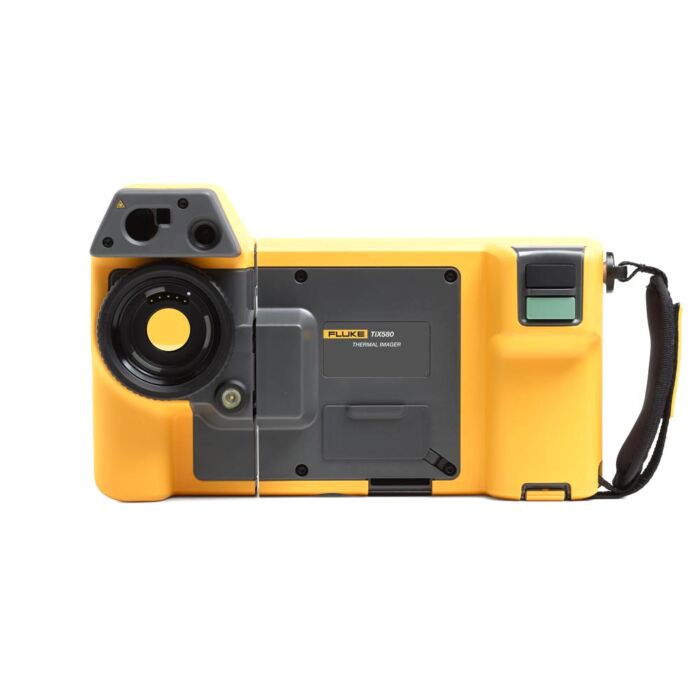

Fluke TIX580 Thermal Imager; 640x480; 60 HZ with SuperResolution
Thermal Imager; 640x480; 60 HZ with SuperResolution

Order #: TIX580-60HZ

Mfg #: 4842073

Questions about availability or need help? Contact Us:

(800) 633-0561
$34,135.99

Fluke TIX580 Thermal Imager; 640x480; 60 HZ with SuperResolution

Thermal Imager; 640x480; 60 HZ with SuperResolution

Order #: TIX580-60HZ

Mfg #: 4842073

$34,135.99
With up to 640x480 resolution, a large 5.7 in touchscreen and a 240 ° rotating lens, the answer is right before your eyes, even when your target isn’t.
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Fluke TiX580 60Hz Highlights

  • Get stunning 640 x 480 image quality and surprising affordability in the TiX580 (suburb 320 x 240 resolution is available in the TiX560 – TiX500 models)
  • Premium in-field viewing experience with the 5.7 inch responsive LCD touchscreen – 150 % more viewing area (Compared to a standard 3.5 inch screen)
  • Easily navigate over, under and around objects with the 240 ° rotating lens and see the image before you capture it.
  • The ergonomic design and neck strap make long inspection days a lot easier.
  • Enhanced image quality and temperature measurement accuracy – turn your 640 x 480 images into 1280 x 960 and your 320 x 240 images into 640 x 480 images, that’s 4x’s the resolution and pixels with SuperResolution
  • Get an in-focus image with the touch of a button. LaserSharp® Auto Focus, exclusive to Fluke, uses a built-in laser distance meter that calculates and displays the distance to your designated target with pinpoint accuracy (Compared to a standard 3.5 inch screen)
  • These cameras are not only Fluke Connect® compatible but also include the new, powerful and easy-to-use Fluke Connect desktop software to optimize and analyze infrared images, and generate quick, customizable reports.
  • MATLAB® and LabVIEW® software compatibility with the new, included Fluke Connect® desktop software allows users to integrate camera data and infrared images to support R&D analysis and reports

Each Unit Includes

  • Thermal imager with standard infrared lens
  • AC power supply and battery pack charger (including universal AC adapters)
  • Two, rugged lithium ion smart battery packs
  • USB cable
  • HDMI video cable
  • Bluetooth headset (where available)
  • Rugged, hard carrying case
  • Adjustable neck and hand strap
  • Available by free download Fluke Connect® SmartView® desktop software and users manual

Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke A3000FC
    Fluke A3000FC FC Wireless AC Current Clamp Module
    FC Wireless AC Current Clamp Module

    Order #: A3000-FC

    Mfg #: 4401588

    Availability:
    In stock
    Special Price $304.76 Regular Price $367.19
  2. Fluke 2X-LENS Infrared Telephoto Lens (2X magnification)
    Fluke 2X LENS Infrared Telephoto Lens (2X magnification)
    Infrared Telephoto Lens (2X magnification)

    Order #: 2X-LENS

    Mfg #: 4961163

    Availability: Ships in 3-4 weeks
    Special Price $3,590.39 Regular Price $3,739.99
  3. Fluke T3000FC
    Fluke T3000FC FC Wireless Type K Temperature Module
    FC Wireless Type K Temperature Module

    Order #: T3000-FC

    Mfg #: 4401563

    Availability:
    In stock
    Special Price $304.76 Regular Price $367.19
  4. Fluke 0.75X-WIDE-LENS Infrared Wide Angle Lens
    Fluke 0.75X WIDE LENS Infrared Wide Angle Lens
    Infrared Wide Angle Lens

    Order #: 0.75X-WIDE-LENS

    Mfg #: 4961174

    Availability: Ships in 3-4 weeks
    $1,876.79
  5. Fluke V3000FC
    Fluke V3000FC FC Wireless AC Voltage Module
    FC Wireless AC Voltage Module

    Order #: V3000-FC

    Mfg #: 4401556

    Availability: Ships in 3-4 weeks
    Special Price $304.76 Regular Price $367.19
  6. Fluke A3001FC
    Fluke A3001FC FC Wireless IFLEX AC Current Module
    FC Wireless IFLEX AC Current Module

    Order #: A3001-FC

    Mfg #: 4459439

    Availability:
    In stock
    Special Price $369.78 Regular Price $445.52
  7. Fluke A3002FC FC Wireless AC/DC Current Module
    Fluke A3002FC FC Wireless AC/DC Current Module
    FC Wireless AC/DC Current Module

    Order #: A3002-FC

    Mfg #: 4459442

    Availability: Ships in 3-4 weeks
    Special Price $191.88 Regular Price $231.19
  8. Fluke TIX5XX-NECK
    Fluke TIX5XX-NECK TIX5 Thermal imager Neck strap
    TIX5 Thermal imager Neck strap

    Order #: TIXXX-NECK

    Mfg #: 4574715

    Availability: Ships in 3-4 weeks
    Special Price $65.46 Regular Price $78.87
  9. Fluke 375-FC
    Fluke 375-FC 600A AC/DC TRMS Wireless Clamp
    600A AC/DC TRMS Wireless Clamp

    Order #: 375-FC

    Mfg #: 5065976

    Availability:
    In stock
    Special Price $661.79 Regular Price $788.79
  10. Fluke TIX5XX-HDMI TIX5 HDMI Cable
    Fluke TIX5XX-HDMI TIX5 HDMI Cable
    TIX5 HDMI Cable

    Order #: TIX5XX-HDMI

    Mfg #: 4615511

    Availability: Ships in 3-4 weeks
    Special Price $180.59 Regular Price $217.59
  11. Fluke 376 FC 1000A AC/DC TRMS Wireless Clamp Meter
    Fluke 376 FC 1000A AC/DC Trms wireless clamp with Iflex
    1000A AC/DC Trms wireless clamp with Iflex

    Order #: 376 FC

    Mfg #: 5065965

    Availability:
    In stock
    Special Price $753.07 Regular Price $897.59
  12. Fluke FLK-TI-BLUETOOTH
    Fluke FLK-TI-BLUETOOTH Bluetooth Headset for the Ti4/3/200 TIX520/TIX560 Thermal Imagers
    Bluetooth Headset Ti4/3/200 TIX520/TIX560

    Order #: TI-BLUETOOTH

    Mfg #: 4603258

    Availability: Ships in 3-4 weeks
    Special Price $129.80 Regular Price $156.39
  13. Amprobe TIC-300-PRO High Energy TIC Tracer Non - Contact AC Voltage Detector
    Amprobe TIC-300-PRO High Energy TIC Tracer Non - Contact AC Voltage Detector
    High Energy TIC Tracer Non - Contact AC Voltage Detector

    Order #: TIC-300PRO

    Mfg #: 3467441

    Availability:
    In stock
    Special Price $486.07 Regular Price $579.35
Detector resolution 640 x 480 (307,200 pixels)
SuperResolution Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image
Touchscreen display landscape color VGA (640 x 480) LCD with backlight
Articulating Lens Rotatable 240 degrees
Image quality
IFOV with standard lens (spatial resolution) 0.93 mRad, D:S 1065:1
Field of view 34 °H x 24 °V
Minimum focus distance 15 cm (approx. 6 in)
IR-Fusion® Picture-in-picture (PIP), full screen infrared, AutoBlend™ mode and on-camera continuous blending
IFOV with optional 2x telephoto smart lens 0.46 mRad; D:S 2145:1
Field of view 17 °H x 12 °V
Minimum focus distance 45cm (approx. 18 in)
IR-Fusion Picture-in-picture and full screen
IFOV with optional 4x telephoto smart lens 0.23 mRad, D:S is 4300:1
Field of view 8.5 °H x 6 °V
Minimum focus distance 1.5 m (approx 5 ft)
IR-Fusion Picture-in-picture and full screen
IFOV with optional wide-angle smart lens 1.85 mRad, D:S 525:1
Field of view 68 °H x 48 °V
>Minimum focus distance 15 cm (approx. 6 in)
IR-Fusion Full screen
Thermal sensitivity (NETD) - Best possible ≤ 0.05 °C at 30 °C target temp (50 mK)
Wireless connectivity Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
Fluke Connect® app compatible Yes (where available)
Fluke Connect tool compatible Yes (where available). Connects wireless to select Fluke Connect™ enabled tools. Five simultaneous connections supported.
Fluke Connect desktop software Yes, full analysis and report software
LaserSharp® Auto Focus Yes
IR-PhotoNotes™ Yes, (5 images)
Laser distance meter Yes
Voice annotation Yes
Text annotation Yes
Video recording Standard and radiometric
Remote display viewing Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB or WiFi network to Fluke Connect software on a PC; via WiFi hotspot to the Fluke Connect app on a smartphone*; or via HDMI to a TV monitor
Temperature measurement range (not calibrated below -10 °C) -20 °C to +800 °C (-4 °F to
+1472 °F)
Accuracy ± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
