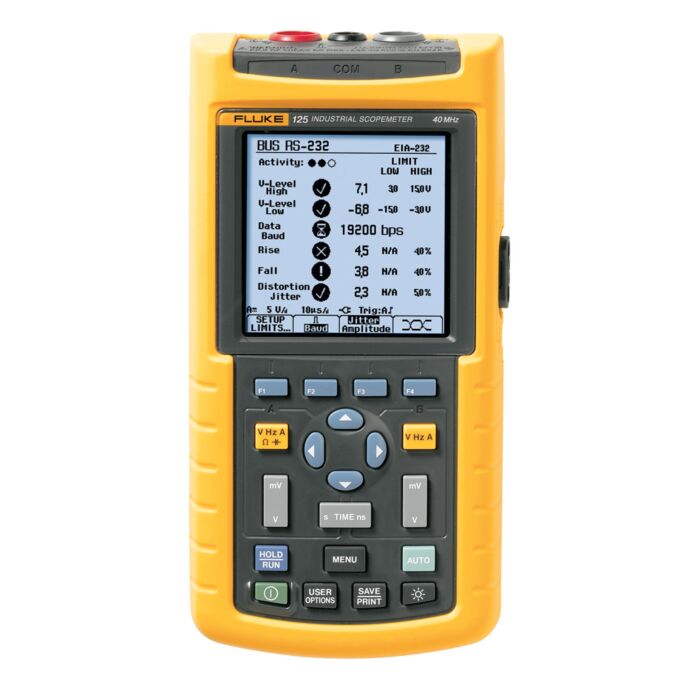

Fluke 125/003S for Rent, ScopeMeter with Software & SCC120 Kit, 40MHz

Overview

ScopeMeter® 125/S: All the power of the 120-Series plus Industrial Bus Health Test capabilities and advanced power measurements on top

The compact ScopeMeter® is the rugged solution for industrial troubleshooting and installation applications. It™s a truly integrated test tool, with oscilloscope, multimeter and 'paperless' recorder in one affordable, easy-to-use instrument. Find fast answers to problems in machinery, instrumentation, control and power systems. Based on the Fluke 120 series, the 125/S has all the capabilities of the 124 ScopeMeter extended with the capability to measure and analyze the signal quality on the common industrial buses.

Product Highlights

• Dual-input 40 MHz or 20 MHz digital oscilloscope
• Two 5,000 counts true-RMS digital multimeters
• Automatic measurements
• A dual-input TrendPlot recorder
• Connect-and-View trigger simplicity for hands-off operation
• Shielded test leads for oscilloscope, resistance and continuity measurements
• 10:1 Voltage Probe included with Fluke 124 and 125 for high frequency measurements
• Up to 7 hours battery operation
• 600 V CAT III safety certified
• Optically-isolated interface for PC connection
• Fluke 125 gives bus health and power measurements

Each Unit Includes

• I400s AC Current Clamp
• VPS40 Voltage Probe, 40 MHz, 10:1
• AC120 Alligator clips
• BB120 Shielded BNC adapter
• Getting started booklet
• HC120 Hook Clips
• PM 8907 Battery Charger/Line Voltage Adapter
• STL120 Shielded Test Lead Set
• BP 120 MH
• User manual (CD-ROM)
• OC4USB Optically Isolated RS-232 Adapter/Cable
• FlukeView for ScopeMeter Windows® software
