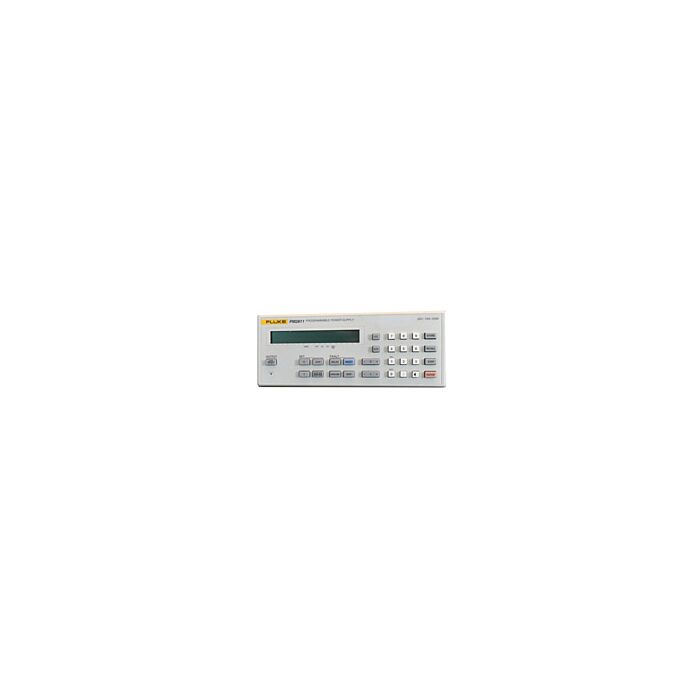

Fluke PM2811 for Rent, 30V/10A, Programmable Power Supply, Single Output, GPIB

Fluke PM2811 Highlights

• OUTPUT module 30 V - 10 A - 60 W
• Output Voltage range 0 to 30 V
• Output Current range 0 to 10 A
• Output Power 60 W
• Overvoltage protection range 2 to 32 V
• Accuracy (at calibration temperature)
• Output Voltage +/- 0.04 % of setting + 10 mV
• Output Current +/- 0.1 % of setting + 50 mA
• Over Voltage Protection +/- 0.5 % of setting + 150 mV
• Temperature coefficient
• Output Voltage (0.016 % of setting + 2 mV)/K
• Output Current (0.05 % of setting + 2 mA)/K
• Long term drift (in an 8 hour period)
• Output Voltage 0.04 % of setting + 5 mV
• Output Current 0.05 % of setting + 10 mA
• Programming Resolution (12bit)
• Output Voltage 7.5 mV/LSB
• Output Current 2.5 mA/LSB
• Over Voltage Protection 7.5 mV/LSB
• Source Effect (for any line voltage change within rating)
• Voltage +/- (0.01 % of setting + 2 mV)
• Current +/- (0.02 % of setting + 2 mA)
• Load Effect (load change 10 % to 90 % or 90 % to 10 % full load)
• Constant Voltage +/- (0.01 % of setting + 5 mV)
• Constant Current +/- (0.02 % of setting + 5 mA)
• Load cross regulation Negligible for both voltage and current
• Output Noise (PARD)
• Constant Voltage pp/rms 15 mV/3 mV
• Constant Current rms 10 mA
• Switching Frequency approx. 20 kHz approx.
• READBACK ACCURACY:(referred to the output terminals)
• Accuracy (at calibration temperature)
• Voltage +/- (0.05 % + 25 mV)
• Current +/- (0.1 % + 30 mA)
• Measuring Resolution (12 bit)
• Voltage resolution to interface 7.5 mV
• Current resolution to interface 2.5 mA
• Voltage resolution to display 10 mV
• Current resolution to display 10 mA
• Max. Current at Reverse voltage 10 A
• REMOTE SENSE > 0.25 Volt drop per lead (at open sense connections, the output voltage will not be more than 3 V above the programmed value)
• DYNAMIC OPERATION I=1 A between 1 and 10A between 0.5 and 5A between 1 and 10A
• Settling band +/- 50 mV
• dI/dt < 1 A/s
• Overshoot < 150 mV
• Recovery time < 1 ms
• Programming response (measured with resistive load)
• Up (0 V to max. output) 100 ms @ 2 A
• Up (0 V to max. output) 50 ms @ (no load)
• Down (max.output to 1 V) 100 ms @ 2 A
• Down (max.output to 1 V) 50 ms @ (no load)
• Reprogramming delay
• Range 50 ms to 60 s
• Resolution 1 ms
• Default 50 ms
• Step Interval time up to 60 s
• GPIB
