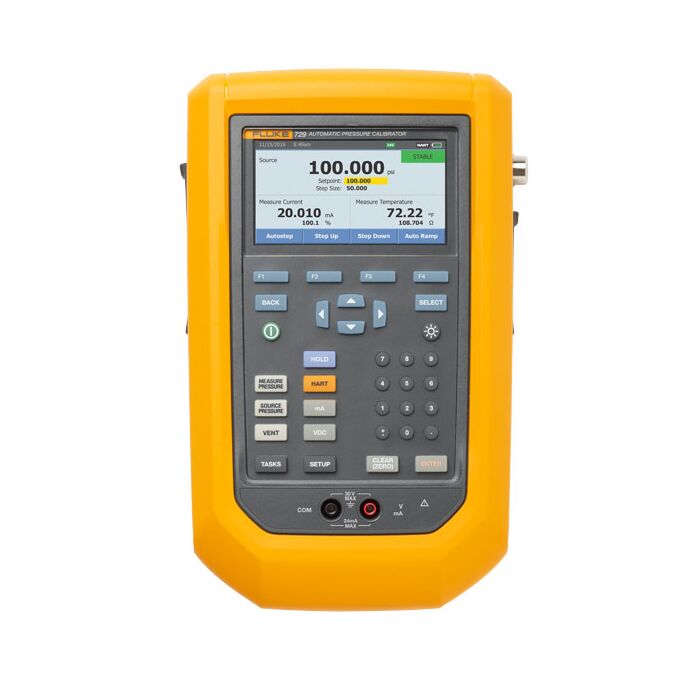

Fluke 729 Automatic Pressure Calibrator, 300 PSI, 20 BAR

Product Highlights

• Automatic pressure generation and regulation to 300 psi
• Easily document the process using onboard test templates
• Automatic internal fine-pressure adjustment
• Measure, source and simulate 4 to 20 mA signals
• 24V loop power for powering transmitters for tests
• Bright dual/triple-channel color graphical display
• HART communication for testing HART smart transmitters
• Built in leak testing for verifying test setups for leakage
• 3-year warranty
• Fluke Connect® App compatibility
• Measure temperature with optional 720RTD probe
• Measure Vdc for testing 1 V dc to 5 V dc output transmitters
• Compatible with 700 Series & 750 Series pressure modules
• Upload documented test results to DPCTrack2™ Calibration Management Software
• Innovative semi-rigid carrying case designed for field work
• Pressure Source: Internal Electric Pump
• Measurement Functions: Pressure, mA DC
• Pressure Range with External Modules: -15 psi to 10,000 psi
• Internal Pressure Range Accuracy: +/-0.02% Full Scale
• Loop Supply Voltage: 24VDC
• Current Measurement Range: 0 to 24mA DC
• Source Current: 0 to 24mA DC
• Voltage Measurement Range: 0 to 30VDC
• RTD Type: PT 100, PT 385

Each Unit Includes

• soft case
• stackable test leads
• AC280 hook clips
• alligator clips
• test probes
• magnetic hanger kit
• carrying strap
• quick start guide
• safety sheet
• power supply
• rechargeable battery
• hose kit with push fit adapters
• hanging clip
• USB cable
• 1/8 in FNPT to 1/4 in FNPT adapter
• 1/8 in FNPT to F-M20 adapter
• 1/8 in FNPT to 1/4 in FBSP adapter
• PTFE tape
• 2 sintered filters
• water trap drain
• valve tuning hoses
