Fluke 718-100G VIP Kit - Pressure Calibrator -12 to 100 PSIG with FREE TOOLS!
Pressure Calibrator -12 to 100 PSIG with FREE TOOLS!
Order #: 718-100G-VIP
Mfg #: 665080
$5,261.19
Fluke 718-100G VIP Kit - Pressure Calibrator -12 to 100 PSIG with FREE TOOLS!
Pressure Calibrator -12 to 100 PSIG with FREE TOOLS!
Order #: 718-100G-VIP
Mfg #: 665080
$5,261.19
SAVE OVER $220! FREE Tools include:
- Tubing and Fittings Kit
- Soft Carrying Case
- Fluke TL220 Industrial Test Lead Set
Availability:
In stock
Overview
The complete solution to pressure calibration

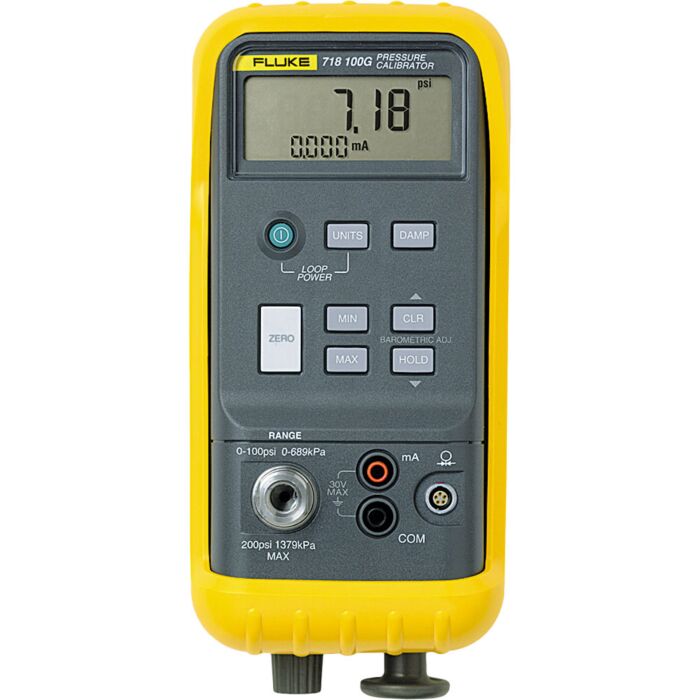

The Fluke 718 Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.
Free Tools Include:
- Tubing and Fittings Kit
- Soft Carrying Case
- Fluke TL220 Industrial Test Lead Set
Product Highlights
- Has Internal 100 PSIG Sensor & Accepts 700 Series Pressure Modules
- Generates Pressure/Vacuum via Built-in Hand Pump with Vernier & Bleed Valve
- Selectable Engineering Units
- Measures mA, Features 24V Loop Power Supply
- Min/Max/Hold, Zero & Damp Functions
Each Unit Includes
- Protective Yellow Holster
- TL75 Test Leads & AC720 Test Clips
- User Manual
Webinars
-
Fluke 750P Series Pressure ModulesConfigure your Fluke 750 Series Pressure Module today!Order #: 750P
Mfg #: 750P
Availability:In stock$2,296.75 -
Transcat 5353C-GCalibration Labels-Green, Self-Laminating, 1 3/4x5/8"
Order #: 5353C-G
Mfg #: CUSTOM QCC306-GR (QZ0530GR)
Availability:In stockSpecial Price $34.41 Regular Price $36.23 -
Fluke 700PTP-1 Pneumatic Test Pump, -13 to 600PSIPneumatic Test Pump, -13 to 600PSI
Order #: 700PTP-1
Mfg #: 2811774
Availability: Ships in 4-6 weeks$1,513.39 -
Fluke 700PTPK2 Premium Pneumatic Test Pump KitPremium Pneumatic Test Pump Kit
Order #: 700PTPK2
Mfg #: 4623306
Availability:In stock$2,512.99 -
Fluke CXT170 Rugged Pelican Hard CaseRugged Pelican Hard Case
Order #: CXT170
Mfg #: 3352567
Availability:In stockSpecial Price $335.16 Regular Price $376.59 -
Fluke C550 Premium Tool Bag - Water ResistantPremium Tool Bag
Order #: C550E
Mfg #: 1547919
Availability:In stockSpecial Price $171.93 Regular Price $193.19 -
Special Price $266.63 Regular Price $299.59
-
Fluke AC220 SureGrip Alligator ClipsSureGrip Alligator Clips
Order #: AC20
Mfg #: 1610103
Availability:In stockSpecial Price $78.66 Regular Price $88.39 -
Fluke TL75 Hard Point Test Lead SetHard Point Test Lead Set
Order #: TL75
Mfg #: 855705
Availability:In stockSpecial Price $44.77 Regular Price $50.31 -
Fluke 700HTH Hydraulic Test HoseHydraulic Test Hose
Order #: 700HTH-1
Mfg #: 2811795
Availability:In stockSpecial Price $1,024.20 Regular Price $1,150.79 -
Fluke TP220 SureGrip Industrial Test ProbesSureGrip Industrial Test Probes
Order #: TP20
Mfg #: 1670056
Availability:In stockSpecial Price $38.72 Regular Price $43.51 -
Fluke 700PMP Hand Pressure Pump, 150 psi, 1000 kPaHand Pressure Pump, 150 psi, 1000 kPa
Order #: 700PMP
Mfg #: 617131
Availability:In stockSpecial Price $857.23 Regular Price $963.19 -
Fluke 700PRV-1 Pressure Relief Valve KitPressure Relief Valve Kit Valve Kit
Order #: 700PRV-1
Mfg #: 2811808
Availability: Ships in 3-4 weeksSpecial Price $1,284.25 Regular Price $1,442.99 -
Fluke TL71 Premium Test Lead SetPremium Test Lead Set
Order #: TL71
Mfg #: 1274382
Availability:In stockSpecial Price $53.24 Regular Price $59.83 -
Fluke C101 Universal Hard Carrying CaseUniversal Hard Carrying Case
Order #: 65117MM
Mfg #: 2437514
Availability:In stockSpecial Price $139.54 Regular Price $156.79 -
Fluke TL224 SureGrip Silicon Test LeadsSureGrip Silicon Test Leads
Order #: TL24
Mfg #: 1610198
Availability:In stockSpecial Price $53.24 Regular Price $59.83 -
Fluke TL221 Safety Silicone Lead Extension, 1.5mSafety Silicone Lead Extension 1.5m
Order #: TL21E
Mfg #: 2003602
Availability:In stockSpecial Price $53.24 Regular Price $59.83 -
Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability:In stockSpecial Price $133.13 Regular Price $149.59
| Technical Specifications | |
| Measure pressure | (Internal sensor) |
| Accuracy | 0.025% full scale |
| Functions | Zero, min/max, hold, damp |
| Dry air, non-corrosives only | |
| Fluke 718 1G | |
| Range | -1 psi to +1 psi, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa) |
| Resolution | 0.0001 psi, 0.001 mbar, 0.0001 kPa |
| Over pressure | 5x Full Scale |
| Functions | Zero, Min, Max, Hold, Damp |
| Fluke 718 30G | |
| Range | -12 psi to 30 psi, (-850 mbar to 2 bar, -85 to 206.84 kPa) |
| Resolution | 0.001 psi, 0.1 mbar, 0.01 kPa |
| Over pressure | 5x Full Scale |
| Functions | Zero, Min, Max, Hold, Damp |
| Fluke 718 100G | |
| Range | -12 psi to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa) |
| Resolution | 0.01 psi, 0.1 mbar, 0.01 kPa |
| Over pressure | 2x Full Scale |
| Functions | Zero, Min, Max, Hold, Damp |
| Fluke 718 300G | |
| Range | -12 psi to 300 psi, (-850 mbar to 20 bar, -85 to 2068.42 kPa) |
| Resolution | 0.01 psi, 1 mbar, 0.1 kPa |
| Over pressure | 375 psi 25 bar |
| Functions | Zero, Min, Max, Hold, Damp |
| Fluke 718 series via 700 Series Pressure Modules | |
| Range | 29 pressure modules, 0 – 1 inH20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs |
| Resolution | Per pressure module specs |
| Accuracy | To 0.025% of full span, per pressure module specs |
| Functions | Zero, Min, Max, Hold, Damp |
| Media compatibility per pressure module specs | |
| Fluke 718 Series Via Built in Pump | |
| Range | -12 psi or -850 mbar to full scale Supported Pressure Units; psi, inH20 (4°C), inH20 (20°C), cmH20 (4°C), cmH20 (20°C), bar, mbar, kPa, inHg, mmHg, kg/cm |
| Loop power range | 24 V DC |
| Accuracy | ±10% |
| Drive; 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for battery 5.8 to 6.8 V | |
| mA Measure | |
| Range | 0 mA to 24 mA |
| Resolution | 0.001 mA |
| Accuracy | 0.015% + 1 count |
| General Specifications | |
| Maximum voltage | 30 volts (non-operating) |
| Temperature | -40°C to 60°C |
| Operating temperature | -10°C to 55°C |
| Relative humidity | 95% (10°C to 30°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C) |
| Operating altitude | 3,000 M max |
| Shock | 1 M drop test |
| Vibration | Random, 2 g, 5 Hz – 500 Hz |
| Safety | CSA C22.2 No. 1010.1: 1992 |
| EMC | EN50082-1: 1992 and EN55022: 1994 Class B |
| Size | 216 x 94 x 66 mm (8.50 x 3.72 x 2.60 in) |
| Weight | 992 g (35 oz) |
| Power, battery life | 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718 |
| Battery life | 4 to 20 hours typical, depending on functions used |
| Warranty | Three years (one year on pressure pump in Fluke 718) |
| Display | LCD, 5 digit pressure and current simultaneous |
