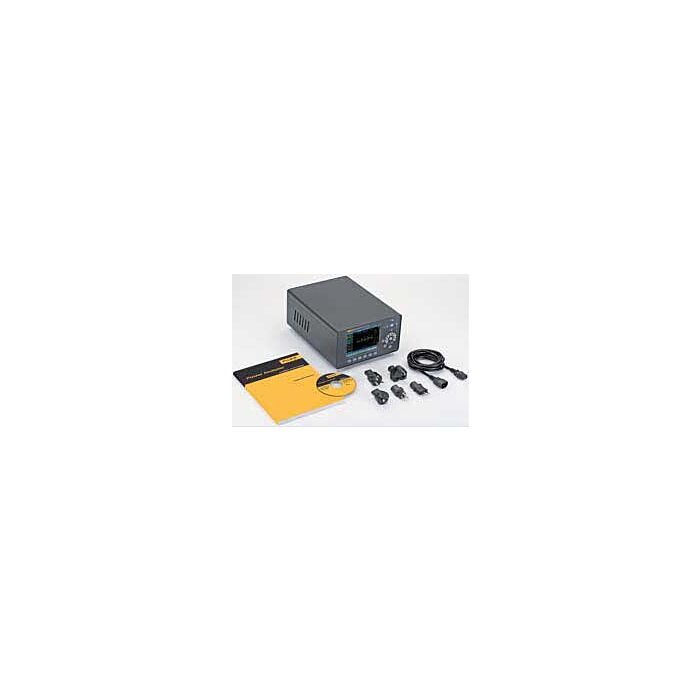

Fluke N4K 3PP42 Norma 4000, Three Phase Power Analyzer with three PP42 Input Modules

Product Highlights

• Compact design makes it easy to carry and saves working space.
• Simple user interface ensures easy, intuitive operation.
• A variety of standard configurations allows users to choose the exact functionality required for their unique application.
• Simultaneous parallel acquisition of all phases allows accurate viewing of dynamic events on all phases at exactly the same point in time.
• All inputs are galvanically isolated to avoid short circuits in all applications.
• Voltage, current and power harmonics measured up to the 40th harmonic for complete analysis.
• FFT analysis, vector diagram, and Digital Oscilloscope (DSO) mode included in the base unit for complete analysis capability.
• User-selectable average time – from 15ms up to 3600s – for dynamic measurements.
• 4 MB on-board memory (expandable to 128 MB) for storage of measured values.
• Fast and easy connection to a PC – RS232 and USB included as standard; optional IEEE488, Ethernet, or USB2.0.
• PI1 process interface to measure torque and speed with external sensors, plus four analog outputs for easy use on motor and drive applications.
• 341kHz or 1 MHz sample rates for detailed signal analysis.
• Bandwidth from dc to 3 MHz / 10 MHz for reliable measurement precision.
• Fluke NormaView PC software for data download, analysis & report writing

Each Unit Includes

• Power supply cable
• 5.7“ / 144 mm Color display
• RS232/USB interface for data download
• Space for three power-phases and options
• Fluke NormaView PC software
• Color user’s manual
• Test certifi cate with measurement values full point is : Test certifi cate with measurement values
