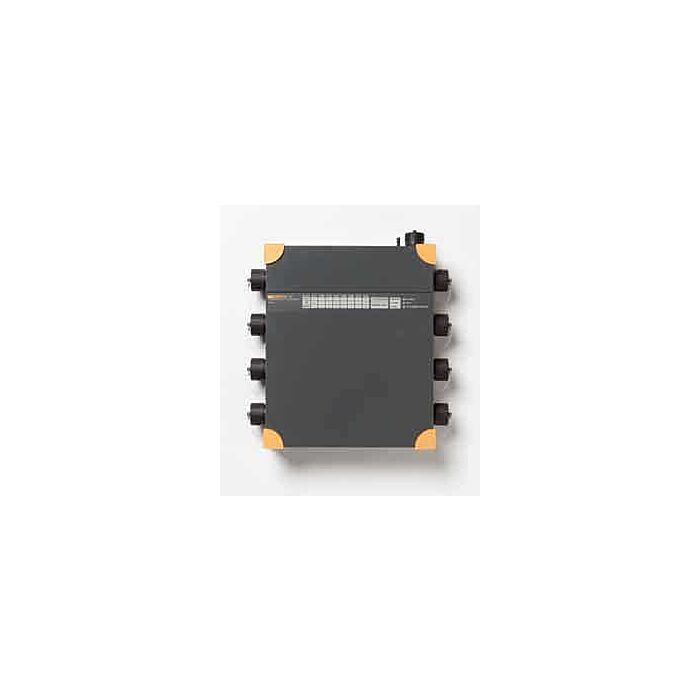

Fluke 1760TR BASIC Power Quality Recorder with Trans- Topas

Product Highlights

• Fully Class-A compliant: Conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
• GPS time synchronization: Correlate data with events or datasets from other instruments with precision
• Flexible and fully configurable thresholds and scale factors: Allows user to pinpoint specific issues by defining the detailed criteria for detection and recording of disturbances.
• Uninterrupted power supply (40 minutes): Never miss important events - even record the beginning and end of interruptions and outages to help determine the cause
• 10 MHz, 6000 Vpk waveform capture: Get a detailed picture of even the shortest event
• 2 GB data memory: Enables detailed, simultaneous recording of numerous power parameters for long periods of time
• Comprehensive software included: Provides trend diagrams for root cause analysis, statistical summaries, report writing and real-time data monitoring in the online mode
• Plug and play: Allows quick setup with automatic sensor detection; sensors are instrument powered, eliminating the need for batteries
• Rugged field design: Insulated housing and a solid state design with no rotating components enable reliable testing under nearly any conditions

Each Unit Includes

• Internal Flash-memory 2 GB
• PQ Analyze software on CD-ROM
• Ethernet cable for network connection (1)
• Crosslink Ethernet cable for direct PC connection (1)
• Mains cable (1)
• Operational manuals
• Carrying bag
• Fast transient analysis up to 10 MHz
