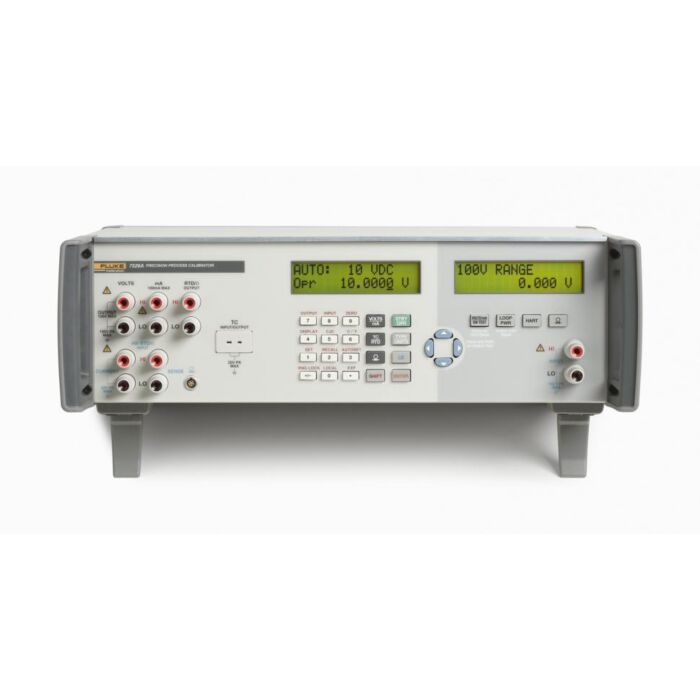

Fluke Calibration 7526A Precision Process Calibrator (115V)
Precision Process Calibrator (115V)

Order #: 7526A-156

Mfg #: 4232116

Questions about availability or need help? Contact Us:

(800) 633-0561
$15,645.00

Fluke Calibration 7526A Precision Process Calibrator (115V)

Precision Process Calibrator (115V)

Order #: 7526A-156

Mfg #: 4232116

$15,645.00
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

“Doing more with less” is a requirement every process manufacturer faces today. To maintain product quality, reduce waste, improve efficiency and conform to regulatory standards, instruments that measure process variables such as temperature and pressure must be calibrated at regular intervals. Selecting the right calibrator for the job, however, can be tricky—especially when attempting to balance precision and versatility with cost. Less expensive than high-end multi-product calibrators, yet more precise and versatile than handheld field calibrators, the 7526A is a “best fit” for instrument shops that value precision, versatility and economy.

The user interface includes cursor controls, function keys and a ten-key keypad, making it easy to navigate through intuitive menus; store and recall up to nine setpoints for each input/output parameter; enter RTD or SPRT coefficients; and easily change display units with a key press. With two LCD displays, you can easily view both source and measurement results simultaneously.

For increased efficiency and calibration throughput, or to operate an automated test system (ATE), combine the 7526A with MET/CAL® Plus Calibration Management Software. MET/CAL Plus is a powerful application for creating, editing and testing calibration procedures and collecting and reporting results on a wide variety of instruments. It includes MET/CAL software– the industry leading software for automated calibration, and MET/TEAM™ Express–a dedicated system to manage your test and measurement assets. Or choose MET/TEAM standard edition for fully-featured enterprise calibration asset management, with optional modules for on-site calibration, commerce management, and customer web portal. The 7526A standard computer interface includes RS-232 and GPIB (IEEE-488). A USB-to-serial adapter cable is also included with the calibrator as standard.

Calibrating the electronics portion of a temperature transmitter is only a part of a complete calibration. You also need to calibrate the temperature sensor itself, whether an RTD or thermocouple. Ignoring the sensor can be a mistake, because temperature sensors are responsible for more than 75% of the output errors in temperature transmitters. You can calibrate the temperature sensor individually, or calibrate both the sensor and the transmitter as a system using a dry-block calibrator such as the Fluke Calibration 914X Series Field Metrology Wells. The Field Metrology Wells were designed specifically with process calibration in mind—optimizing speed to temperature, portability, stability and accuracy. The 7526A and a 914X dry-block calibrator make a perfect combination for calibrating just about any temperature transmitter.

The P5500 series of comparison test pumps can be used with the 7526A and Fluke 700P and 750P series pressure modules to generate or control test pressures. The unique test port configuration allows for easy, tool-free connections of a wide variety of connection sizes and types, including NPT, BSP, and metric threads. The P5510 includes a built-in hand pump to generate vacuum or positive pressure up to 300 psi (2 MPa). The P5513 allows for precise control of pneumatic pressures up to 3000 psi (20 MPa). An external pressure supply is required. The P5514 allows for generation of hydraulic pressures up to 10 000 psi (70 MPa). The P5515 includes a built-in priming pump and screw pump that allows for pressure generation up to 20 000 psi (140 MPa). Both the P5514 and P5515 can be used with oil or water. Special versions are available with ethylene propylene seals for use with more aggressive fluids.

  • Versatility, precision and value, combined into a single bench top process calibration tool
  • Sources and measures dc voltage, current, resistance, RTDs and thermocouples
  • Precision pressure measurement using Fluke 700 series pressure modules
  • Includes 24 V dc transmitter loop power supply
  • Measures 4-20 mA loop current
  • Includes automated switch-test function
  • Accepts ITS-90 coefficients for accurate SPRT measurements
  • Compatible with MET/CAL Calibration Software

Each Unit Includes

  • Calibration report
  • User manual CD
  • Getting started guide
  • Power cord
  • Thermocouple shorting jumper
  • USB to serial adapter cable
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke 750P Series Pressure Modules
    Fluke 750P Series Pressure Modules
    Configure your Fluke 750 Series Pressure Module today!

    Order #: 750P

    Mfg #: 750P

    Availability:
    In stock
    $2,296.75
  2. Fluke 700TC1 T/C Mini Plug Kit
    Fluke 700TC1 T/C Mini Plug Kit
    T/C Mini Plug Kit

    Order #: 700TC1

    Mfg #: 620119

    Availability:
    In stock
    Special Price $164.79 Regular Price $198.55
  3. Fluke 700TC2
    Fluke 700TC2 T/C Mini Connector Kit
    T/C Mini Connector Kit

    Order #: 700TC2

    Mfg #: 620127

    Availability:
    In stock
    Special Price $164.79 Regular Price $198.55
  4. Fluke 71X Hose Kit Accessory for Fluke Pressure Calibrators 71X
    Fluke 71X Hose Kit Accessory for Fluke Pressure Calibrators
    Hose Kit Accessory for Fluke Pressure Calibrators

    Order #: 71X

    Mfg #: 3345825

    Availability:
    In stock
    Special Price $199.78 Regular Price $240.71

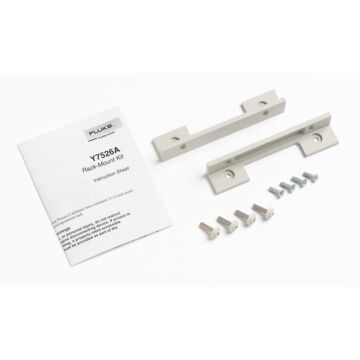

  5. Fluke Calibration Y7526A Rack Mount Kit for Precision Process Calibrator
    Fluke Calibration Y7526A Rack Mount Kit for Precision Process Calibrator
    Rack Mount Kit for Precision Process Calibrator

    Order #: Y7526A

    Mfg #: 4233827

    Availability: Ships in 3-4 weeks
    Special Price $1,050.44 Regular Price $1,265.60
  6. Fluke 700HTH-1
    Fluke 700HTH Hydraulic Test Hose
    Hydraulic Test Hose

    Order #: 700HTH-1

    Mfg #: 2811795

    Availability: Ships in 4-6 weeks
    Special Price $908.67 Regular Price $1,094.79
  7. Fluke 700HTP-2
    Fluke 700HTP-2 Hydraulic Test Pump, 10,000PSI
    Hydraulic Test Pump, 10,000PSI/ 690BAR

    Order #: 700HTP-2

    Mfg #: 4096855

    Availability:
    In stock
    $2,212.71
  8. Fluke 700ILF In-Line Moisture Filter
    Fluke 700ILF In-Line Moisture Filter
    In-Line Moisture Filter

    Order #: 700ILF

    Mfg #: 1566730

    Availability:
    This item is no longer available. Please contact Transcat Customer Service for assistance with alternative product suggestions to meet your exact needs.
  9. Fluke 700LTP-1 Low Pressure Test Pump, 100PSI (7 BAR)
    Fluke 700LTP-1 Low Pressure Test Pump, 100PSI (7 BAR)
    Low Pressure Test Pump, 100PSI/7 BAR

    Order #: 700LTP-1

    Mfg #: 2811763

    Availability:
    In stock
    $1,459.27

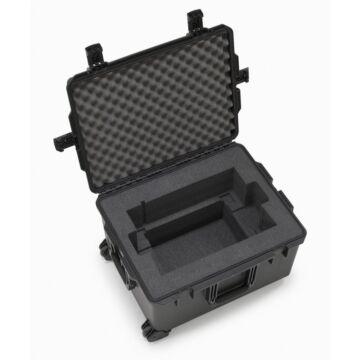

  10. Fluke Calibration 7526A-CASE Carrying Case for 7526A Strong, lightweight resin shell
