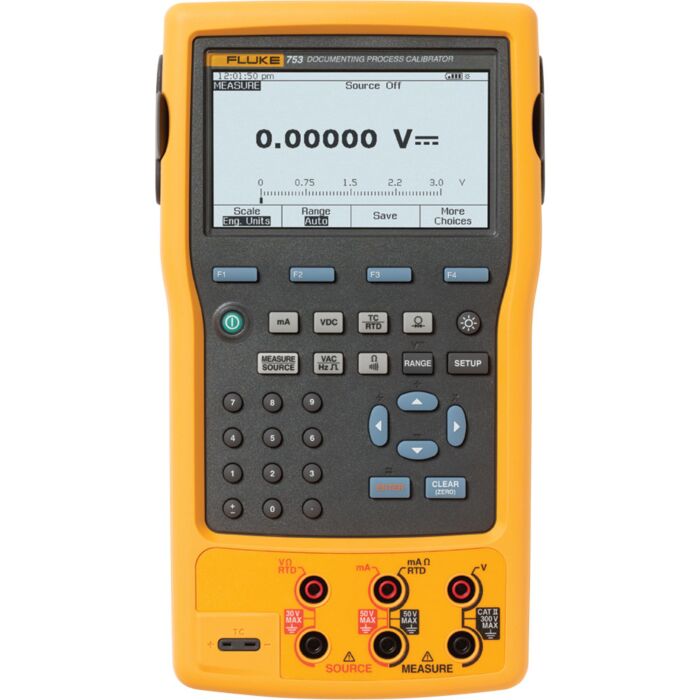

Fluke 753 Documenting Process Calibrator, Non-Bus

Documenting Process Calibrator,Non-Bus

Order #: 753

Mfg #: 3977641

In Stock!

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$11,588.55

Fluke's next generation Documenting, Multifunction Calibrator improving upon the popular 74X Series.

Availability:

In stock

Choose Your Options:

New Purchase Calibration

None

Calibration without Data + $468.47

Calibration with Data + $621.35

Accredited Calibration with Data and Uncertainties + $809.17

Add Calibration

Qty

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Overview

SAVE OVER $624! FREE Tools include:

JKTE Mini Plug Set
Leatherman SIDEKICK Multi-Tool
Fluke BP7240 HZM Li-ion Battery Pack
Hard carrying Case
Pack of 128 Self Laminating Green Calibration Labels

View the Fluke 753 with FREE TOOLS!

Fluke 753 Overview

You're going to love what we've done with your calibrator.

The 753 is everything you needed and wished for in the 743B and more!

The 753 does the work of several tools - sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device. You'll fall in love with the new improved graphical screen, Li-Ion battery for longer life, USB port and new accessories to complete the package.

For documentation, the 753 automates calibration procedures and captures your data. And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations.

Want HART communication built into your 753 calibrator? Consider the Fluke 754 Documenting Process Calibrator with HART.

Fluke 753 Highlights

Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
Power transmitters during test using loop supply with simultaneous mA measurement
Measure/source pressure using any of 29 Fluke pressure modules
Advanced features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and more
Includes the new C799 Field soft case
Three-year warranty

Each Fluke 753 Includes

Three sets of stackable test leads
Three sets of TP220 test probes with three sets of “extended tooth” alligator clips
Two sets AC280 hook clips
BP7240 Li-ion battery pack
BC7240 battery charger
C799 field soft case
USB communication cable
Getting started guide
Instruction manual on CDROM
NIST traceable certificate of calibration

Webinars

Automating and Documenting Temperature Calibration Webinar with Fluke Calibration

Accessories

Fluke 700TC2 T/C Mini Connector Kit
T/C Mini Connector Kit

Order #: 700TC2

Mfg #: 620127

Availability:
In stock

Special Price $164.79 Regular Price $198.55

Qty
Fluke 750P Series Pressure Modules
Configure your Fluke 750 Series Pressure Module today!

Order #: 750P

Mfg #: 750P

Availability:
In stock

$2,296.75

Qty
Transcat 5353C-G
Calibration Labels-Green, Self-Laminating, 1 3/4x5/8"

Order #: 5353C-G

Mfg #: CUSTOM QCC306-GR (QZ0530GR)

Availability:
In stock

Special Price $32.11 Regular Price $33.81

Qty
Fluke BC7240 Battery Charger/Eliminator
Battery Charger/Eliminator

Order #: BC7240

Mfg #: 4022655

Availability:
In stock

Special Price $121.90 Regular Price $146.87

Qty
Fluke C700 Hard Carrying Case for 700 Series Calibrators
Hard Carrying Case for 700 Series

Order #: C700

Mfg #: 606928

Availability: Ships in 3-4 weeks

$454.99

Qty
Fluke 700PCK Pressure Module Calibration Kit
Pressure Module Calibration Kit

Order #: 700PCK

Mfg #: 100062

Availability:
In stock

$2,551.35

Qty
Fluke 750 SW DPC/TRACK2 Calibration Management Software
Calibration Management Software

Order #: 750SW

Mfg #: 4090343

Availability:
In stock

$7,252.87

Qty
Fluke 700PTP-1 Pneumatic Test Pump, -13 to 600PSI
Pneumatic Test Pump, -13 to 600PSI

Order #: 700PTP-1

Mfg #: 2811774

Availability: Ships in 3-4 weeks

$1,440.23

Qty
Fluke 754HCC Smart Instrument Communication Cable
Smart Instrument Communication Cable

Order #: 754HCC

Mfg #: 3829410

Availability:
In stock

Special Price $164.79 Regular Price $198.55

Qty
Fluke 700PMP Hand Pressure Pump, 150 psi, 1000 kPa
Hand Pressure Pump, 150 psi, 1000 kPa

Order #: 700PMP

Mfg #: 617131

Availability:
In stock

Special Price $760.80 Regular Price $916.63

Qty
Fluke 700TLK Process Test Lead Kit
Process Test Lead Kit

Order #: 700TLK

Mfg #: 3829398

Availability:
In stock

Special Price $241.55 Regular Price $291.03

Qty
Fluke 700HTH Hydraulic Test Hose
Hydraulic Test Hose

Order #: 700HTH-1

Mfg #: 2811795

Availability:
In stock

Special Price $908.67 Regular Price $1,094.79

Qty
Fluke 700PRV-1 Pressure Relief Valve Kit
Pressure Relief Valve Kit Valve Kit

Order #: 700PRV-1

Mfg #: 2811808

Availability: Ships in 3-4 weeks

Special Price $1,064.45 Regular Price $1,282.47

Qty
Fluke 700TC1 T/C Mini Plug Kit
T/C Mini Plug Kit

Order #: 700TC1

Mfg #: 620119

Availability:
In stock

Special Price $164.79 Regular Price $198.55

Qty
Fluke 700IV Current Shunt
Current Shunt

Order #: 700IV

Mfg #: 202561

Availability: Ships in 3-4 weeks

Special Price $627.60 Regular Price $756.15

Qty
Fluke 700LTP-1 Low Pressure Test Pump, 100PSI (7 BAR)
Low Pressure Test Pump, 100PSI/7 BAR

Order #: 700LTP-1

Mfg #: 2811763

Availability: Ships in 3-4 weeks

$1,459.27

Qty
Fluke BP7240 HZM Li-ion Battery Pack for Fluke 753 and 754
HZM Li-ion Battery Pack for Fluke 753 and 754

Order #: BP7240

Mfg #: 4022220

Availability:
In stock

Special Price $297.99 Regular Price $359.03

Qty
Fluke C799 Soft Field Case Soft Field Case
Soft Field Case

Order #: C799

Mfg #: 4021731

Availability:
In stock

Special Price $241.55 Regular Price $291.03

Qty

Specifications

Measurement Accuracy
Voltage DC	Range /Resolution	1 Year		2 Years
	100.000 mV	0.02% + 0.005 mV		0.03% + 0.005 mV
	3.00000 V	0.02% + 0.00005 V		0.03% + 0.00005 V
	30.0000 V	0.02% + 0.0005 V		0.03% + 0.0005 V
	300.00 V	0.05% + 0.05 V		0.07% + 0.05 V
Voltage AC	3.000 V (40 Hz to 500 Hz) / 0.001 V	0.5% + 0.002 V		1.0% + 0.004 V
	30.00 V (40 Hz to 500 Hz) / 0.01 V	0.5% + 0.02 V		1.0% + 0.04 V
	300.0 V (40 Hz to 500 Hz) / 0.1 V	0.5% + 0.2 V		1.0% + 0.2 V
Current DC	30.000 mA	0.01% + 5 uA		0.015% + 7 uA
	110.00 mA	0.01% + 20 uA		0.015% + 30 uA
Resistance	10.000 Ω	0.05% + 50 mΩ		0.07% + 70 mΩ
	100.00 Ω	0.05% + 50 mΩ		0.07% + 70 mΩ
	1.0000 kΩ	0.05% + 500 mΩ		0.07% + 0.5 Ω
	10.000 kΩ	0.1% + 10 Ω		0.15% + 15 Ω
Frequency	1.00 to 110.00 Hz / 0.01 Hz			0.05 Hz
	110.1 to 1100.0 Hz / 0.1 Hz			0.5 Hz
	1.101 to 11.000 kHz / 0.001 kHz			0.005 kHz
	11.01 to 50.00 kHz / 0.01 kHz			0.05 kHz
Source Accuracy
		1 Year		2 Years
Voltage DC	100.000 mV	0.01% + 0.005 mV		0.015% + 0.005 mV
	1.00000 V	0.01% + 0.00005 V		0.015% + 0.0005 V
	15.0000 V	0.01% + 0.0005 V		0.015% + 0.0005 V
Current DC	22.000 mA (source)	0.01% + 0.003 mA		0.02% + 0.003 mA
	Current sink (simulate)	0.02% + 0.007 mA		0.04% + 0.007 mA
Resistance	10.000 Ω	0.01% + 10 mΩ		0.015% + 15 mΩ
	100.00 Ω	0.01% + 20 mΩ		0.015% + 30 mΩ
	1.0000 kΩ	0.02% + 0.2 Ω		0.03% + 0.3 Ω
	10.000 kΩ	0.02% + 3 Ω		0.03% + 5 Ω
Frequency	0.1 to 10.99 Hz			0.01 Hz
	0.01 to 10.99 Hz			0.01 Hz
	11.00 to 109.99 Hz			0.1 Hz
	110.0 to 1099.9 Hz			0.1 Hz
	1.100 to 21.999 kHz			0.002 kHz
	22.000 to 50.000 kHz			0.005 kHz
Technical Data
Data log functions	Measure functions	Voltage, current, resistance, frequency, temperature, pressure
	Reading rate	1, 2, 5, 10, 20, 30, or 60 readings/minute
	Maximum record length	8000 readings (7980 for 30 or 60 readings/minute)
Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
	Rate	4 steps/second
	Trip detect	Continuity or voltage (continuity detection not available when sourcing current)
Loop power function	Voltage	Selectable, 26 V
	Accuracy	10%, 18 V minimum at 22 mA
	Maximum current	25 mA, short circuit protected
	Maximum input voltage	50 V DC
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
	Manual step	Selectable step, change with arrow buttons
	Autostep	Fully programmable for function, start delay, stepvalue, time per step, repeat
Environmental Specifications
Operating temperature	-10°C to +50°C
Storage temperature	-20°C to +60°C
Dust/water resistance	Meets IP52, IEC 529
Operating altitude	3000 m above mean sea level (9842 ft)
Safety Specifications
Agency approvals	CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993
Mechanical and General Specifications
Size	136 x 245 x 63 mm (5.4 x 9.6 x 2.5 in)
Weight	1.2 kg (2.7 lb)
Batteries	Internal Battery Pack Li-ion: 7.2 V, 4400 mAh, 30 Wh
Battery life	> 8 hours typical
Battery replacement	Via snap-shut door without opening calibrator; no tools required
Side port connections	Pressure module connector
	USB Connector to interface to your PC
	Connection for optional battery charger/eliminator
Data storage capacity	1 week of calibration procedures results
90 day specifications	The standard specification interval for the 750 Series are 1 and 2 years.
	Typical 90 day measurement and source accuracy can be estimated by dividing the one year "% of reading" or "% of output" specifications by 2.
	Floor specifications, expressed as "% of full scale" or "counts" or "ohms" remain constant.
Temperature, Resistance Temperature Detectors
Degrees or % of reading - Type (α)	Range °C	Measure °C1
		1 year		2 year
100 Ω Pt (385)	-200 to 100	0.07°C		0.14°C
	100 to 800	0.02% + 0.05°C		0.04% + 0.10°C
200 Ω Pt (385)	-200 to 100	0.07°C		0.14°C
	100 to 630	0.02% + 0.05°C		0.04% + 0.10°C
500 Ω Pt (385)	-200 to 100	0.07°C		0.14°C
	100 to 630	0.02% + 0.05°C		0.04% + 0.10°C
1000 Ω Pt (385)	-200 to 100	0.07°C		0.14°C
	100 to 630	0.02% + 0.05°C		0.04% + 0.10°C
100 Ω Pt (3916)	-200 to 100	0.07°C		0.14°C
	100 to 630	0.02% + 0.05°C		0.04% + 0.10°C
100 Ω Pt (3926)	-200 to 100	0.08°C		0.16°C
	100 to 630	0.02% + 0.06°C		0.04% + 0.12°C
10 Ω Cu (427)	-100 to 260	0.2°C		0.4°C
120 Ω Ni (672)	-80 to 260	0.1°C		0.2°C
Source current	Source °C			Allowable current2
	1 year	2 year
1 mA	0.05°C	0.10°C		0.1 mA to 10 mA
	0.0125% + 0.04°C	0.025% + 0.08°C
500 μA	0.06°C	0.12°C		0.1 mA to 1 mA
	0.017% + 0.05°C	0.034% + 0.10°C
250 μA	0.06°C	0.12°C		0.1 mA to 1 mA
	0.017% + 0.05°C	0.034% + 0.10°C
150 μA	0.06°C	0.12°C		0.1 mA to 1 mA
	0.017% + 0.05°C	0.034% + 0.10°C
1 mA	0.05°C	0.10°C		0.1 mA to 10 mA
	0.0125% + 0.04°C	0.025% + 0.08°C
1 mA	0.05°C	0.10°C		0.1 mA to 10 mA
	0.0125% + 0.04°C	0.025% + 0.08°C
3 mA	0.2°C	0.4°C		0.1 mA to 10 mA
1 mA	0.04°C	0.08°C		0.1 mA to 10 mA
1. For two and three-wire RTD measurements, add 0.4°C to the specifications.
2. Supports pulsed transmitters and PLCs with pulse times as short as 1 ms
Temperature, Thermocouples
Type	Source °C	Measure °C		Source °C
		1 year	2 years	1 year	2 years
E	-250 to -200	1.3	2	0.6	0.9
	-200 to -100	0.5	0.8	0.3	0.4
	-100 to 600	0.3	0.4	0.3	0.4
	600 to 1000	0.4	0.6	0.2	0.3
N	-200 to -100	1.0	1.5	0.6	0.9
	-100 to 900	0.5	0.8	0.5	0.8
	900 to 1300	0.6	0.9	0.3	0.4
J	-210 to -100	0.6	0.9	0.3	0.4
	-100 to 800	0.3	0.4	0.2	0.3
	800 to 1200	0.5	0.8	0.3	0.3
K	-200 to -100	0.7	1	0.4	0.6
	-100 to 400	0.3	0.4	0.3	0.4
	400 to 1200	0.5	0.8	0.3	0.4
	1200 to 1372	0.7	1	0.3	0.4
T	-250 to -200	1.7	2.5	0.9	1.4
	-200 to 0	0.6	0.9	0.4	0.6
	0 to 400	0.3	0.4	0.3	0.4
B	600 to 800	1.3	2	1	1.5
	800 to 1000	1	1.5	0.8	1.2
	1000 to 1820	0.9	1.3	0.8	1.2
R	-20 to 0	2.3	2.8	1.2	1.8
	0 to 100	1.5	2.2	1.1	1.7
	100 to 1767	1	1.5	0.9	1.4
S	-20 to 0	2.3	2.8	1.2	1.8
	0 to 200	1.5	2.1	1.1	1.7
	200 to 1400	0.9	1.4	0.9	1.4
	1400 to 1767	1.1	1.7	1	1.5
C	0 to 800	0.6	0.9	0.6	0.9
	800 to 1200	0.8	1.2	0.7	1
	1200 to 1800	1.1	1.6	0.9	1.4
	1800 to 2316	2	3	1.3	2
L	-200 to -100	0.6	0.9	0.3	0.4
	-100 to 800	0.3	0.4	0.2	0.3
	800 to 900	0.5	0.8	0.2	0.3
U	-200 to 0	0.6	0.9	0.4	0.6
	0 to 600	0.3	0.4	0.3	0.4
BP	0 to 1000	1	1.5	0.4	0.6
	1000 to 2000	1.6	2.4	0.6	0.9
	2000 to 2500	2	3	0.8	1.2
XK	-200 to 300	0.2	0.3	0.2	0.5
	300 to 800	0.4	0.6	0.3	0.6

Technical Resources

Fluke 753 / 754 Documenting Process Calibrator - User Manual
Fluke 753 / 754 Documenting Process Calibrator - User Manual Supplement
Fluke 753 / 754 Documenting Process Calibrator - DPC/TRACK User's Manual
Fluke 753 / 754 Documenting Process Calibrator - DPC/Track2 User Manual
Fluke 753 / 754 Documenting Process Calibrator - Calibration Manual
Fluke 753 / 754 Documenting Process Calibrator - Calibration Manual Supplement
Fluke 753 / 754 Documenting Process Calibrator - Getting Started
Fluke 753 / 754 Documenting Process Calibrator - CE Declaration of Conformity
Fluke 753 / 754 Documenting Process Calibrator - Statement of Memory Volatility
Fluke 753 / 754 Documenting Process Calibrator - DPC/TRACK Installation Guide
Fluke 753 / 754 Documenting Process Calibrator - DPC/Track2 Getting Started
Application - Calibrating Pressure Switches with a DPC
Application - HART Transmitter Calibration
Application - Transmitter Calibration
Fluke 753 / 754 Documenting Process Calibrator - Technical Data
Fluke Calibration - Automating and Documenting Temperature Calibration Webinar
