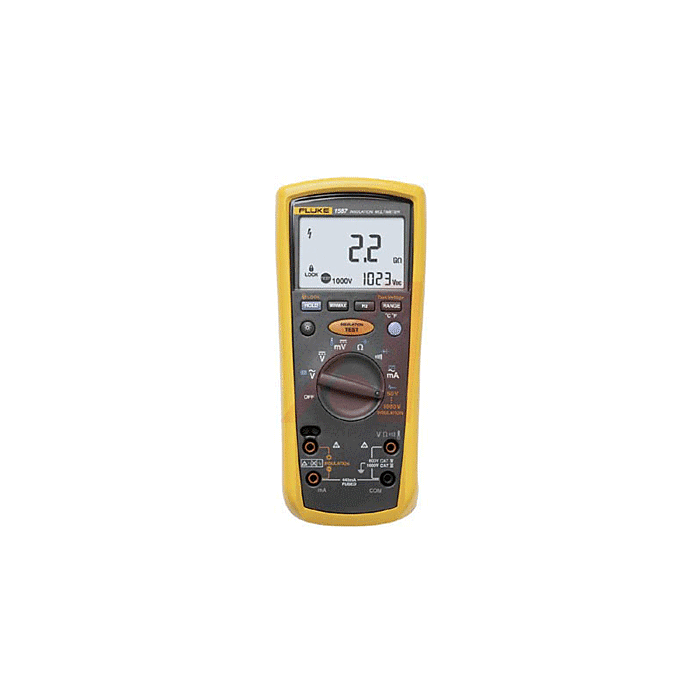

The Fluke 1587 Insulation Multimeters combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.
Whether you work on motors, generators, cables, or switch gear, the Fluke 1587 Insulation Multimeters are ideally suited to help you with your tasks and at a cost that is far less than buying the two products.
Product Highlights
Rugged, utility hard case allows you to bring everything you need for the job
AC/DC voltage, DC milliVolts, AC/DC milliamps, Resistance (W), Continuity
Large display with backlight
Insulation test (0.1 MW to 600 MW)
Insulation test voltages (500 V, 1000 V) for many applications
Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
Auto-discharge of capacitive voltage for added user protection
Auto power off to save battery power
CAT III 1000 V, CAT IV 600 V measurement category
Included accessories: Remote probe, test leads and probes, alligator clips
Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V
Agency approvals
2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V
Mechanical and General Specifications
Size
203 x 100 x 50 mm (with holster)
Weight
624 g
Warranty
3 years
Battery life alkaline
Meter use
1000 hours
Insulation test u6se
Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
