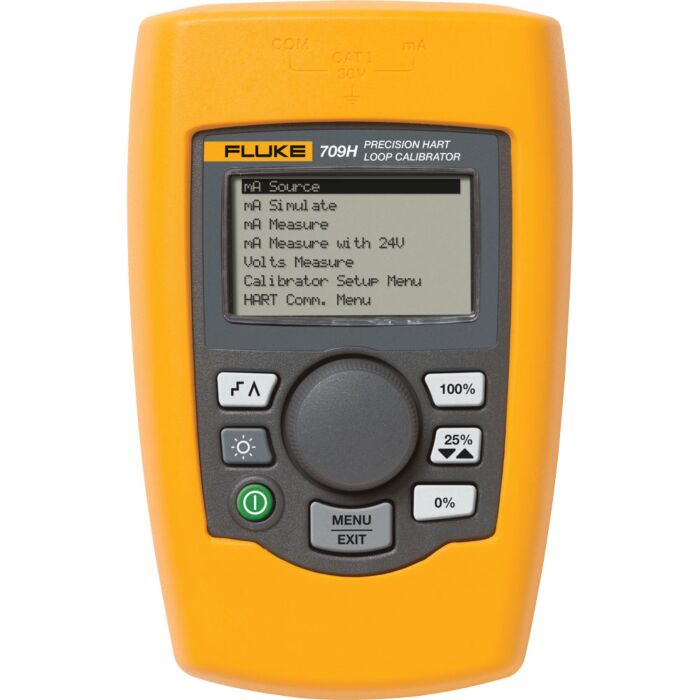

Fluke 709H Precision Current Loop Calibrator with HART

Product Highlights

• Best-in-class accuracy at 0.01% reading
• Small rugged design operates on (6) standard AAA batteries
• Intuitive user interface with Quick-Set knob for fast setup, easy use
• Built in selectable 250Ω resistor for HART communication
• 24 V DC loop power with mA Measure Mode (-25% to 125%)
• Resolution of 1 µA on mA ranges and 1 mV on voltages ranges
• Simple two wire connection for all measurements
• Auto Shutdown to conserve battery life (adjustable up to 30 minutes)
• Variable step & ramp time in seconds
• Adjustable span selection (0 to 20 mA or 4 to 20 mA)
• Valve Test (simulate defined mA values with % keys)

Each Unit Includes

• Extended tooth alligator clip set
• 75X-8014 stackable lead set
• TP220 test probes
• AC280 SureGrip hook clips
• HART cable
• Soft Case
• Six AAA batteries (installed)
• Product Manual CD-ROM
• Quick Reference Guide
• Safety Information
