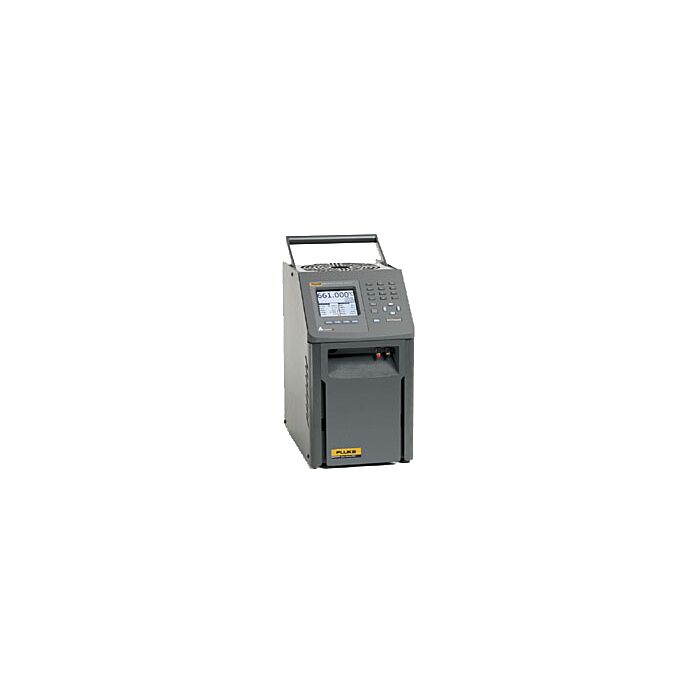

Fluke Calibration 9173-DW-R-156 Metrology Well, 700C, No Insert, 115V

Product Highlights

• For work between 50 °C and 700 °C, the Model 9173 provides unmatched performance.
• The 9173 has a display accuracy of ±0.25 °C at 700 °C and an immersion depth of 203 mm (8 in).
• Stability and uniformity performance of this unit are enough to dramatically reduce uncertainty budgets for calibrations of thermometers at high temperatures.
• Display Accuracy: ±0.2 °C at 425 °C; ±0.25 °C at 660 °C
• Stability: ±0.005 °C to 100 °C; ±0.01 °C to 425 °C; ±0.03 °C to 700 °C
• Radial Uniformity: ±0.01 °C at 100 °C; ±0.025 °C at 425 °C; ±0.04 °C at 700 °C
• Hysteresis: ±0.07 °C
• Well Depth: 203 mm (8 in)
• Key Pad: Ten key with decimal and +/- button. Function keys, menu key, and °C/°F button.
• Size (HWD) 366 x 203 x 323 mm (14.4” x 8” x 12.7”)
• Weight: 15 kg (33 lb)

Each Unit Includes

• Report of Calibration
• RS-232 Cable
• 9930 Interface-it Software
• User Manual
