Order #: 28-II
Mfg #: 3301271

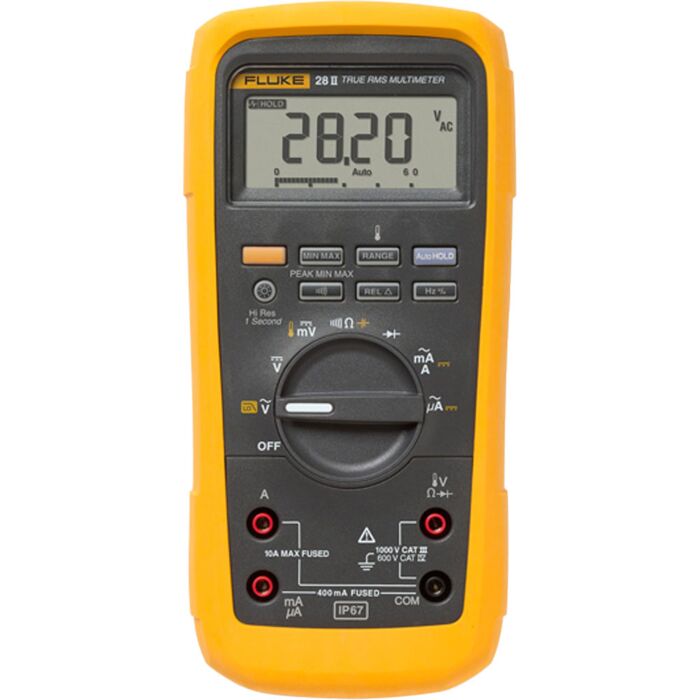

Fluke 28-II Industrial Multimeter, Water Proof/Dust Proof, True RMS
Order #: 28-II
Mfg #: 3301271
Overview
The standard for rugged
The Fluke 28 II Digital Multimeter defines a the standard for operating in harsh conditions with the features and accuracy to troubleshoot most electrical problems. Both meters have IP 67 (waterproof and dustproof) rating, MSHA approvals, extended operating temperature range of -15°C to +55°C (5°F to 131°F, -40°C for up to 20 minutes) and 95% humidity, and have been designed and tested to withstand a 3 m (10 ft) drop. The Fluke 20 Series Multimeters are built to work in the toughest environments.
Product Highlights
- True RMS AC Voltage and Current
- Unique Function for Accurate Voltage and Frequency Measurements on Adjustable Speed Motor Drives and Other Electrically Noisy Equipment
- Measure up to 1000 V AC and DC
- Measure up to 10 A (20 A for 30 Seconds)
- 10,000 UF Capacitance Range
- Frequency to 200 kHz
- Extended AC Voltage Bandwidth - 15Hz to 20kHz
- Built in Thermometer Conveniently Allows You to Take Temperatures Readings without Having to Carry a Separate Instrument
- Resistance, Continuity and Diode Test
- Min/Max and Average Recording to Capture Variations Automatically
- IP67 Waterproof & Dustproof Protection, Impervious to the Harsh Environments
- Designed to Withstand 3 Meter Drop
- NEW - Backlit Keypad Buttons Allows for Easy Visibility in Low-Lit Areas
- Large Display Digits and 2 Level Bright White Backlight for Increased Visibility
- Reversible Holster for Added Protection when not in use
- Withstands Hazardous 8,000 Volt Spikes Caused by Load Switching and Faults on Industrial Circuits and Complies with Second Edition IEC and ANSI Electrical Safety Standards
- Improved Sleep Mode for Long Battery Life
- Relative Mode to Remove Test Lead Resistance from Low Ohms Measurements
- Auto and Manual Ranging for Maximum Flexibility
- Optional Magnetic Hanger for Easy Setup and Viewing While Freeing your Hands for other Tasks
- MSHA Approved for Hazardous Areas
- Limited Lifetime Warranty
- Made in the USA
- Hi Resolution 20,000 Count Display Mode
- True-RMS AC Voltage and Current for Accurate Measurements on Non Linear Signals
Each Unit Includes
- Holster
- Test leads
- Manual
- Alligator Clips
- Batteries
Webinars
- Fluke C25 Soft Carrying Case for Fluke MetersSoft Carrying Case for Fluke Meters
Order #: C25
Mfg #: 681114
Availability:In stockSpecial Price $62.07 Regular Price $74.79 - Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability:In stockSpecial Price $124.15 Regular Price $149.59 - Fluke C115 Soft Carry Case with Shoulder StrapSoft Carry Case w/Shoulder Strap
Order #: C115
Mfg #: 2826063
Availability:In stockSpecial Price $62.07 Regular Price $74.79 - Fluke TLK289 Industrial Master Test Lead SetIndustrial Master Test Lead Set
Order #: TLK289
Mfg #: 3045646
Availability:In stockSpecial Price $270.90 Regular Price $326.39 - Fluke PRV240 Battery-powered voltage source proving unitBattery-powered voltage source proving unit
Order #: PRV240
Mfg #: 4566209
Availability:In stockSpecial Price $228.19 Regular Price $271.99 - Fluke C125 Case for Fluke 120 Series ScopeMetersCase for Fluke 120 Series ScopeMeters
Order #: C125
Mfg #: 646858
Availability:In stockSpecial Price $67.77 Regular Price $76.15 - Fluke L206 Deluxe LED Hat LightDeluxe LED Hat Light
Order #: L206
Mfg #: 2098595
Availability: Ships in 4-6 weeksSpecial Price $87.57 Regular Price $95.19 - Fluke 80K-6 High Voltage ProbeHigh Voltage Probe
Order #: 80K-6
Mfg #: 532424
Availability:In stockSpecial Price $248.32 Regular Price $299.19 - Fluke AC285 SureGrip Alligator ClipsSureGrip Alligator Clips
Order #: AC285
Mfg #: 1610159
Availability:In stockSpecial Price $50.78 Regular Price $61.19 - Fluke 80T-150UA Universal Temperature ProbeUniversal Temperature Probe
Order #: 80T-150UA
Mfg #: 3190456
Availability: Ships in 4-6 weeksSpecial Price $428.93 Regular Price $516.79 - Fluke 80PK-3A Surface Probe - Type K ThermocoupleSurface Probe - Type K Thermocouple
Order #: 80PK-3A
Mfg #: 874610
Availability:In stockSpecial Price $248.32 Regular Price $299.19 - Fluke L215 SureGrip Kit with Probe Light and Probe ExtenderSureGrip Kit with Probe Light and Probe Extender
Order #: L215
Mfg #: 2096368
Availability:In stockSpecial Price $183.91 Regular Price $199.91 - Fluke 80PK-9 Type K Lance Tip Probe, T/C Assembly, Molded Plug, 1mType K Lance Tip Probe, T/C Assembly,Moldd.Plug,1m,Bulk
Order #: 80PK-9
Mfg #: 1288229
Availability:In stockSpecial Price $118.51 Regular Price $142.79 - Fluke TL224 SureGrip Silicon Test LeadsSureGrip Silicon Test Leads
Order #: TL24
Mfg #: 1610198
Availability:In stockSpecial Price $49.65 Regular Price $59.83 - Fluke TL71 Premium Test Lead SetPremium Test Lead Set
Order #: TL71
Mfg #: 1274382
Availability:In stockSpecial Price $49.65 Regular Price $59.83 - Fluke 80K-40 High Voltage Probe High Voltage ProbeHigh Voltage Probe
Order #: 80K-40
Mfg #: 382846
Availability:In stockSpecial Price $387.17 Regular Price $466.47 - Fluke 80PK-27 SureGrip Industrial Surface Temperature ProbeSureGrip Industrial Surface Temperature Probe
Order #: 80PK-27
Mfg #: 2098723
Availability:In stockSpecial Price $485.37 Regular Price $584.79 - Fluke CXT80 Rugged Pelican Hard CaseRugged Pelican Hard Case
Order #: CXT80
Mfg #: 3352559
Availability:In stockSpecial Price $299.12 Regular Price $360.39 - Fluke I1010 AC/DC Clamp-on Current Probe 600A/1000AAC/DC Clamp-on Current Probe 600A/1000A
Order #: I-1010
Mfg #: 617735
Availability:In stockSpecial Price $603.89 Regular Price $727.59 - Fluke Toolpak Meter Hanging KitMeter Hanging Kit
Order #: TPAK80-4
Mfg #: 1281997
Availability: Ships in 1-2 weeksSpecial Price $62.74 Regular Price $74.79 - Fluke 80PK-8 Probe Pipe Clamp, Temperature ProbeProbe Pipe Clamp, Temperature Probe
Order #: 80PK-8
Mfg #: 200360
Availability: Call for availabilitySpecial Price $270.90 Regular Price $326.39 - Fluke 80AK Thermocouple Adapter Type KThermocouple Adapter Type K
Order #: 80AK
Mfg #: 2747812
Availability:In stockSpecial Price $55.30 Regular Price $66.63 - Fluke I410 AC/DC Clamp-on Current Probe, 400AAC/DC Clamp-on Current Probe, 400A
Order #: I-410
Mfg #: 617727
Availability:In stockSpecial Price $376.53 Regular Price $448.79 - Fluke C550 Premium Tool Bag - Water ResistantPremium Tool Bag
Order #: C550E
Mfg #: 1547919
Availability:In stockSpecial Price $152.37 Regular Price $183.59 - Fluke 80PK-EXT Type K Extension Wire Kit, T/C Assembly, 3mType K Extension Wire Kit,T/C Assembly,3m
Order #: 80PK-EXT
Mfg #: 1288241
Availability:In stockSpecial Price $106.09 Regular Price $127.83 - Fluke 80TK Thermocouple ModuleThermocouple Module
Order #: 80TK
Mfg #: 736736
Availability:In stockSpecial Price $237.03 Regular Price $285.59 - Fluke 80PK-22 SureGrip Immersion Temperature ProbeSureGrip Immersion Temperature Probe
Order #: 80PK-22
Mfg #: 2098684
Availability:In stockSpecial Price $160.28 Regular Price $193.11 - Fluke 80PK-1 Insulated Bead ProbeInsulated Bead Probe
Order #: 80PK-1
Mfg #: 750422
Availability: Ships in 2-3 weeksSpecial Price $71.10 Regular Price $85.67 - Fluke LVD2/CT Light Volt with Counter-top DisplayLVD2 Light Volt w/Counter-top Display
Order #: LVD2/CT
Mfg #: 3503813
Availability:In stockSpecial Price $64.10 Regular Price $77.23 - Fluke I200 200A AC Clamp with Banana Jack200A AC Clamp with Banana Jack
Order #: I-200
Mfg #: 664755
Availability:In stockSpecial Price $248.32 Regular Price $299.19 - Fluke TL175 TwistGuard Test LeadsTwistGuard Test Leads
Order #: TL175
Mfg #: 3521976
Availability:In stockSpecial Price $51.91 Regular Price $62.55 - Fluke I3000S AC Current Probe, 3000AAC Current Probe
Order #: I-3000S
Mfg #: 657202
Availability: Ships in 4-6 weeksSpecial Price $869.16 Regular Price $1,047.19 - Fluke TLK-225 SureGrip Master Accessory SetSureGrip Master Accessory Set
Order #: TLK225
Mfg #: 2097031
Availability:In stockSpecial Price $262.43 Regular Price $312.79 - Fluke C101 Universal Hard Carrying CaseUniversal Hard Carrying Case
Order #: 65117MM
Mfg #: 2437514
Availability:In stockSpecial Price $124.15 Regular Price $149.59 - Fluke 80K-15 Electronic Air Cleaner ProbeElectronic Air Cleaner Probe
Order #: 80K-15
Mfg #: 618113
Availability: Ships in 4-6 weeksSpecial Price $428.93 Regular Price $516.79
Accuracy Specifications | ||
DC voltage | Range | 0.1 mV to 1000 V |
Accuracy | 0.05% + 1 | |
AC voltage | Range | 0.1 mV to 1000 V |
Accuracy | 0.7% + 4 | |
DC current | Range | 0.1 μA to 10 A |
Accuracy | 0.2% + 4 | |
AC current | Range | 0.1 μA to 10 A |
Accuracy | 1.0% + 2 | |
Resistance | Range | 0.1 Ω to 50 MΩ |
Display counts | 6000 | |
Capacitance | 1 nF to 9999 μF | |
Frequency | 0.5 Hz to 199.99 kHz | |
Temperature | -200°C to +1090°C | |
Low pass filter (Measurement on VSD’s) | Yes | |
Compliance | CAT IV 600 V , CAT III 1000 V | |
IP rating | IP 67 | |
Power | Three AA batteries | |
Battery life | 800 hours | |
General Specifications | ||
Display | Bar graph/backlight | Yes/Yes |
Data storage | Peak transient capture | 250 μS |
Min/Max/Avg | Yes | |
Reading hold | Yes | |
Other features | Relative readings (zero) | Yes |
Battery type | Three AA batteries | |
Warranty and protection | Safety rating | CAT IV 600 V/CAT III 1000 V |
Mine safety | MSHA Approved | |
External protection | Rubber holster | |
Drop test | 10 feet drop test | |
Dustproof/waterproof | Yes, IP 67 rated | |
Warranty | Limited lifetime | |
Size (H x W x L) with holster | 6.35 x 10.0 x 19.81 cm (2.5 x 3.93 x 7.8 in) | |
Weight with holster | 698.5 g (1.54 lb) |
