Fluke 1577 1kV Insulation Test & Digital Multimeter, AC/DC Volt, True RMS
1kV Insulation Test & Digital Multimeter,AC/DC Volt.,True RMS
Order #: 65102MM
Mfg #: 2157280
Special Price
$1,110.22
Regular Price
$1,323.27

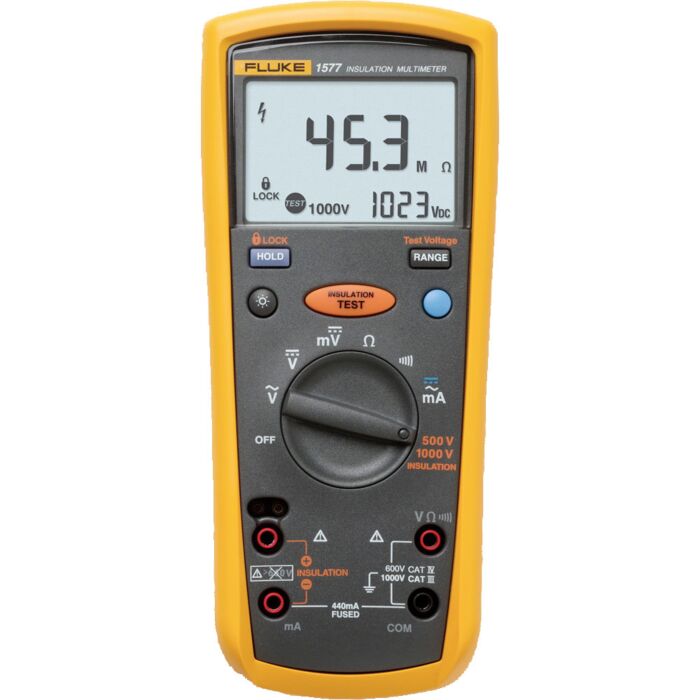

Fluke 1577 1kV Insulation Test & Digital Multimeter, AC/DC Volt, True RMS
1kV Insulation Test & Digital Multimeter,AC/DC Volt.,True RMS
Order #: 65102MM
Mfg #: 2157280
Special Price
$1,110.22
Regular Price
$1,323.27
This Insulation Multimeter combines a digital insulation tester with a full-featured, True RMS digital multimeter in a single, handheld unit.
Availability:
In stock
Overview
Two powerful tools in one
The Fluke 1577 Insulation Multimeter combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.
Whether you work on motors, generators, cables, or switch gear, the Fluke 1577 Insulation Multimeter is ideally suited to help you with your tasks and at a cost that is far less than buying the two products.
Product Highlights
- Fluke Model # 1577
- Insulation test voltages 500V, 1000V
- Insulation test: 0.1 MOhms to 600 MOhms
- Auto discharge of capacitive voltage
- AC/DC Voltage
- DC millivolts
- Resistance (0.1 Ohms to 50 MOhms)
- AC/DC milliamps
- Continuity
- Remote probe, test leads, alligator clips Rugged, utility hard case
- Auto power off to save battery power
- Three-year warranty
- True-rms
- Large display with backlight
- Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
- CAT III 100V, CAT IV 600V measurement category
- Accepts optional Fluke TPAKTM magnetic hanging system to free your hands for other work
Each Unit Includes
- Remote Probe
- Test Leads
- Probes
- Alligator Clips
Webinars
-
Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke MetersOrder #: TL20
Mfg #: 2003625
Availability: Ships in 2-3 weeksSpecial Price $124.15 Regular Price $149.59 -
Fluke C115 Soft Carry Case with Shoulder StrapSoft Carry Case w/Shoulder Strap
Order #: C115
Mfg #: 2826063
Availability: Ships in 3-4 weeksSpecial Price $62.07 Regular Price $74.79 -
Fluke TLK289 Industrial Master Test Lead SetIndustrial Master Test Lead Set
Order #: TLK289
Mfg #: 3045646
Availability:In stockSpecial Price $270.90 Regular Price $326.39 -
Fluke PRV240 Battery-powered voltage source proving unitBattery-powered voltage source proving unit
Order #: PRV240
Mfg #: 4566209
Availability: Ships in 1-2 weeksSpecial Price $228.19 Regular Price $271.99 -
Fluke 80PK-8 Probe Pipe Clamp, Temperature ProbeProbe Pipe Clamp, Temperature Probe
Order #: 80PK-8
Mfg #: 200360
Availability:In stockSpecial Price $270.90 Regular Price $326.39 -
Fluke TL27 Heavy Duty Test Lead SetHeavy Duty Test Lead Set
Order #: TL27
Mfg #: 668571
Availability:In stockSpecial Price $59.81 Regular Price $72.07 -
Fluke I200 200A AC Clamp with Banana Jack200A AC Clamp with Banana Jack
Order #: I-200
Mfg #: 664755
Availability:In stockSpecial Price $248.32 Regular Price $299.19 -
Fluke 80PK-27 SureGrip Industrial Surface Temperature ProbeSureGrip Industrial Surface Temperature Probe
Order #: 80PK-27
Mfg #: 2098723
Availability:In stockSpecial Price $485.37 Regular Price $584.79 -
Special Price $64.10 Regular Price $77.23
-
Fluke CXT170 Rugged Pelican Hard CaseRugged Pelican Hard Case
Order #: CXT170
Mfg #: 3352567
Availability:In stockSpecial Price $299.12 Regular Price $360.39 -
Fluke 80AK Thermocouple Adapter Type KThermocouple Adapter Type K
Order #: 80AK
Mfg #: 2747812
Availability:In stockSpecial Price $55.30 Regular Price $66.63 -
Fluke Toolpak Meter Hanging KitMeter Hanging Kit
Order #: TPAK80-4
Mfg #: 1281997
Availability:In stockSpecial Price $62.74 Regular Price $74.79 -
-
Special Price $48.78 Regular Price $53.03
-
Fluke TP220 SureGrip Industrial Test ProbesSureGrip Industrial Test Probes
Order #: TP20
Mfg #: 1670056
Availability:In stockSpecial Price $36.11 Regular Price $43.51 -
Fluke C550 Premium Tool Bag - Water ResistantPremium Tool Bag
Order #: C550E
Mfg #: 1547919
Availability:In stockSpecial Price $152.37 Regular Price $183.59 -
Special Price $90.07 Regular Price $97.91
-
Fluke 80PK-3A Surface Probe - Type K ThermocoupleSurface Probe - Type K Thermocouple
Order #: 80PK-3A
Mfg #: 874610
Availability:In stockSpecial Price $248.32 Regular Price $299.19 -
Fluke C25 Soft Carrying Case for Fluke MetersSoft Carrying Case for Fluke Meters
Order #: C25
Mfg #: 681114
Availability:In stockSpecial Price $62.07 Regular Price $74.79 -
Fluke I1010-KIT AC/DC Current Clamp with Meter Carrying CaseAC/DC Current Clamp with Meter Carrying Case
Order #: I1010-KIT
Mfg #: 2096998
Availability: Ships in 2-3 weeksSpecial Price $632.11 Regular Price $761.59 -
Fluke TLK-225 SureGrip Master Accessory SetSureGrip Master Accessory Set
Order #: TLK225
Mfg #: 2097031
Availability:In stockSpecial Price $262.43 Regular Price $312.79
| Specifications | ||
| Voltage DC | Maximum voltage | 1000 V |
| Accuracy | ±(0.2%+2) | |
| Maximum resolution | 0.001 V | |
| Voltage AC | Maximum voltage | 1000 V |
| Accuracy | ±(2%+3) | |
| Maximum resolution | 0.1 mV | |
| Current DC | Maximum amps | 400 mA |
| Amps accuracy | ±(1.0%+2) | |
| Maximum resolution | 0.01 mA | |
| Current AC | Maximum amps | 400 mA |
| Amps accuracy | ±(2.0%+2)* | |
| Maximum resolution | 0.01 mA | |
| Resistance | Maximum resistance | 50 MΩ |
| Accuracy | ±(1.2%+2) | |
| maximum resolution | 0.1Ω | |
| Insulation Test | ||
| Minimum test current @ 1kΩ/V | 1 mA | |
| Test voltages | 500, 1000 V | |
| Maximum resistance per test voltage | 50 V | |
| 100 V | ||
| 250 V | ||
| 500 V | ||
| 1000 V | 600 MΩ | |
| Maximum resolution per test voltage | 50 V | 0.01 MΩ |
| 100 V | 0.01 MΩ | |
| 250 V | 0.1 MΩ | |
| 500 V | 0.1 MΩ | |
| 1000 V | 0.1 MΩ | |
| Accuracy per test voltage | 50 V | ±(3% + 5) |
| 100 V | ±(3% + 5) | |
| 250 V | ±(1.5% + 5) | |
| 500 V | ±(2.0% + 5) | |
| 1000 V | ±(2.0% + 5) | |
| Environmental Specifications | ||
| Operating temperature | –20°C to +55°C | |
| Storage temperature | -40°C to +60°C | |
| Humidity (without condensation) | 0% - 95% (10°C – 30°C) | |
| 0% - 75% (30°C – 40°C) | ||
| 0% - 40% (40°C – 55°C) | ||
| Operating altitude | 2000 m | |
| Safety Specifications | ||
| Overvoltage category | Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V | |
| Agency approvals | 2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V | |
| Mechanical and General Specifications | ||
| Size | 203 x 100 x 50 mm (with holster) | |
| Weight | 624 g | |
| Warranty | 3 years | |
| Battery life alkaline | Meter use | 1000 hours |
| Insulation test use | Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off. | |
| IP rating | IP40 | |
