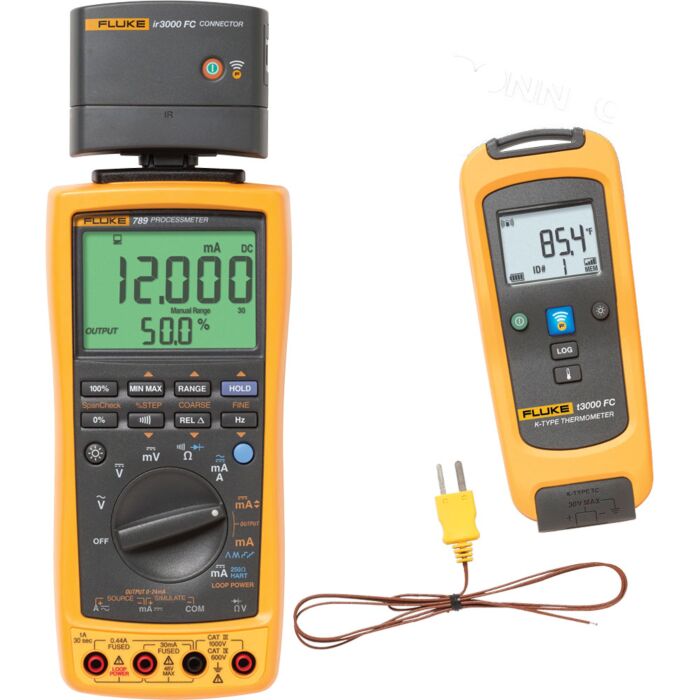

Fluke 789/T3000 FC Fluke Connect Process Meter
Fluke Connect Process Meter
Order #: 789/T3000 FC
Mfg #: 4489241
$2,554.99
Fluke 789/T3000 FC Fluke Connect Process Meter
Fluke Connect Process Meter
Order #: 789/T3000 FC
Mfg #: 4489241
$2,554.99
Save time and equipment costs with the combined meter and loop calibrator into the Fluke 789.
Availability:
In stock
Product Highlights
The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals, combining the functionality of a loop calibrator with the power of a digital multimeter. By equipping the 789 with a temperature measurement module and the wireless data logging capabilities of Fluke Connect™ with ShareLive™ video call (sold separately), process technicians can now do a lot more while carrying a lot less. And with its built-in, selectable 250 ohm HART® resistor, it eliminates the need to carry a separate resistor with you.
- Unique new wireless measurement logging capability
- Temperature measurement from -200°C to 1372°C using the t3000 FC
- 24 V Loop power supply
- HART mode setting with loop power (adds 250 ohm resistor)
- 100% larger dual display
- 1200 ohm drive capability on mA source
- Enhanced backlight with two brightness settings
- 0% to 100% mA Span Check buttons to toggle between 4 and 20 mA
- Infrared I/O serial port compatible with
- FlukeView® Forms Software Version 2.1
- Externally accessible fuses for easy replacement
Use the included FC Connector with the Fluke 789 and get the full benefits of the Fluke Connect™ app. Download it now and get started.
-
Fluke Toolpak Meter Hanging KitMeter Hanging KitOrder #: TPAK80-4
Mfg #: 1281997
Availability: Ships in 1-2 weeksSpecial Price $62.74 Regular Price $74.79 -
Fluke TL175 TwistGuard Test LeadsTwistGuard Test Leads
Order #: TL175
Mfg #: 3521976
Availability:In stockSpecial Price $55.66 Regular Price $62.55 -
Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability:In stockSpecial Price $133.13 Regular Price $149.59 -
Fluke C125 Case for Fluke 120 Series ScopeMetersCase for Fluke 120 Series ScopeMeters
Order #: C125
Mfg #: 646858
Availability:In stockSpecial Price $74.75 Regular Price $83.99 -
Fluke I1010 AC/DC Clamp-on Current Probe 600A/1000AAC/DC Clamp-on Current Probe 600A/1000A
Order #: I-1010
Mfg #: 617735
Availability:In stockSpecial Price $679.06 Regular Price $762.99 -
Fluke I410 AC/DC Clamp-on Current Probe, 400AAC/DC Clamp-on Current Probe, 400A
Order #: I-410
Mfg #: 617727
Availability:In stockSpecial Price $394.65 Regular Price $470.39 -
Fluke TP1 Slim Reach Flat Blade Probe for Fluke Lead SetsSlim Reach Flat Blade Probe for Fluke Lead Sets
Order #: TP1E
Mfg #: 650887
Availability:In stockSpecial Price $36.30 Regular Price $40.79 -
Fluke TP220 SureGrip Industrial Test ProbesSureGrip Industrial Test Probes
Order #: TP20
Mfg #: 1670056
Availability:In stockSpecial Price $38.72 Regular Price $43.51 -

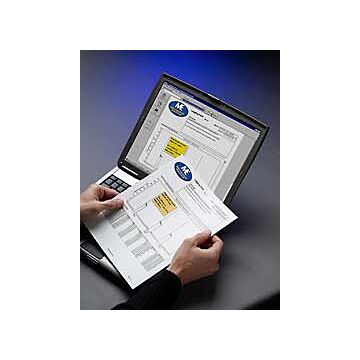

Fluke FVF-BASIC Flukeview Forms Basic Software with CableFlukeview Forms Basic Software with Cable
Order #: FVF-BASIC
Mfg #: 2396957
Availability: Ships in 1-2 weeksSpecial Price $291.55 Regular Price $327.59 -
Fluke 80TK Thermocouple ModuleThermocouple Module
Order #: 80TK
Mfg #: 736736
Availability:In stockSpecial Price $266.63 Regular Price $299.59
| Specifications | ||
| Current measurement | Range | 0-1 A AC or DC |
| Resolution | 1 mA | |
| Accuracy | 0.2% + 2 LSD (DC) | |
| Range | 0-30 mA | |
| Resolution | 0.001 mA | |
| Accuracy | 0.05% + 2 lSD | |
| Current sourcing | Range | 0-20 mA or 4-20 mA |
| Resolution | 0.05% of span | |
| Drive capability | 24 V Compliance or 1200 Ω @ 20 mA | |
| Frequency | to 19.999 kHz, 0.005% + 1 LSD | |
| Continuity | Beeps for resistance < 100 Ω | |
| Voltage measurement | Range | 0-1000 V AC (true-rms) or DC |
| Resolution | 0.1 mV to 1.0 V | |
| Accuracy | 0.1% Rdg + 1 LSD (VDC) | |
| Resistance measurement | to 40 MΩ, 0.2% + 1 LSD | |
| Diode test | 2.0 V shoes diode voltage drop | |
| Display current and % of span | Yes | |
| Auto Step, Auto Ramp | Yes | |
| Environmental Specifications | ||
| Operating temperature | -20°C to 55°C | |
| Storage temperature | -40°C to 60°C | |
| Humidity (without condensation) | 95% up to 30°C | |
| 75% up to 40°C | ||
| 45% up to 50°C | ||
| 35% up to 55°C | ||
| Temperature coefficient | 0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C) | |
| Safety Specifications | ||
| Electrical safety | Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92 | |
| Overvoltage category | IEC 1010-1 CAT III 1000 V | |
| IEC 1010-1 CAT IV 600 V | ||
| Maximum voltage | 1000 V RMS | |
| Mechanical and General Specifications | ||
| Size (H x W x L) | 50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in) | |
| Weight | 610 g (1.6 lbs) | |
| Batteries | 4 AA alkaline batteries | |
| Warranty | 3 years | |
| Battery life | 140 hours typical (measurement), 10 hours typical (sourcing 20 mA) | |
| Shock and vibration | Random, 2 g, 5-500 Hz | |
| 1 meter drop test | ||
