Fluke 117/323 KIT 117, Multimeter and 323 Clamp Meter Combo Kit
117, Multimeter and 323 Clamp Meter Combo Kit
Order #: 117/323 KIT
Mfg #: 4296041
Special Price
$513.45
Regular Price
$611.99
Fluke 117/323 KIT 117, Multimeter and 323 Clamp Meter Combo Kit
117, Multimeter and 323 Clamp Meter Combo Kit
Order #: 117/323 KIT
Mfg #: 4296041
Special Price
$513.45
Regular Price
$611.99
Availability:
In stock
Overview
Designed by Electricians. Engineered by Fluke - An Investment in Accuracy
With its integrated non-contact voltage detection and the AutoV/LoZ function preventing false readings caused by ghost voltage, the Fluke 117 Electrician's Multimeter is the ideal multimeter for electricians. In fact, users around the world have said their 117 is an investment in accuracy. The Fluke 117 provides Min/Max/Average readings, measuring frequency and capacitance. With its easy-to-use design, the Fluke 117 will save you time, allowing you to move from job to job with ease.
Engineered and Tested with Your Safety on the Job in Mind
We test our 117 Multimeters for safe use in CAT III 600 V environments. This is the ideal meter for your electrical work because:
- The large white LED backlight helps you work in poorly lit areas
- VoltAlertTM technology gives you fact, go/no go non-contact voltage detection
- AutoVolt and Low Input Impedance modes provide faster, more accurate readings
Product Highlights

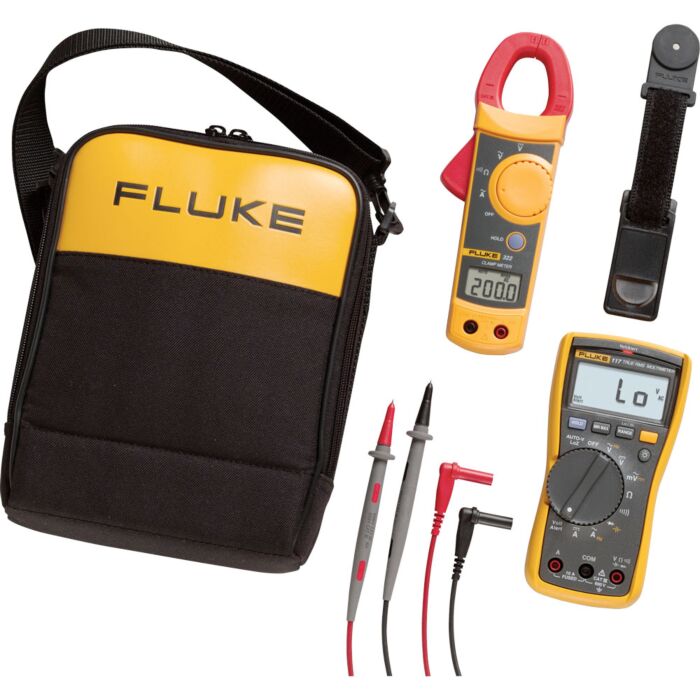

- This combo kit pairs the Fluke 117 DMM with a Fluke 323 clamp meter for productive and effective troubleshooting in one total solution, including the C115 durable soft carrying case for protection and easy meter transportation.
Each Unit Includes
- Fluke 117 Digital Multimeter
- Fluke 323 True-rms Clamp Meter
Webinars
-
Fluke C25 Soft Carrying Case for Fluke MetersSoft Carrying Case for Fluke MetersOrder #: C25
Mfg #: 681114
Availability:In stockSpecial Price $62.07 Regular Price $74.79 -
Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability: Ships in 2-3 weeksSpecial Price $124.15 Regular Price $149.59 -
Fluke C115 Soft Carry Case with Shoulder StrapSoft Carry Case w/Shoulder Strap
Order #: C115
Mfg #: 2826063
Availability: Ships in 3-4 weeksSpecial Price $62.07 Regular Price $74.79 -
Fluke TLK-225 SureGrip Master Accessory SetSureGrip Master Accessory Set
Order #: TLK225
Mfg #: 2097031
Availability:In stockSpecial Price $262.43 Regular Price $312.79 -
Fluke TLK289 Industrial Master Test Lead SetIndustrial Master Test Lead Set
Order #: TLK289
Mfg #: 3045646
Availability:In stockSpecial Price $270.90 Regular Price $326.39 -
Fluke PRV240 Battery-powered voltage source proving unitBattery-powered voltage source proving unit
Order #: PRV240
Mfg #: 4566209
Availability: Ships in 1-2 weeksSpecial Price $228.19 Regular Price $271.99 -
Special Price $66.59 Regular Price $80.23
-
Fluke AC175 Alligator Clip SetAlligator Clip Set
Order #: AC175
Mfg #: 4101772
Availability: Ships in 3-4 weeksSpecial Price $54.17 Regular Price $65.27 -
Fluke Toolpak Meter Hanging KitMeter Hanging Kit
Order #: TPAK80-4
Mfg #: 1281997
Availability:In stockSpecial Price $62.74 Regular Price $74.79 -
Fluke TL175 TwistGuard Test LeadsTwistGuard Test Leads
Order #: TL175
Mfg #: 3521976
Availability: Ships in 2-3 weeksSpecial Price $51.91 Regular Price $62.55 -
Special Price $225.75 Regular Price $271.99
| Specifications | ||
| Maximum voltage between any terminal and earth ground | 600 V | |
| Surge protection | 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2 | |
| Fuse for A input | 11 A, 1000 V FAST Fuse (Fluke PN 803293) | |
| Display | Digital: 6,000 counts, updates 4 per second | |
| Bar graph | 33 segments, updates 32 per second | |
| Operating temperature | -10°C to +50°C | |
| Storage temperature | -40°C to +60°C | |
| Battery type | 9 volt Alkaline, NEDA 1604A / IEC 6LR61 | |
| Battery life | 400 hours typical, without backlight | |
| Accuracy Specifications | ||
| DC millivolts | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | ±([% of reading] + [counts]): 0.5% + 2 | |
| DC volts | Range/resolution | 6.000 V / 0.001 V |
| 60.00 V / 0.01 V | ||
| 600.00 V / 0.1 V | ||
| Accuracy | ±([% of reading] + [counts]): 0.5% + 2 | |
| Auto volts | Range/resolution | 600.0 V / 0.1 V |
| Accuracy | 2.0% + 3 (DC, 45 Hz to 500 Hz) | |
| 4.0% + 3 (500 Hz to 1 kHz) | ||
| AC millivolts¹ True RMS | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) | |
| 2.0% + 3 (500 Hz to 1 kHz) | ||
| AC volts¹ True RMS | Range/resolution | 6.000 V / 0.001 V |
| 60.00 V / 0.01 V | ||
| 600.0 V / 0.1 V | ||
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) | |
| 2.0% + 3 (500 Hz to 1 kHz) | ||
| Continuity | Range/resolution | 600 Ω / 1 Ω |
| Accuracy | Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of | |
| 500 μs or longer. | ||
| Ohms | Range/resolution | 600.0 Ω / 0.1 Ω |
| 6.000 kΩ / 0.001 kΩ | ||
| 60.00 kΩ / 0.01 kΩ | ||
| 600.0 kΩ / 0.1 kΩ | ||
| 6.000 MΩ / 0.001 MΩ | ||
| Accuracy | 0.9% + 1 | |
| Range/resolution | 40.00 MΩ / 0.01 MΩ | |
| Accuracy | 5% + 2 | |
| Diode test | Range/resolution | 2.00 V / 0.001 V |
| Accuracy | 0.9% + 2 | |
| Capacitance | Range/resolution | 1000 nF / 1 nF |
| 10.00 μF / 0.01 μF | ||
| 100.0 μF / 0.1 μF | ||
| 9999 μF / 1 μF | ||
| 100 μF to 1000 μF | ||
| Accuracy | 1.9% + 2 | |
| Range/resolution | > 1000 μF | |
| Accuracy | 5% + 20% | |
| Lo-Z capacitance | Range | 1 nF to 500 μF |
| Accuracy | 10% + 2 typical | |
| AC amps True RMS (45 Hz to 500 Hz) | Range/resolution | 6.000 A / 0.001 A |
| 10.00 A / 0.01 A | ||
| Accuracy | 1.5% + 3 | |
| 20 A continuous overload for 30 seconds max | ||
| DC amps | Range/resolution | 6.000 A / 0.001 A 10.00 A / 0.01 A |
| Accuracy | 1.0% + 3 | |
| 20 A continuous overload for 30 seconds max | ||
| Hz (V or A input)² | Range/resolution | 99.99 Hz / 0.01 Hz |
| 999.99 Hz / 0.1 Hz | ||
| 9.999 Hz / 0.001 Hz | ||
| 50.00 Hz / 0.01 Hz | ||
| Accuracy | 0.1% + 2 | |
| 1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. | ||
| 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. | ||
| 2. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. | ||
| 2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F. | ||
| Mechanical and General Specifications | ||
| Size | 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) | |
| Weight | 550 g | |
| Warranty | 3 years | |
