Fluke Networks DSX-8000-ADD-R 2GHZ CAT 8 DSX2 CableAnalyzer Modules Add on Kit with Remote

2GHZ CAT 8 DSX2 CableAnalyzer Modules Add on Kit with Remote

Order #: DSX2-8000-ADD-R

Mfg #: 4954904

Questions about availability or need help? Contact Us:

(800) 633-0561 sales@transcat.com

Special Price $19,510.38 Regular Price $19,510.39

Qty

Fluke Networks DSX-8000-ADD-R 2GHZ CAT 8 DSX2 CableAnalyzer Modules Add on Kit with Remote

2GHZ CAT 8 DSX2 CableAnalyzer Modules Add on Kit with Remote

Order #: DSX2-8000-ADD-R

Mfg #: 4954904

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Special Price $19,510.38 Regular Price $19,510.39

The Fluke Networks DSX-8000-ADD-R is the CAT 8 / Class I CableAnalyzer Module Add-on Kit for the Versiv Mainframe with 1 Versiv Remote. This item should be ordered when you already own a Versiv Mainframe, but need the Fluke Networks DSX-8000 CableAnalyzer Modules for Copper Certification and a Versiv Remote. The Fluke Networks Versiv family of cable testers offer modular solutions for every copper and fiber cable testing application. Check out our DSX-8000 product page to view all of your ordering options.

Availability: Ships in 3-4 weeks

This product is available for shipping to the United States only.

Product Overview

Product Highlights

Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
Unmatched speed for Cat 6A, 8, Class F_A, I/II and all current standards
ProjX system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
Taptive user interface simplifies set-up, and eliminates errors
Analyze test results and create professional test reports using LinkWare management software
Graphically displays the source of failures including crosstalk, return loss and shield faults for faster troubleshooting
Intertek Verified to TIA Level 2G the most stringent accuracy requirement
Endorsed by cabling vendors worldwide
Built in Alien Crosstalk testing capability
Compatible with Linkware Live. Linkware Live enables to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare PC Cable Test Management Software.

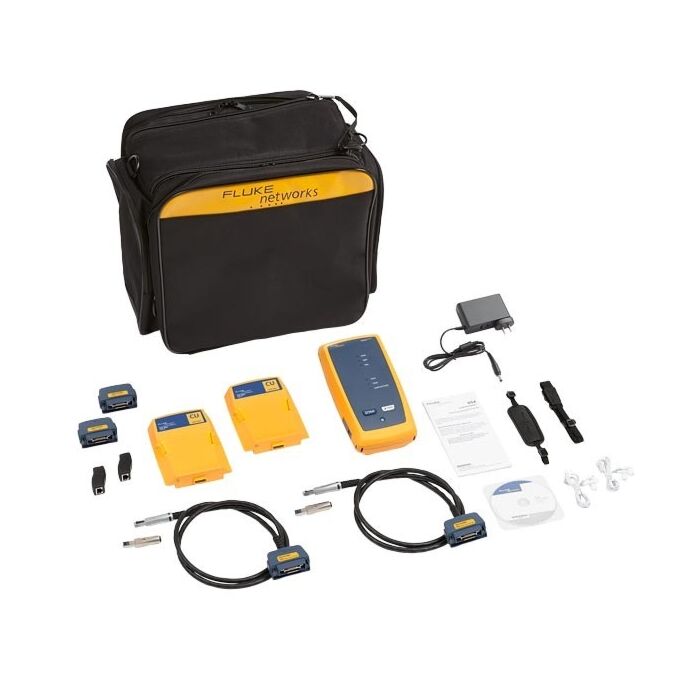

Each Kit Includes

1 Versiv Remote
(2) DSX-8000 CableAnalyzer Modules
Set of Cat 8/Class I Permanent Link Adapters
Set of Cat 8/Class I Channel Adapters
(2) Headsets
(2) HandStraps
(2) Shoulder Straps, Carry Case
Versiv Open Source Software CD
(2) AC Chargers
(2) Universal Couplers
(2) AxTalk Terminators
Statement of Calibration and Getting Started Guide

Specifications

Copper Certification
	DSX-8000 CableAnalyzer™	DSX-5000 CableAnalyzer™
Category 6A / Class EA test time	8 seconds	10 seconds
Category 8 / Class I/II test time	15 seconds
HDTDX/HDTDR diagnostic test times	≈ 3 seconds	≈ 3 seconds
Internal memory	≈ 5,000 Cat 8 with plots ≈ 12,000 Cat 6A with plots	≈ 12,000 Cat 6A with plots
Level V Accuracy (1 GHz)	✓	✓
Level VI/2G Accuracy (2 GHz)	✓
Resistance Unbalance measurement	✓	✓
Shield integrity check	✓	✓
TCL measurement	✓	✓
ELTCTL measurement	✓	✓
CDNEXT measurement	✓	✓
CMRL measurement	✓	✓
Built in Alien XTalk module	✓	✓
Channel Adapter	2 GHz Range	1 GHz Range
Permanent Link Adapter	2 GHz Range	1 GHz Range
