Order #: E8-PRO
Mfg #: 13303-0302

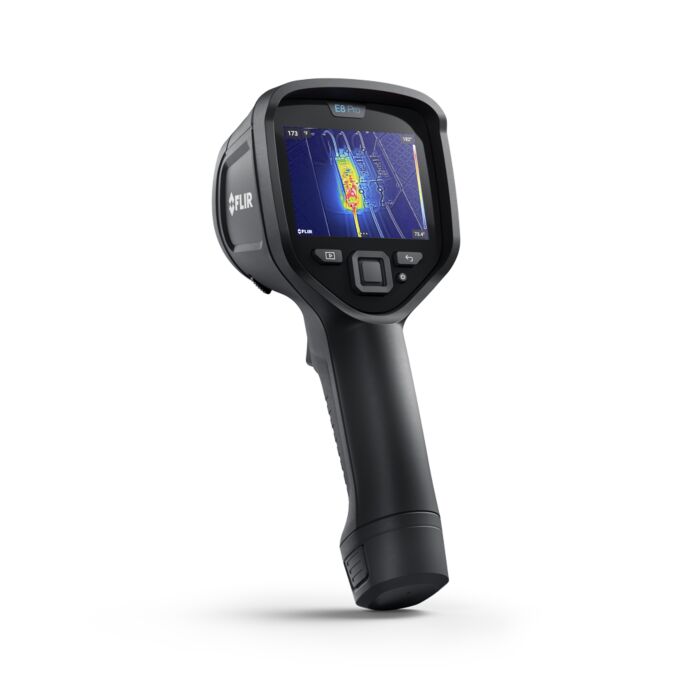

FLIR E8 PRO Infrared Camera with Ignite Cloud, 320x240
Order #: E8-PRO
Mfg #: 13303-0302
Product Highlights
The FLIR E8 Pro is your must-have tool for locating and diagnosing electrical, mechanical, and building problems. Quickly pinpoint hot spots and easily identify problems with vibrant thermal imagery supported by FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement. Your inspections will be more efficient because you can do all your work from the touchscreen: organize your photos, add detailed notes, and upload them directly to the FLIR Ignite cloud for convenient access from any device. When you’re ready to share images and create client reports, your images and notes are already available for your use in FLIR Ignite or FLIR Thermal Studio for the most streamlined experience.
QUICKLY IDENTIFY PROBLEMS
FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement provides highly detailed thermal images to help you quickly recognize where a problem is located.
DO IT ALL FROM THE TOUCHSCREEN
Organize your photos, add detailed notes, and upload them directly to the FLIR Ignite cloud for convenient access from any device.
STREAMLINE SHARING AND REPORTING
Share images easily and create advanced client reports in FLIR Ignite or FLIR Thermal Studio.
MSX® Image Enhancement
All Ex-Series thermal cameras feature FLIR's unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera's LCD.
Save Time With 1-Touch Level/Span
1-Touch Level/Span allows you to choose a small area of focus in a thermal image - with one touch of the screen - and the camera will auto-adjust the level and span based on the thermal contrast at that spot in the image. The result: time saved on manual adjustments.
NFPA 70B Compliant - Delta T Measurement Tools
With NFPA 70B compliant Delta T measurement tools now built into Ex-Series cameras (Box1 Max - Spot1 Max, and Box1 Max - Atmosphere Temperature), you can save a lot of time by calculating ∆T on the camera without any additional steps.
Efficient Inspections at Your Fingertips
Add notes from the touchscreen
Featuring a 3.5-inch touchscreen, the FLIR Ex-Series allows you to add detailed annotations to images and save them to the cloud, making it simple to create reports.
Hassle-Free Data Transfer and Sharing with FLIR Ignite
- Desktop Sync eliminates issues created by damaged or missing SD cards and USB cables
- Secure Data Sharing to trusted team for easy collaboration and reporting
- Edit Anywhere allows you or coworkers to create reports on mobile devices, on a browser or desktop
- IR Resolution: 320 × 240 (76,800 pixels)
- Thermal Sensitivity/NETD: <0.04°C (0.07°F) / <40 mK at 30°C (86°F)
- Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
- Field of view (FOV): 33°
- Digital Camera: 5 MP
- Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Digital camera
- Display: 3.5 in, 640 × 480 color LCD
- Storage Media: Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)
- Color Palettes: Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
- Detector Type: Uncooled microbolometer
- Digital Camera: 5 MP
- Field of view (FOV): 33°
- Focus: Focus free
- Gallery: Thumbnails and custom folder structure
- Image Frequency: 9 Hz
Each Unit Includes
- Infrared camera
- hard transport case
- battery (inside camera) + extra battery
- tabletop charger
- power supply (with EU, UK, US and AU plugs)
- micro USB adapter
- FLIR Thermal Studio Starter
- printed documentation
Professional Reports that Help Your Customer and Your Business
The right image analysis and reporting software can greatly improve your business by making it easier for your customers to understand the problem and feel confident that you fixed it.
The FLIR Ignite cloud service allows you to back up images directly to the cloud, organize and edit files, and create simple reports. And for advanced editing and reporting, there's FLIR Thermal Studio Suite: a desktop software offering batch processing, feature-rich measurement tools, and customized reports.
Over-the-Air Updates Keeps Your Camera Current
With Over-the-air (OTA) updates, your FLIR camera will always have the latest firmware, bug fixes, and features. When you connect your camera to the internet, it will automatically search for firmware updates.
Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.
- FLIR T911093 Tool Belt for EX Series Thermal ImagersTool Belt for EX Series Thermal Imagers
Order #: T911093
Mfg #: T911093
Availability: Call for availability$79.79 - FLIR T198531 Battery Charger for Ex SeriesBattery Charger for Ex Series
Order #: T198531
Mfg #: T198531
Availability: Call for availability$207.19 - FLIR T198532 Car Carger for Cx Series, USB MicroCar Carger for Cx Series USB Micro
Order #: T198532
Mfg #: T198532
Availability: Call for availability$96.59 - FLIR T199362ACC Spare Battery for Ex SeriesSpare Battery for Ex Series
Order #: T199362ACC
Mfg #: T199362ACC
Availability: Call for availability$79.79 - FLIR T911689ACC Pouch Case for Exx SeriesPouch Case for Exx Series
Order #: T911689ACC
Mfg #: T911689ACC
Availability: Call for availability$118.99
IR Resolution | 320 × 240 (76,800 pixels) |
Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
Field of view (FOV) | 33° |
Digital Camera | 5 MP |
Image Modes | Thermal MSX, Thermal, Picture-in-Picture, Digital camera |
Display | 3.5 inches 640 × 480 color LCD |
Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
Imaging & Optical | |
---|---|
Color Palettes | Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC |
Detector Type | Uncooled microbolometer |
Digital Camera | 5 MP |
Field of view (FOV) | 33° |
Focus | Focus free |
Gallery | Thumbnails and custom folder structure |
Image Frequency | 9 Hz |
Image Modes | Thermal MSX, Thermal, Picture-in-Picture, Digital camera |
IR Resolution | 320 × 240 (76,800 pixels) |
Minimum Focus Distance | 0.36 m (1.18 ft) |
Spectral Range | 7.5 to 13 µm |
Measurement & Analysis | |
Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
Delta T | Yes, NFPA 70B compliant |
Isotherm | Above alarm, below alarm |
Measurements correction | Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation |
Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) in two ranges |
Spot Meter | Center spot; box with min./max. |
User Interface | |
Display | 3.5 inches 640 × 480 color LCD |
Text | Text annotation on image using onscreen keyboard |
Touchscreen | Capacitive touch |
Power | |
Battery operating time | 4 hours |
Battery Type | Rechargeable Lithium ion battery |
Charging system | Battery is charged inside the camera or in specific charger. |
Charging Time | 2 hours |
Power Management | Automatic shut-down |
Environmental & Certifications | |
Certifications | UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC |
EMC | EN 301 489-1 EN 301 489-17 EN 61000-6-3 EN 61000-6-2 FCC 47 CFR Part 15 Class B |
Encapsulation | IP54 (IEC 60529) |
Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
Shock | 25 g (IEC 60068-2-27) |
Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
Vibration | 2 g (IEC 60068-2-6) |
General | |
Flashlight | Bright LED |
List of Contents | Infrared camera, hard transport case, battery (inside camera), power supply (with EU, UK, US and AU plugs), FLIR Thermal Studio Starter, and printed documentation |
Packaging Size | 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in) |
