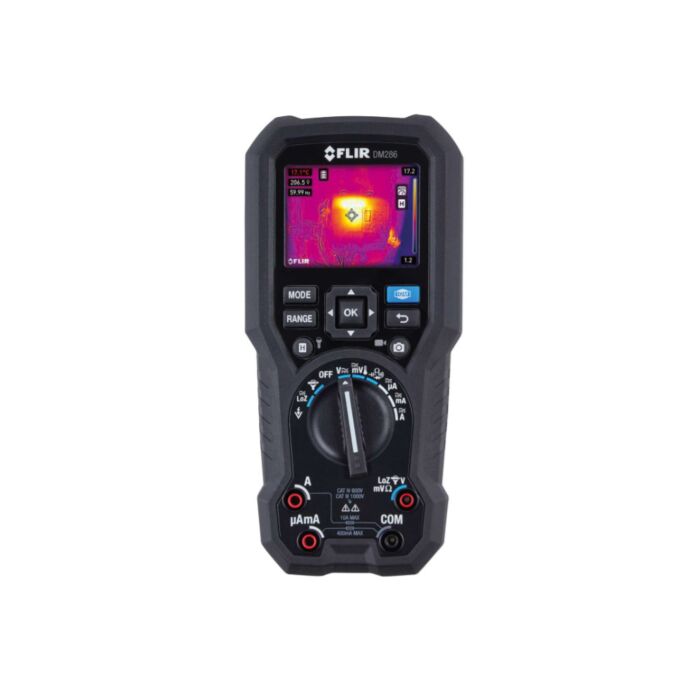

FLIR DM286 Industrial Thermal Imaging Multimeter with METERLiNK

Industrial Thermal Imaging Multimeter w/METERLiNK

Order #: DM286

Mfg #: DM286

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,498.50

Availability: Ships in 3-4 weeks

Choose Your Options:

New Purchase Calibration

None

Accredited Calibration with Data + $863.00

Accredited Calibration with Data & Uncertainties + $1,038.00

Add Calibration

Qty

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Overview

Product Highlights

The FLIR DM286 industrial imaging multimeter is the ultimate tool for electrical inspectors seeking a safe, accurate, and efficient way to identify, document, and share findings. With IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging), you can safely identify where hazards might be before contact is ever made. The powerful multimeter can capture and store up to 30,000 images and 100 log files, with the ability to record thermal and visual video clips. Stream live data in real time from the DM286 to your mobile device. Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.

Perform Safe, Accurate & Quick Inspections

Safely locate potentially dangerous problems without direct contact using FLIR IGM. MSX gives you

Purpose Built for All Day Operation

The FLIR DM286 comes with a built-in LED worklight for better visibility in dark or poorly lit areas, two rechargeable Lithium Polymer battery packs for all-day operation, and a 2 m drop test rating for durability.

Unmatched Connectivity

Use the FLIR METERLiNK app to quickly and efficiently capture and compare readings, analyze and share radiometric images and videos, and create reports.

Specifications

Imaging & Optical
IR Resolution	160 x 120 (19,200 pixels)
Display Counts	6000
AC/DC Voltage	1000 V AC RMS ±(1.0%+3) 1000 V DC ±(0.09%+3)
AC/DC Amps	10.00 A AC RMS ±(1.5%+3) 10.00 A DC ±(1.0%+3)
Connectivity	Bluetooth BLE
Color Palettes	Iron, rainbow, arctic, white hot, and black hot
Field of view - visual	71° x 56°
Focus	Fixed
Frame Rate	9 Hz
Image Modes	Thermal MSX (Multi Spectral Dynamic Imaging) Thermal Camera only Digital Camera only
IR Resolution	160 x 120 (19,200 pixels)
IR Sensitivity	150 mK (0.15°C)
Spectral Response	8-14 µm
Thermal Imaging Detector	FLIR Lepton® microbolometer
Visual Focus and FOV	Fixed focus, 71° x 56° FOV
Visual Resolution	2 MP (1600 x 1200 pixels)
Measurement & Analysis
AC/DC Amps	10.00 A AC RMS ±(1.5%+3) 10.00 A DC ±(1.0%+3)
AC/DC LoZ V	1000 V AC RMS or 1000 V DC ±(1.3%+4)
AC/DC mVolt	AC 600.0 mV ±(1.0%+3) DC 600.0 mV±(0.2%+3)
AC/DC Voltage	1000 V AC RMS ±(1.0%+3) 1000 V DC ±(0.09%+3)
Calibration Cycle	Once per year, recommended
Capacitance	10.00 mF ±(4.0%+5)
Contact Temperature Type K thermocouple	-40°C to 400°C DMM ± (1.0% + 3°C) / IGM ± (1.0% + 5°C) (-40°F to 752°F DMM ± (1.0% + 5.4°F) / IGM ± (1.0% + 9°F)
Continuity check threshold	10-100Ω
Diode Test	1.500 V ± 0.9%
Display Counts	6000
Frequency Counter	100.00 kHz ±(0.1%+5)
Measuring Rate	3 samples per second
Resistance	6.000 MΩ ±(0.9%+5), 60.00 MΩ ±(3.0%+5)
Temperature Accuracy	±3°C (5.4°F) or ± 3% of the reading (whichever is greater) for temperatures > 25°C (77°F) ±5°C for temperatures -10°C to 25°C (14°F to 77°F)
Temperature Range	-5°C to 300°C (23°F to 572°F)
Temperature Resolution	0.1°C (0.1°F)
Thermal Sensitivity	150 mK (0.15°C)
VFD	AC V: 1000 V AC RMS, ±(1.3%+4) at 45~65 Hz
Communication & Data Storage
Connectivity	Bluetooth BLE
Image File Format	Radiometric
Storage	40,000 readings per memory set
Storage Media	eMMC 4GB
Stored Image Capacity	up to 30,000
Video Recording	50 minutes maximum duration 20 seconds max duration for file transmission
User Interface
Display	2.8"
Display Brightness	High, Medium, Low
Power
Auto Power Off	For Meter: set to OFF, 2, 5, or 10 minutes For Worklight only: set to OFF, 5, 15, or 30 minutes
Battery	TA04, Lithium Polymer Rechargeable, 3050 mAh. Two supplied.
Battery Life	Approx. 6.5 hours in IGM mode with display brightness set to medium. Approx. 10 hours in Multimeter mode (medium brightness)
Non_Contact Voltage Detector [NCV]	Yes
General
Dimensions (L x W x H)	20 cm x 9.6 cm x 5.6 cm (7.9 in x 3.8 in x 2.2 in)
Included	1 x DM286 Industrial Thermal Imaging Multimeter 1 set of CATIV 600V Test Lead 1 set of CATIV 600V Alligator Clip 1 x Type-A to Micro-USB Cable (with Data transfer capability) 1 x K-type Thermocouple (-30°C to 260°C) 1 x Soft-sided carrying case 1 x FLIR Quick Start Guide 1 x FLIR Warranty Card 2 x TA04 Rechargeable Battery Cell
Weight	569 g (1.25 lb) without battery (approx.)
Worklights	x1 LED
Environmental & Certifications
Certifications	ETL, FCC, CE, RCM, UKCA, FDA, EN60825, EN50689
Drop test	2 m (6.6 ft)
EMC	EN61326-1
Emissivity Settings	0.10 to 1.00 (default is 0.95); select from four presets or set manually.
IP Rating	IP40
Laser Pointer Power	≤0.39 mW
Laser Type	Class I (red)
Laser Wavelength	640 nm to 660 nm
Operating Altitude	2000 m (6560 ft)
Operating Temp & Humidity	-10°C to 30°C (14°F to 86°F), <85% RH 30°C to 40°C (86°F to 104°F), <75% RH 40°C to 50°C (104°F to 122°F), <45% RH
Pollution Degree	2.0
Safety	IEC 61010-1 CAT IV - 600 V, CAT III - 1000 V
Storage temperature and relative humidity [RH]	-20°C to 60°C (-4°F to 140°F), 0-80% RH (without batteries)
Accessories
Software	FLIR METERLiNK® app
