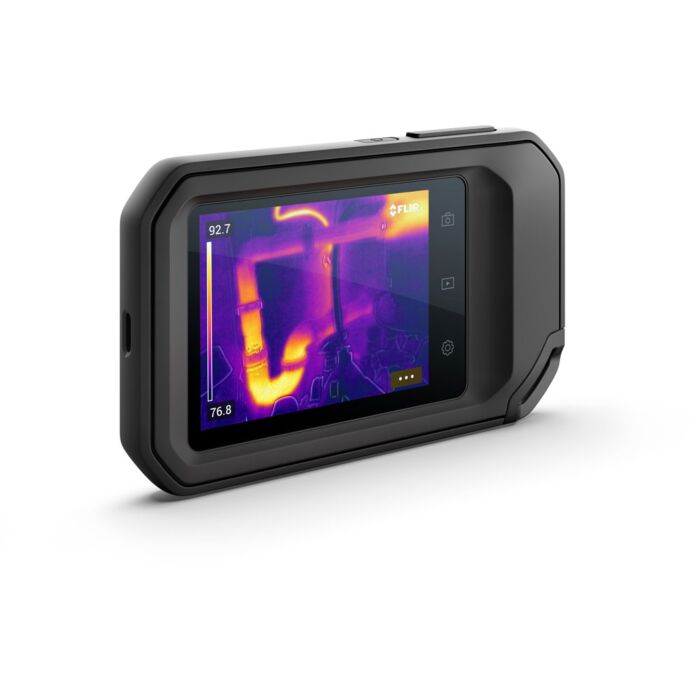

FLIR C3-X Compact Thermal Camera, 128 x 96
Compact Thermal Camera 128 x 96

Order #: C3-X

Mfg #: 90501-0201

Questions about availability or need help? Contact Us:

(800) 633-0561
$768.60

FLIR C3-X Compact Thermal Camera, 128 x 96

Compact Thermal Camera 128 x 96

Order #: C3-X

Mfg #: 90501-0201

$768.60
Availability:
In stock
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.

Identify and troubleshoot: Quickly find hidden faults and reduce diagnostic time with MSX and 128 × 96 true thermal imaging

Document and share: Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers

Rugged, reliable, compact: Take the pocket-portable C3-X with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop

  • IR Resolution: 128 × 96 pixels
  • Thermal Sensitivity/NETD: <70 mK
  • Accuracy: 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)]
  • Field of view (FOV): 53.6°
  • Digital Camera: 5 MP resolution
  • Image Modes: Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
  • Storage Media: Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
  • Auto orientation: Yes
  • Camera software update: Automatic over Wi-Fi, USB via computer
  • Color: Black
  • Color Palettes: Iron, Gray, Rainbow, Rainbow HC
  • Detector Pitch: 12 µm
  • Detector Type: Focal plane array, uncooled microbolometer
  • Digital Camera: 5 MP resolution
  • Digital Camera FOV: 71.5° × 56° (84° diagonal)
  • Digital Zoom: No
  • Display resolution: 640 × 480 pixels
  • Field of view (FOV): 53.6°
  • f-number: 1.1
  • Focus: Focus free
  • Gallery: Thumbnails and custom folder structure
  • Image Frequency: 8.7 Hz
  • Image Modes: Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)

Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.

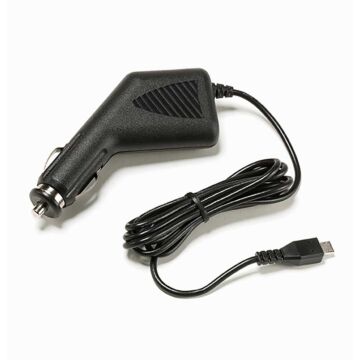

  1. FLIR T198532 Car Charger for CX Series USB Micro
    FLIR T198532 Car Carger for Cx Series, USB Micro
    Car Carger for Cx Series USB Micro

    Order #: T198532

    Mfg #: T198532

    Availability: Ships in 3-4 weeks
    $96.59

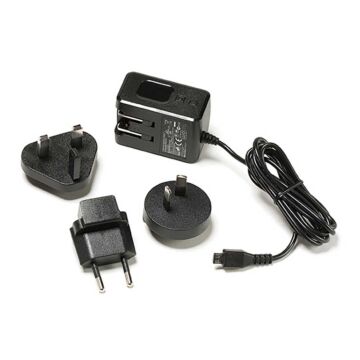

  2. FLIR T198534 Power Supply for Ex Series USB Micro
    FLIR T198534 Power Supply for Ex Series, USB Micro
    Power Supply for Ex Series USB Micro

    Order #: T198534

    Mfg #: T198534

    Availability: Ships in 3-4 weeks
    $76.99
Overview C3-X
IR sensor 128 x 96 (12,288 pixels)
Thermal sensitivity/NETD <70 mK
Field of view (FOV) 53.6°
Minimum focus distance Thermal: 0.1 m (3.94 in)
MSX®: 0.3 m (11.8 in)
Image frequency 8.7 Hz
Focus Focus free
Spectral range 8-14 µm
Screen size 3.5 in
Digital camera 5 MP
Digital camera focus Fixed
Image Presentation
Image adjustment Automatic level and span
Manual level and span
Image modes Infrared image
Visual image
MSX (Embossed visual details on thermal image)
Picture-in-picture (IR area on visual image)
Gallery Thumbnails and custom folder structure
Color palettes Iron
Gray
Rainbow
Rainbow HC
Auto orientation Yes
Touch screen Capacitive touch
Measurement & Analysis
Object temperature range -20 to 300°C (-4 to 572°F)
Accuracy 0 to 100°C (32 to 212°F): ±3°C (±5.5°F)
100 to 300°C (212 to 572°F): ±3%
[Ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)]
Measurement functions Spot
Box with max./min.
Measurement correction Emissivity; matt/semi-matt/semi-gloss + custom value
Reflected apparent temperature
Atmospheric compensation
Image Storage
Storage Media Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
Image storage capacity >5000 images
Image file format Standard JPEG, 14-bit measurement data included
Communication & Connectivity
Wi-Fi 802.11 a/ac/b/g/n (2.4 and 5 GHz)
USB USB 2.0, Type-C connector
Bluetooth® PAN
Image upload Directly upload images to FLIR Ignite cloud library and services
Additional Information
Battery type Rechargeable built-in Lithium ion battery
Battery operating time 4 hours
Charging system USB-C (1 A)
Charging time 2 hours
External power operation 5 V, USB-C
Operating temperature range -10 to 50°C (14 to 122°F)
Storage temperature range -40 to 70°C (-40 to 158°F)
Encapsulation Camera housing and lens: IP54 (IEC 60529)
Drop test Designed for 2 m (6.6 ft)
Weight (including battery) 0.19 kg (0.42 lb)
Size (L x W x H) 138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
Tripod mounting (built-in) UNC 1/4"-20
