Order #: E76-42-14
Mfg #: 78517-1101

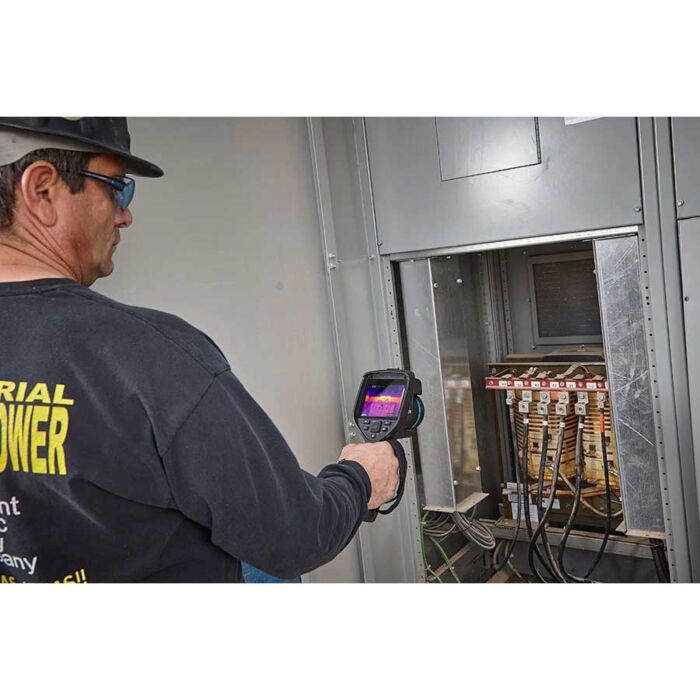

FLIR E76 Thermal Camera, 42 + 14 degree Lens, 320x240
Order #: E76-42-14
Mfg #: 78517-1101
Product Highlights
The FLIR E76 offers complete coverage of near and distant targets through a range of lens options. A step up from the FLIR E54, the E76 includes laser-assisted autofocus and 3 area measurement boxes. The 320× 240 thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E76 images directly from the camera to the cloud for easy, secure storage and sharing.
- IR Resolution: 320 × 240 pixels
- Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
- Accuracy: ±2°C (±3.6°F) or ±2% of the reading
- Digital Camera: 5 MP, with built-in LED photo/video lamp
- Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Storage Media: Removable SD card
- Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Detector Type and Pitch: Uncooled microbolometer, 17 µm
- Digital Camera: 5 MP, with built-in LED photo/video lamp
- Digital Zoom: 1-4× continuous
- f-number: 1.3
- Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Image Frequency: 30 Hz
- IR Resolution: 320 × 240 pixels
Each Unit Includes
- Infrared camera with lens
- 2 batteries
- battery charger
- hard transport case
- lanyards
- front lens cap
- power supplies
- printed documentation
- SD card (8 GB)
- cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
- License card: FLIR Thermal Studio Starter
Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.
