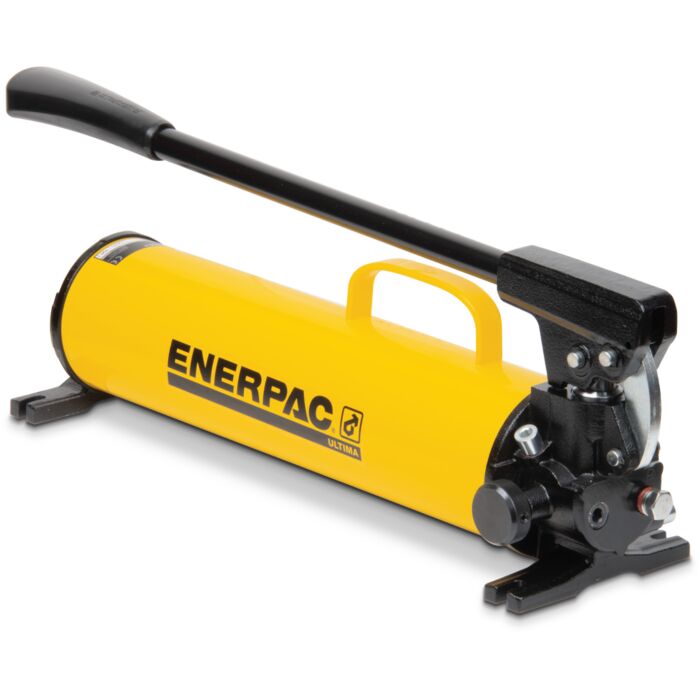

Enerpac P80 ULTIMA Steel Hydraulic Hand Pump, 134 in3 Oil, 2 speed
Order #: P80
Mfg #: P80
Product Highlights
Two Speed, ULTIMA Steel Hydraulic Hand Pump, 134 in3 Usable Oil, Single Acting Compatible
Ultima Steel Hand Pumps are durable, portable, and highly efficient. Each model in the series features an all-steel construction, a chrome plated plunger, and a wiper system for long-lasting performance.
All except the P39 are 2 stage pumps, which reduces the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal for applications when high flow is needed at the first stage, (such as when advancing a cylinder to the point of load contact). The pump switches automatically to the second stage which is the low flow high-pressure stage.
With a choice of oil capacities up to 453 in3 (7423 cm3), you will find Ultima Steel Hand Pumps that can handle multiple cylinder hook-ups, including models to suit either single-acting and double-acting cylinders.
- Reduced handle effort and ergonomic grip for less operator fatigue
- Vent free reservoir eliminates spills
- Quick grip handle allows for easy transport
- Integral reservoir over-pressurization protection
| Maximum Operating Pressure (psi) | 10,000 |
| Pressure Rating (psi) 1st Stage | 500 |
| Pressure Rating (psi) 2nd Stage | 10,000 |
| Cylinder Compatability | Single-acting |
| Pump Type | Two Speed |
| Reservoir Capacity (in3) | 134 |
| Usable Oil Capacity (in3) | 134 |
| Maximum Flow at Rated Pressure | .15 in3/stroke |
| Oil Displacement per Stroke (in3) 1st Stage | 1 |
| Oil Displacement per Stroke (in3) 2nd Stage | 0.15 |
| Maximum Handle Effort (lbs) | 77 |
| Piston Stroke (in) | 1 |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight (lbs) | 24 |
