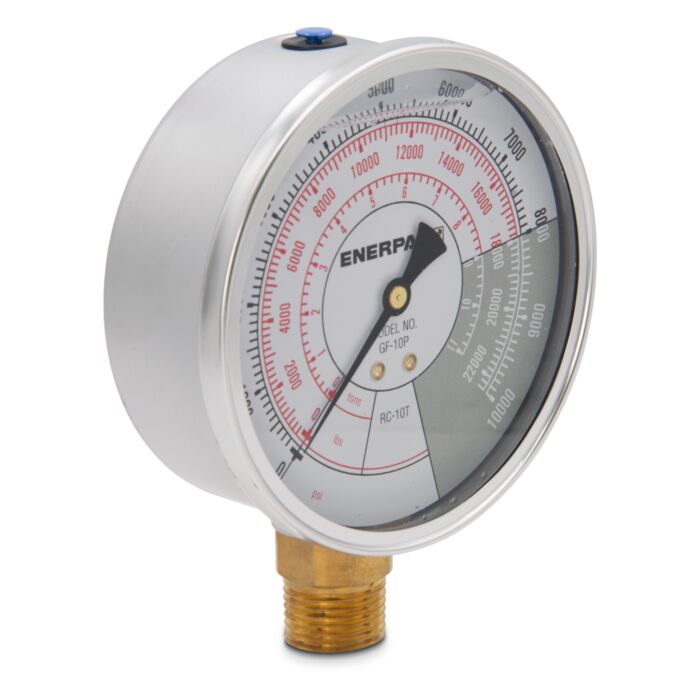

Enerpac GF10P Hydraulic Force and Pressure Gauge, Imperial Scale
Hydraulic Force and Pressure Gauge, Imperial Scale
Order #: GF10P
Mfg #: GF10P
$702.00
Enerpac GF10P Hydraulic Force and Pressure Gauge, Imperial Scale
Hydraulic Force and Pressure Gauge, Imperial Scale
Order #: GF10P
Mfg #: GF10P
Product Highlights
Hydraulic Force and Pressure Gauge, Imperial Scale, for use with 10 ton Cylinders
GF-Series gauges are calibrated with dual scales for reading for pressure and force.
The force readings allow you to measure external loads, such as those supported by a cylinder or jack, or the force used for pressing parts.
The glycerin within the gauge protects pressure sensing parts from vibration, sudden changes in pressure and from moisture.
The GF-Series Gauges feature a 4" (100 mm) diameter face for easy readability, and a stainless-steel casing for corrosion resistance.
- Excellent readability; 4 inch diameter gauge face.
- Fast, easy installation
- Stainless steel gauge cases for corrosion resistance
- Calibrated with dual scale reading for psi and bar
| Maximum Operating Pressure (psi) | 10,000 |
| Style | Glycerine Filled |
| Face Diameter (in) | 4 |
| Accuracy Percentage of Full Scale | 1 |
| Force (lbs) | 0 - 22,200 |
| Force (imperial tons) | 0 - 11 |
| Units Per Division | 100 psi, 200 lbs, .2 ton |
| Mount | Lower Mount |
| Gauge Compatibility | All 10 ton RC, RSM, RCS, RR, RW Cylinders |
| Thread (in) | 1/2 NPTF |
| Required Gauge Adaptor | GA1, GA2 |
| Cylinder Series Compatibility | RC, RSM , RCS, RR, RW |
