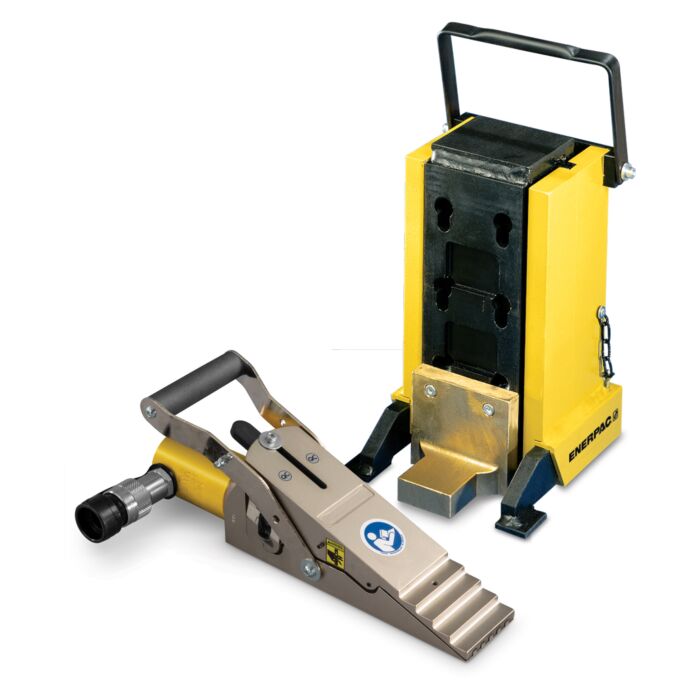

Enerpac LW16 Vertical Lifting Wedge, 0.83 in Lifting Height, 16 Ton

Product Highlights

16 Ton, Vertical Lifting Wedge, 0.83 in Lifting Height

Choose the LW-Series Vertical Lifting Wedge when you need to lift and lower heavy loads of up to 16-tons with a stable motion without slippage. A minimum insertion gap of 0.39" (10 mm) is needed which expands up to 2.02" (51.5 mm). Retraction force is supplied by the single-acting spring return cylinder. The maximum operating pressure is (10000 psi 700 bar).

The included SB2 stepped safety block provides reassuring support, and can also be used to increase the lifting height to 2.72" (69 mm). The LWB1 is a larger stepped block available as an option.

A compatible hydraulic pump is needed to operate the LW16. The Enerpac P392 Hand Pump, or the P392FP Foot Pump are ideal.

Alternatively, choose the LWC16 Vertical Lifting Wedge, which includes an integrated hand pump.
