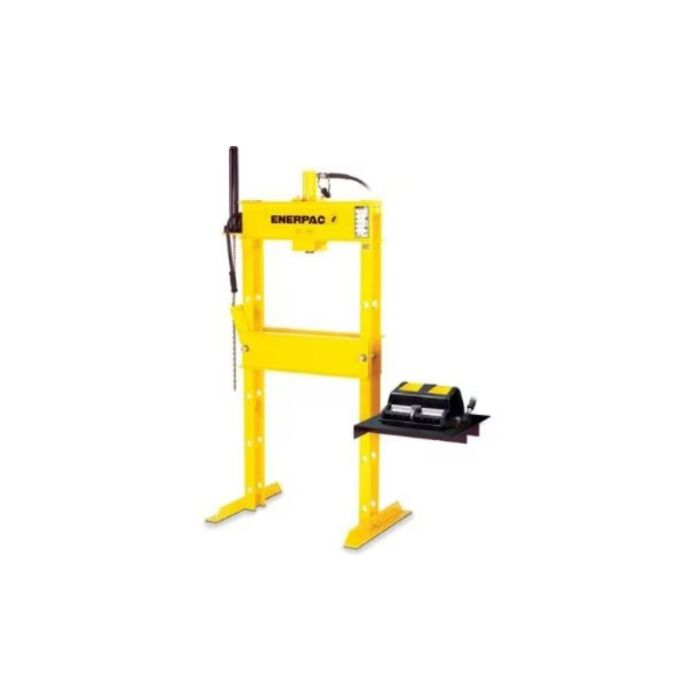

Enerpac IPA1220 H-Frame Hydraulic Press with RC1010 and XA12, 10 Ton

Enerpac IPA1220 H-Frame Hydraulic Press with RC1010 and XA12, 10 Ton

Order # IPA1220

Mfg # IPA1220

call-regular 800-828-1470
$6,458.37
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications

Enerpac IPA1220 H-Frame Hydraulic Press with RC1010 and XA12, 10 Ton

Order # IPA1220 | Mfg # IPA1220
$6,458.37
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

10 Ton, H-Frame Hydraulic Press with RC1010 Single-Acting Cylinder and XA12 Air Pump

  • Quality welded frame for maximum strength and long life
  • Exclusive "Hydra-Lift™" bed for effortless adjustment of the vertical daylight (10-ton models are manual)
  • Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton, and 30-ton are manual)
  • All models in the Quick Selection Chart have been matched to a pump, cylinder, hoses and gauge, offering the complete package

Technical Resources

Enerpac IP Series Datasheet

Specifications

Maximum Operating Pressure (psi) 10,000
Capacity Class (imperial tons) 10
Maximum Vertical Daylight (in) 40
Maximum Bed Width (in) 18.63
Power Source Type Air
Power Source Valve Manual
Pump Model Number XA12
Cylinder Model Number RC1010
Cylinder Type Single-Acting, Spring Return
Cylinder Stroke (in) 10
Rapid Advance Speed (in/sec) 2.2
Pressing Speed (in/sec) 13.4
Weight (lbs) 160
