Order #: HC9206Q
Mfg #: HC9206Q

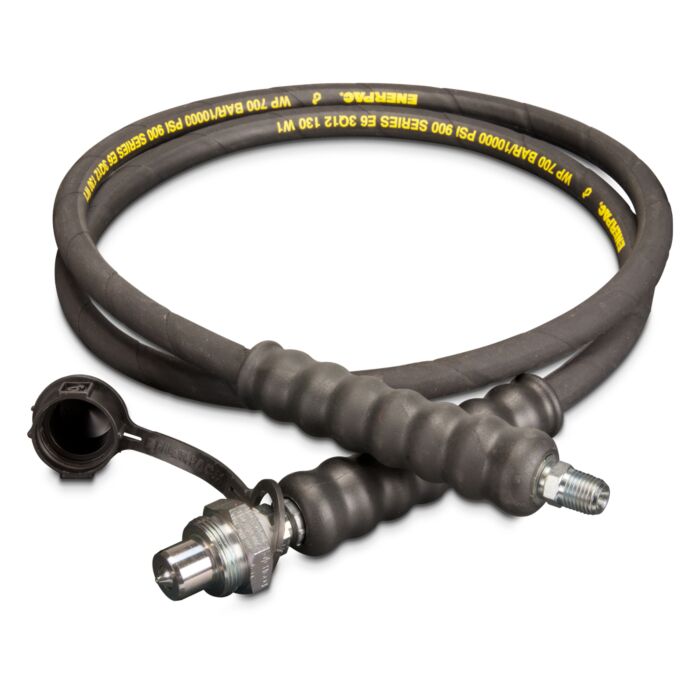

Enerpac HC9206Q Heavy-duty Rubber High Pressure Hydraulic Hose, 6'
Order #: HC9206Q
Mfg #: HC9206Q
Product Highlights
6 ft., Heavy-duty Rubber High Pressure Hydraulic Hose, .25 in. Internal Diameter
H900-Series Hydraulic Hoses are designed to comply with the Material Handling Institute IJ100 hose specification. They provide the durability needed for repeated heavy-duty high-pressure applications and offer the optimum combination of flexibility and low 'memory' needed for long hose runs.
Each hose contains two layers of steel wire braids covered by a rubber sleeve to ensure a long life in tough working environments.
Internal diameters available are 0.25 and 0.38" (6.4 and 9.7mm). Connection types available are 1/4" NPTF, 3/8" NPTF, and CH604.
A variety of lengths are available up to 50 ft (15 m), and the vinyl strain relief guard on both ends of hose helps improve durability and hose life.
- Crimped-on rubber strain relief for improved life and durability
- Maximum working pressure of 10,000 psi
- Rubber coated with two layers of steel wire braids
- Designed to comply with Material Handling Institute IJ-100 hose specification
- Flexible, with little memory, is the best choice for long hose runs
Maximum Operating Pressure (psi) | 10,000 |
Internal Diameter (in) | 0.25 |
End One Coupler | 1/4" NPTF |
End Two Coupler | CH604 |
Oil Capacity (in3) | 3.54 |
Hose Oil Capacity (in3) | When using long hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for .25" internal diameter hoses: Capacity (in3) = .5892 x Length (ft) |
Length (ft) | 6 |
Weight (lbs) | 3 |
-
