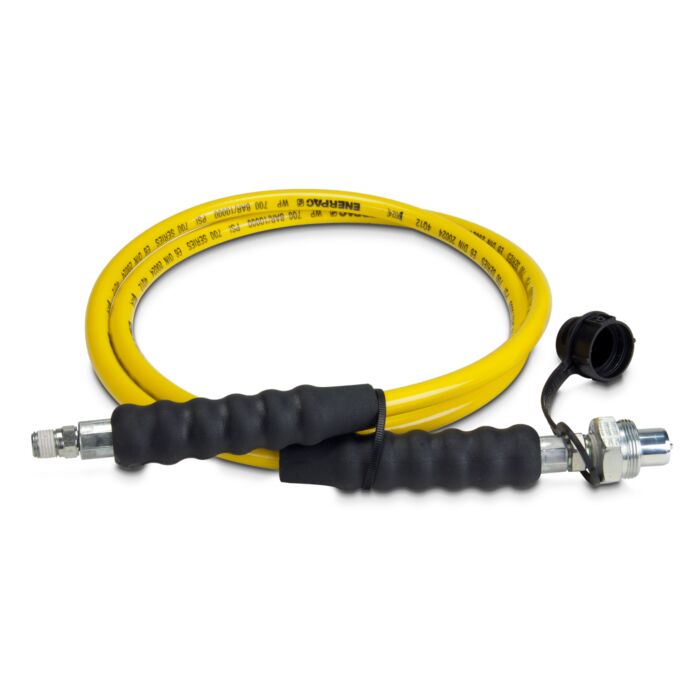

Enerpac HC7206Q Thermo-Plastic High Pressure Hydraulic Hose, 6'
Thermo-Plastic High Pressure Hydraulic Hose, 6 ft
Order #: HC7206Q
Mfg #: HC7206Q
$302.40
Enerpac HC7206Q Thermo-Plastic High Pressure Hydraulic Hose, 6'
Thermo-Plastic High Pressure Hydraulic Hose, 6 ft
Order #: HC7206Q
Mfg #: HC7206Q
Product Highlights
6 ft., Thermo-Plastic High Pressure Hydraulic Hose, .25 in. Internal Diameter
H700-Series Hoses have a safety factor of 4:1 to provide the reassurance and reliability needed for demanding high-pressure applications.
Each hose contains two layers of steel wire braids covered by a polyurethane sleeve - providing the strength and abrasion resistance needed for repeated use in tough working environments.
Diameters available 0.25 and 0.38" (6.4 and 9.7mm), and connection types include 1/4" NPTF, 3/8" NPTF and CH604.
A variety of lengths are available up to 50 ft (15 m), and the vinyl strain relief guard on both ends of hose helps to improve hose life and durability.
- For demanding applications, featuring a 4:1 safety factor
- Maximum working pressure of 10,000 psi
- Outside jacket is polyurethane, to provide maximum abrasion resistance
- Exhibits low volumetric expansion under pressure to enhance overall system efficiency
- Vinyl strain relief guard on both ends of hose to improve life and durability on all models.
| Maximum Operating Pressure (psi) | 10,000 |
| Internal Diameter (in) | 0.25 |
| End One Coupler | 1/4" NPTF |
| End Two Coupler | CH604 |
| Oil Capacity (in3) | 3.54 |
| Hose Oil Capacity (in3) | When using long hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for .25" internal diameter hoses: Capacity (in3) = .5892 x Length (ft) |
| Length (ft) | 6 |
| Weight (lbs) | 2.3 |
